600 Watt Output Power TEC Controller, Temperature Control Stability 0.01°C

$545.00
sku / item#: TC1540 v1.5 / TEC-CONTROLLER
ships: Request a Quote for Current Ship Date

Key Features
  • High Power 600 Watts Supports Peltier Elements Connected in Series
  • Includes GUI Virtual Control Panel for Simple / Fast Set-Up by USB
  • User Interface by USB, RS232, or Analog Signals Control
  • Works with all Thermistors / NTC sensors: ie 10kΩ
  • Temperature Control Stability: 0.01 °C
  • Ultra-Compact (L x W x H): 77 x 48 x 20 mm
Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL TC1540 v1.5 / TEC-CONTROLLER
PRICE $545.00
GENERAL SPECIFICATIONS
  • TEC Output Current: 0 to ±15 A
  • TEC Output Voltage: 0 to ±40 V
  • Output Power Range (P): 0 - 600 Watts
  • Works with all Thermistors / NTC sensors: ie 10kΩ
  • TEC Temperature Set Step: 0.01 °C
  • Temperature Control Range: 0 to +80 °C
  • Temperature Control Stability: 0.01 °C
  • TEC Temperature Set Point Steps: 0.01 °C
  • TEC Output Current Stability: <0.2 %
  • Adjustable TEC Output Current & Voltage Limits
  • Works in Stand-Alone Mode
  • Safety Interlock
  • Refer to Datasheet for Additional Specifications
User Interface
  • Analog Control Signals for Control by Voltage
  • RS-232 / UART / RS-485/ I2C
  • USB
  • LabView Drivers
  • Enable / Disable Input Signal Input
  • Free Control GUI / Software
DIMENSIONS AND POWER SUPPLY

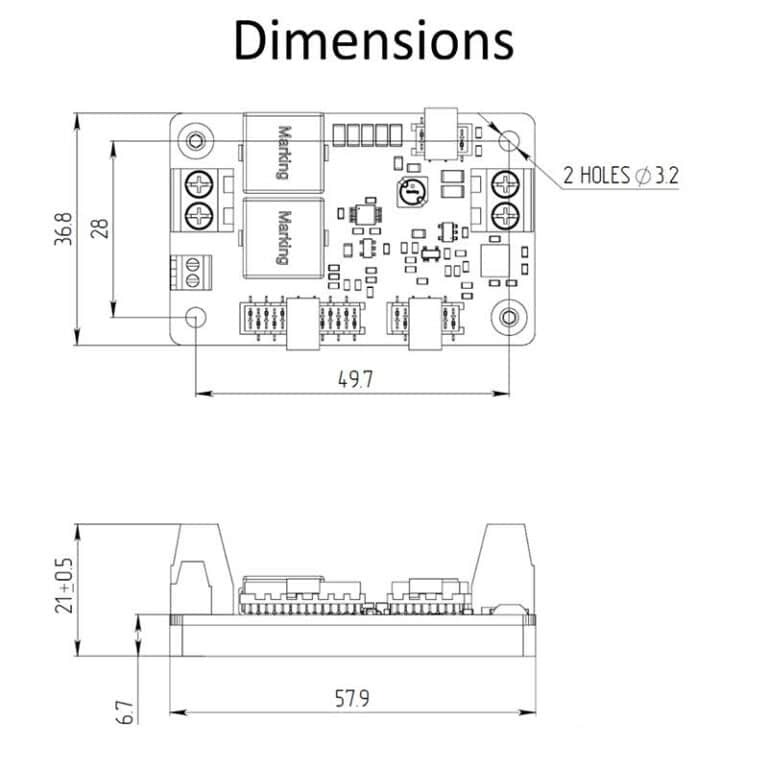

  • Dimensions (L x W x H): 77 x 48 x 20 mm
  • DC Supply Input Voltage Range (Vin): 12V to 48V

Product Overview:

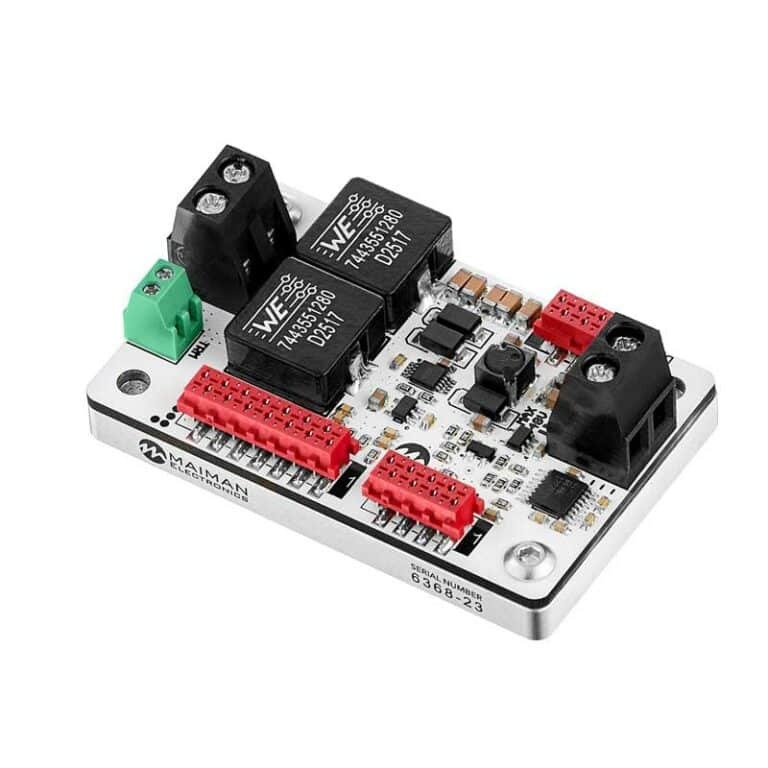

HIGH POWER TEC CONTROLLER

The model TC1540 v1.5 precision TEC controller offers high output power of 600 watts to enable control of multiple Peltier coolers connected in series or stand-alone high current / voltage Peltier coolers. These TEC controller modules offer a combination of high power and a very small footprint. They are designed to offer high electrical efficiency (up to 97%) and high power density. An aluminum base plate provides effective remove of heat from TEC controller. The base place can be mounted to an air-cooled or with the water cooled heat sink. The TC1540 controllers also offer multiple protection features to protect the Peltier cooling element from damage.

MULTIPLE USER INTERFACE METHODS

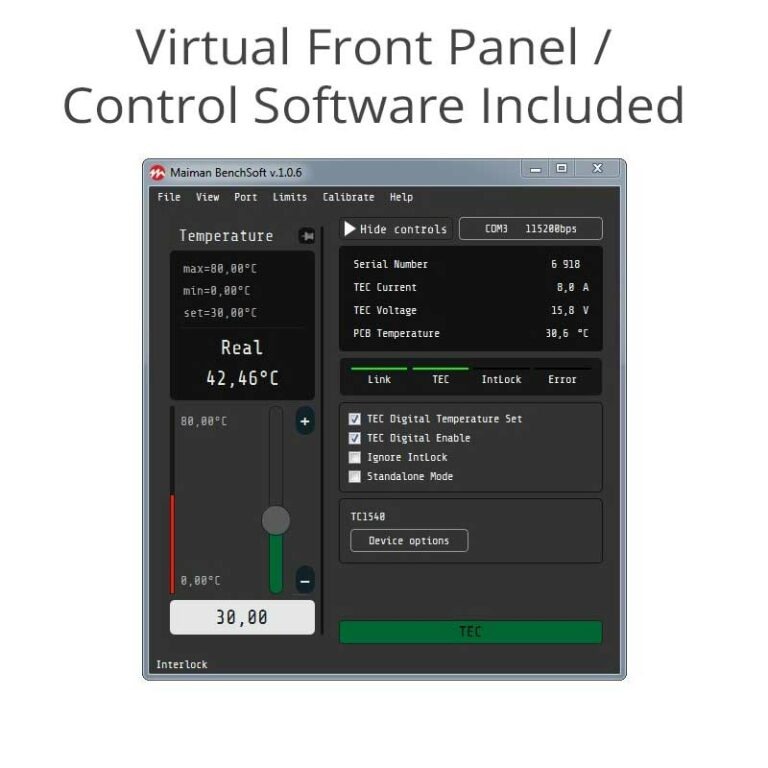

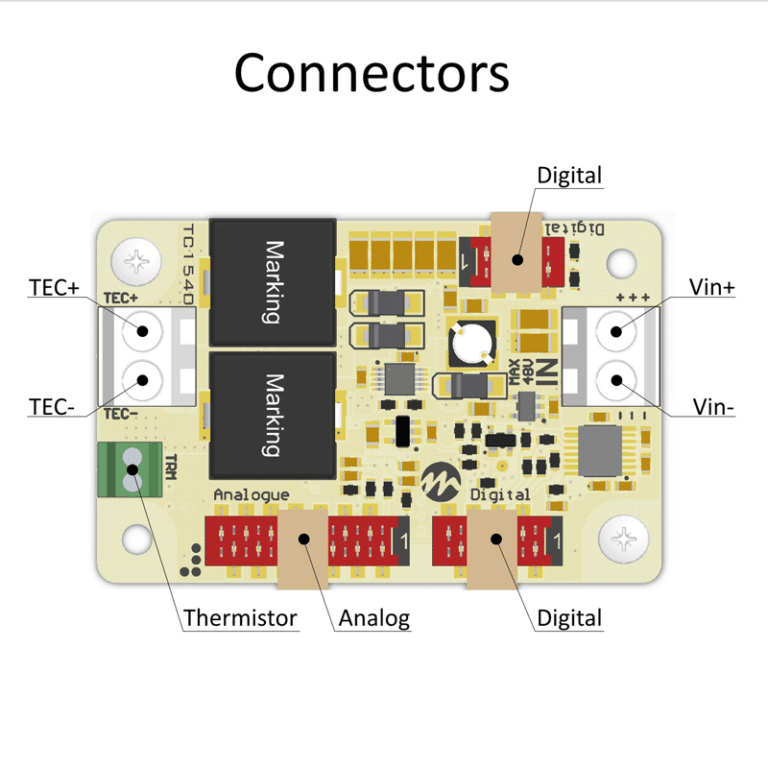

The TC1540 offers multiple methods for the user to set-up and operate the TEC controller. It has an analog signals control connector which allows the user to set and control temperature from a voltage signal. It also offers a digital signals control connector which offers RS232 as well as an included adapter which allows the user to connect to the controller by standard USB. Virtual control panel software is includes to provide fast, simple set-up and monitoring.
