ALL-INCLUSIVE / High Power Laser Diode Driver (13A / 23V Driver) + TEC Controller + Mount & TE Coolers

  • high power laser diode driver Model CCM-STD
  • CCM-STD Mounting Plates
  • high power laser diode driver

$3895.00
sku / item#: CCM-STD / DRIVER & MOUNT MODULE
ships: 2 weeks

Key Features
  • Current Source + TEC Controller + Integrated Laser Mount/Heat Sink
  • Includes TEC Based Cooling for Laser Diodes up to 150 Watts of Laser Output Power
  • Includes Mounting Plate and Heat Sink for Laser Diodes
  • Optimized for Fiber Coupled Multi-Emitter Pumps from AeroDIODE, II-VI, IPG, NLight, Lumentum, BWT, Coherent and LUMICS
  • USB and UART Interface
  • Offered by AeroDIODE, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL CCM-STD / DRIVER & MOUNT MODULE
PRICE $3895.00
Laser Diode Driver - Current Source
  • Current Range: 0 - 13 Amps
  • Compliance Voltage Range: 0 - 23 Volts
  • Current Stability: +/- 0.025% of Full Scale Set-Point Current
  • Laser Diode Set-Point Adjustment Resolution: 50 mA
  • Control Modes: ACC (constant current) and APC (laser output power feedback from photodiode)
  • Modulation Bandwidth: 100 kHz
TEC Controller
  • Temperature Control Range: 15 - 40 °C
  • Temperature Stability (typ): < 0.05 °C
  • TEC Output Power (max): 150 Watts
Modulation Bandwidth
  • Bandwidth: 100 kHz
  • Trigger: Internal or External
User Interface & Power Input
  • USB with GUI Software
  • UART
  • Includes Control Software Libraries : DLLs, Hexa, Labview VI (prov)
  • Recommended Power Supply : EA-PS 2042-20B (from Newark)
Dimensions
  • 238mm * 146mm * 142.5mm

Product Overview:

A Complete Solution for Mounting and Control of High Power Multimode Laser Diode Pumps

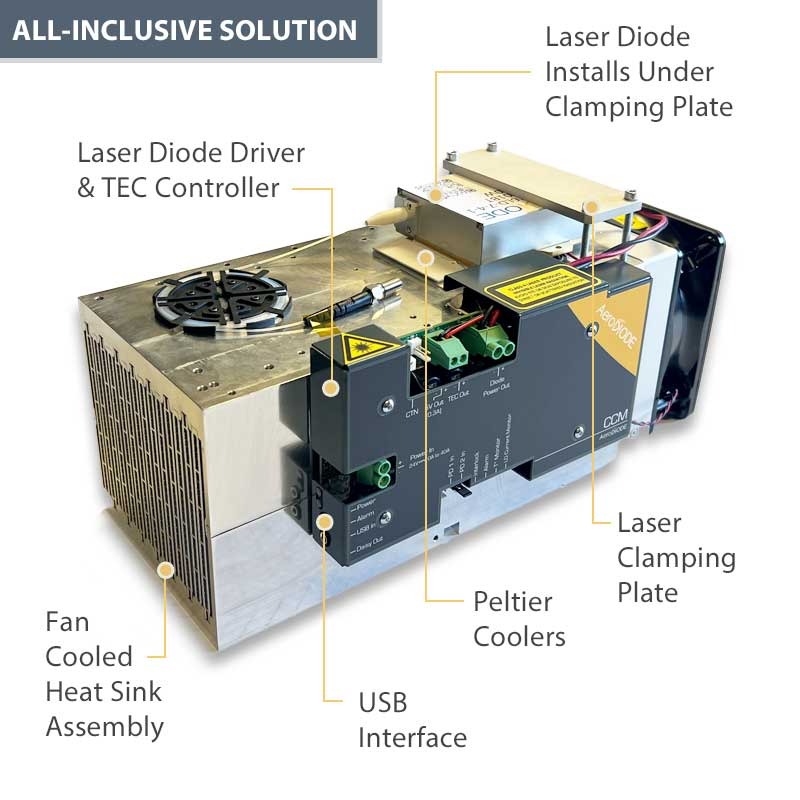

These High Power Laser Diode Driver and mount units are compatible with AeroDIODE laser diodes as well as fiber-coupled pumps from companies such as nLight, Lumentum, IPG, and Lumics. These units offer a complete control and mounting solution with a 13 Amp laser diode current source that offers up to 23V compliance voltage. They include the laser driver, the TEC controller, Peltier coolers, and and fan-cooled heat sink base. The integrated TEC elements under the mounting plate keep the temperature stable and remove the heat. The TEC power is optimized for high power pump laser diodes. This control and mounting module is used primarily for CW mode. But it is also able to deliver pulses which are generated internally by an on-board pulse generator, or on-demand from an external analog modulation signal. This control and mounting module is very compact and offers an excellent pre-configured solution for OEM integration into your high power laser system.

USB and Control Software

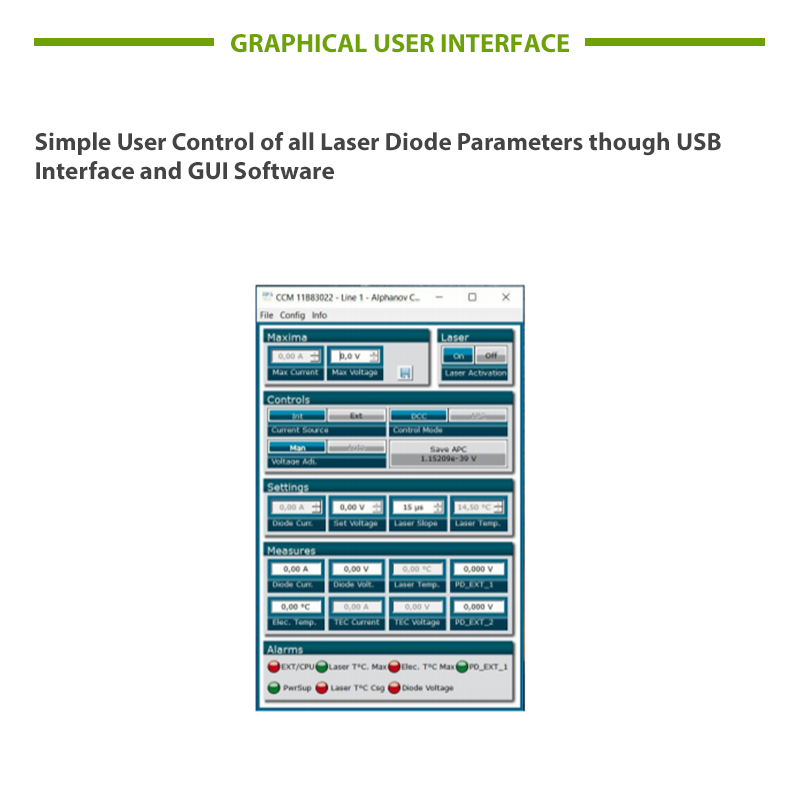

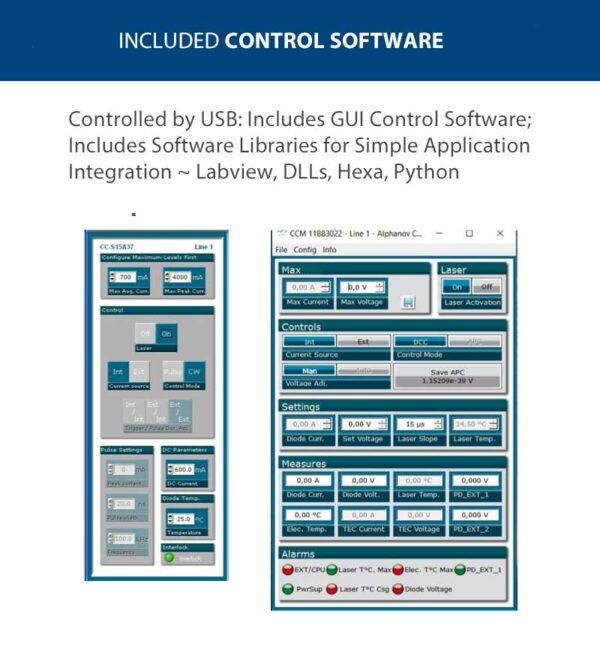

The user can set and monitor all of the control parameters of the laser diode using the USB input and the supplied GUI software. These units ship with the USB cable to connect your PC to the connector on the side panel. A simple to use single page menu graphical user interface allows you to control all of the pulse or CW parameters as well as set current and temperature limits. Other features of these control modules include a daisy chain output, sync output, alarm monitor and back facet monitor output to monitor the laser power.

Recommended Power Supply

This power supply is one that is recommended to use with this turn-key laser source system: Elektro-Automatik Benchtop Power Supply Model EA-PS 2042-20B. Other suitable models are available; please inquire for more suggestions.
