Home > Laser Diode Controllers - (Driver + TEC) > RedWave Labs > RLS / C154
$1395.00 sku / item#: RLS / C154 ships: 1 Week
- 250mA Laser Drive Current; Constant Current Mode Control
- Integrated Laser Mount with ZIF Socket,
Preconfigured for Nanoplus Butterfly Laser Diodes
- High Stability, Now Noise
- On-Board Controls and Inputs for Remote Controls
- Compact Form, Stand-Alone Operation
- Offered by RedWave Labs Ltd, a Laser Lab Source Marketplace Seller
- Sold & Supported in North America by: LaserDiodeControl.com, part of the Laser Lab Source Marketplace Group
Price and Delivery Quote
Buy Now / Add to Cart
Technical Questions for this ProductASK AN ENGINEER
Customers Also Considered:
|MODEL||RLS / C154|
|Laser Driver Specifications|
|TEC Controller Specifications|
|Power Input and Connectors|

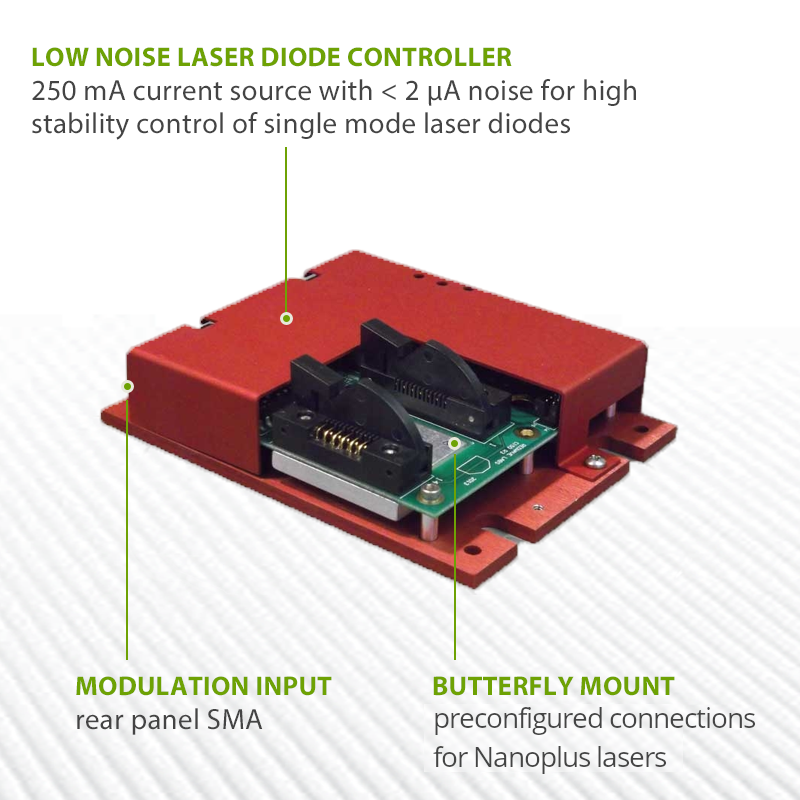

250 mA, Constant Current Laser Diode Controller Module

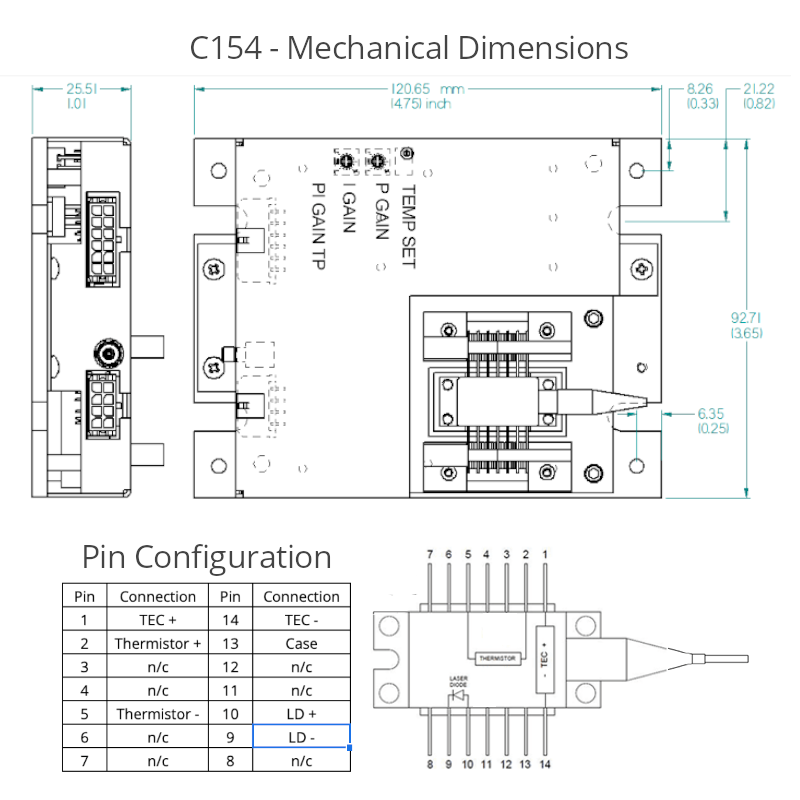

The C154 combines a constant-current mode laser diode driver and linear temperature controller in one compact and easy to use package. The on-board ZIF-socket mount is compatible with Nanoplus butterfly lasers, and other lasers that use the same pin configuration.
Straight-Forward Operation for Application Flexibility

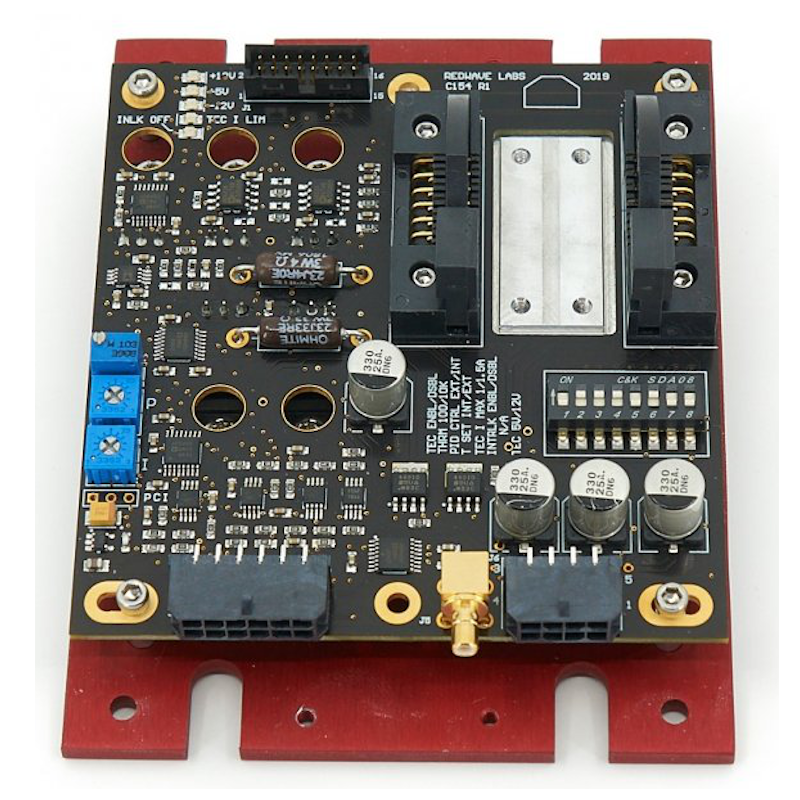

Operating the C154 is simple and straight-forward. Controller parameters are set with on-board potentiometers and DIP switches, and connections are provided for external control with analog and TTL signals.
The laser diode driver operates in constant-current mode, and provides low-noise current with a low temperature coefficient of change. The laser driver has an analog bandwidth of 250 kHz; fast TTL-compatible switching is provided via an SMB connector. The current limit is user adjustable, and is hardware limited to 250 mA. The factory can set the hardware limit for custom applications; please inquire for information.
The 12 Watt linear TEC controller is regulated by a built-in PI control loop, or can be controlled using monitor output and external setpoint signals. The TEC current limit is adjustable via on-board DIP switch.
Cost Competitive, Robust, Compact
The C154 is a cost-competitive solution for OEM applications that require stable laser diode current and temperature control. Discounts are offered for large quantity purchases; inquire for details.
