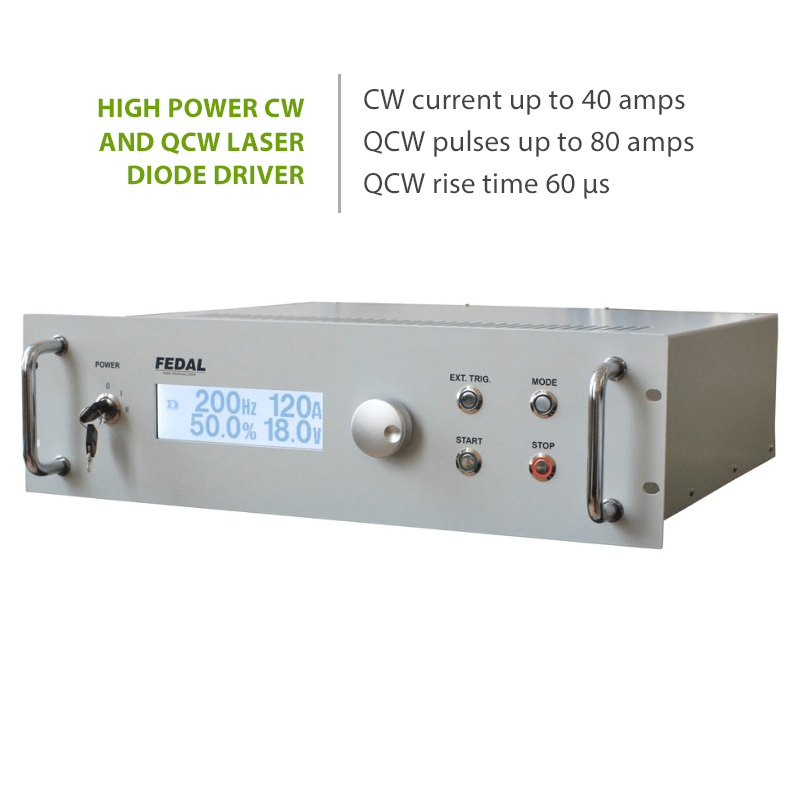

40A CW / 80A QCW Laser Diode Driver
- Compliance Voltage 60V
- Rack-Mounted
- Single-Phase 220V Power Input

  • High Power Pulsed Laser Diode Driver by Fedal
  • diode laser driver from Fedal
  • Multiple High Power Laser Driver System

Request Quote
sku / item#: RLS/SF530-40/60
ships: *** This product is currently unavailable **

Key Features
  • Output Power up to 40 Amps (CW Mode)
  • Pulsed output up to 80 Amps (QCW Mode)
  • Laser Diode Compliance Voltage up to 60 Volts
  • Variable Pulse Width: 50 µs to 1,000 µs
  • Pulse Rise Time < 60 µs
  • Trigger In / Trigger Out
  • LCD Display, Front Panel or PC Control
  • Single Phase 220VAC Power Input
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/SF530-40/60
PRICE Request Price
Pulse (QCW) mode
  • Output Current: 0.5 - 80 A
  • Output Voltage: 0 - 60 V
  • Pulse Rate: 1 - 500 Hz
  • Pulse Duration: 50 μs - 1000 μs
  • Maximum Output of Current and Voltage Must be Below 2.4kW Average Power
CW mode
  • Output Current: 0.5 - 40 A
  • Output Voltage: 0 - 60 V
General characteristics
  • Average Output Power: 2.4 kW
  • Power Input: Single Phase 220 VAC, 50 Hz

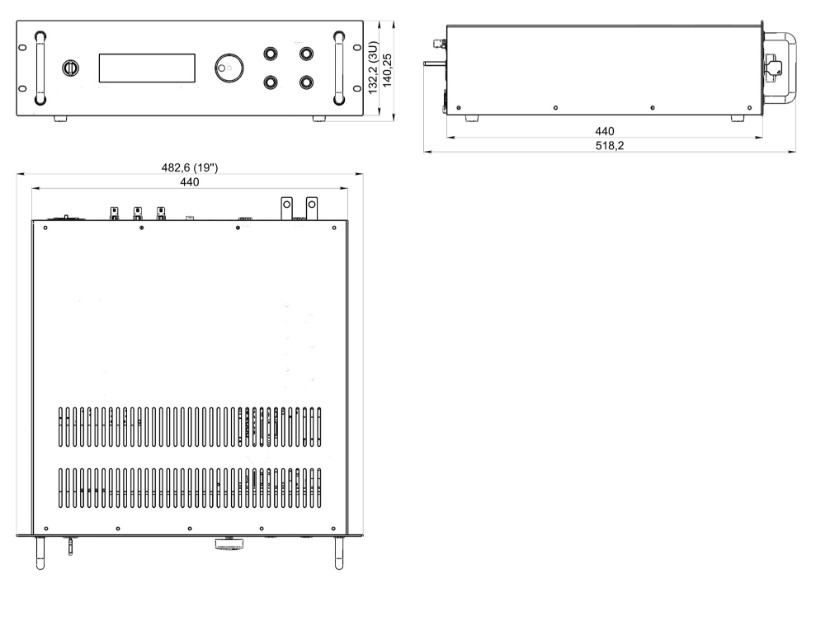

  • Dimensions: 440 mm x 132 mm 440 mm; 3U Hhigh
  • Weight: 20k g
  • Cooling: Air Cooled
Additional information
  • Values Are Limited by Average Power:
    F * V * I * τ ≤ P (pulse mode)
    V * I ≤ P (CW mode)
  • With a Length of Laser Diode Power Wire is Not More Than 2m
  • Remote Control Interface: RS232

Product Overview:

High Current CW/QCW Laser Diode Driver Overview

This high power CW / QCW laser diode driver is designed to drive high current laser stacks and arrays. Designed and optimized for use as part of laboratory, educational, experimental, and industrial applications, the driver has current limit, duty cycle limit, and safety interlocks to help protect the laser diodes and the user.

The rack-mounted controller includes an RS232 interface and PC-based software for control. The front-panel provides easy control of the driver, with a large LCD display and adjustment knob .

Versatile Options Increase Driver Functionality

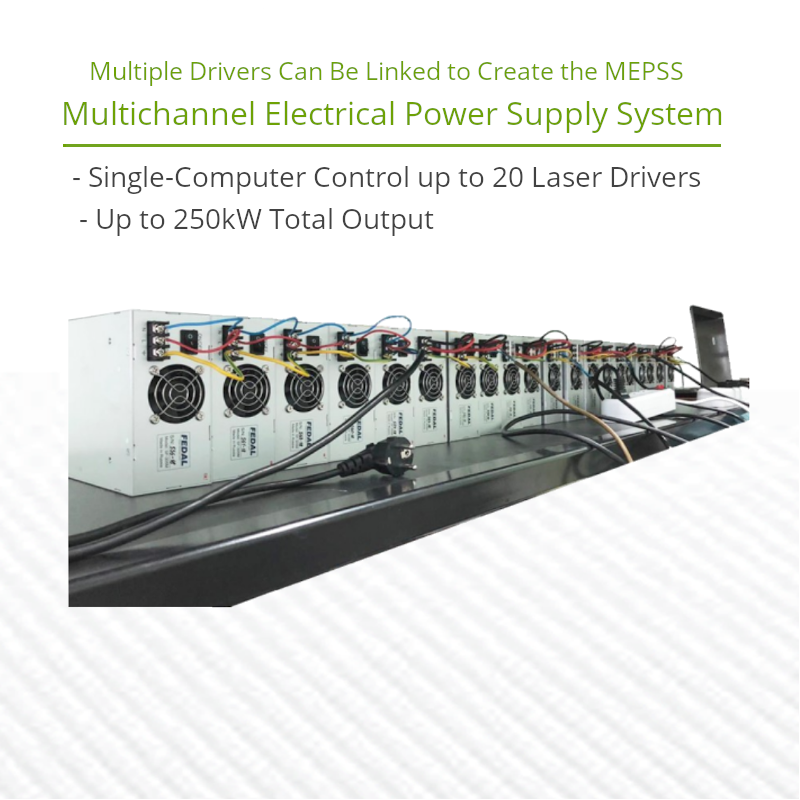

Multiple high power CW/QCW laser diode drivers can be used to build the Multichannel Electrical Power Supply System (MEPSS). The MEPSS can operate up to 20 laser diode drivers, and is designed for things like inertial confinement fusion, laser-matter interactions, laser diode array testing, and other cases where multiple high power lasers are controlled simultaneously.

The laser diode driver can be factory-equipped with a high power temperature controller for laser temperature stabilization; inquire for details and options.

Additionally, the flexible internal architecture allows for factory customization to suit customer requirements for a specific load. Optionally, the driver can be equipped to operate in a temperature range of –40°C / +50°C.
