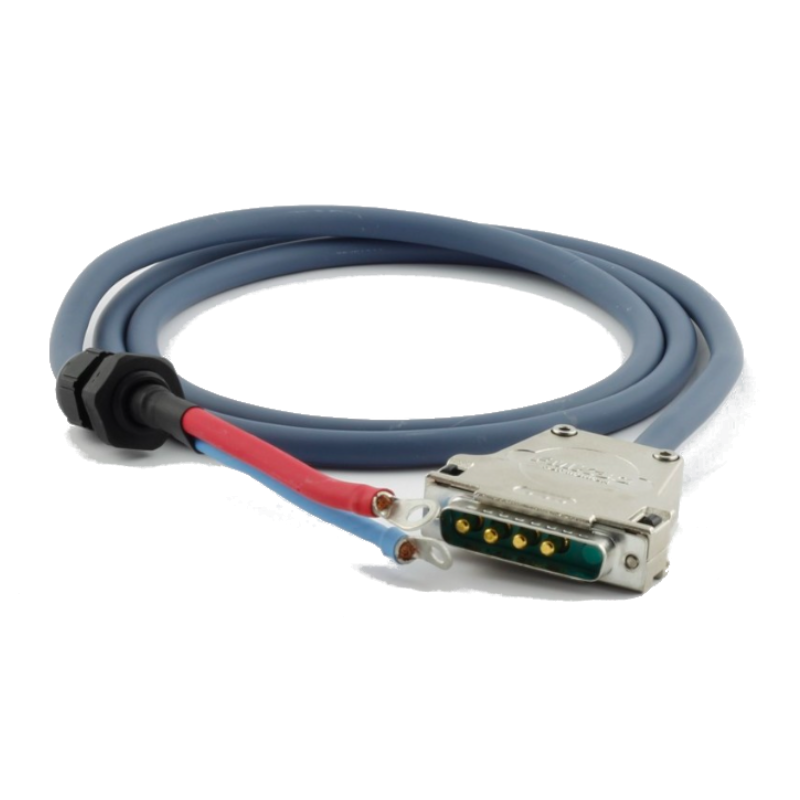

High Current Connecting Cable
Connects Laser Diode Driver to Laser Diode
Rated for up to 80 Amps CW Current

$242.00
sku / item#: RLS / KAB-141
ships: 14 to 18 days

Key Features
  • 5-Pin Sub-D5W5 High Current Connector (male) on Laser Diode Driver End
  • Lug Connectors on Laser Diode End
  • 1.3 Meters (longer available on request)
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / KAB-141
PRICE $242.00
specifications
  • Connector A: 5-Pin Sub-D5W5 High Current (male)
  • Connector B: High Power Lug Connectors
  • Standard Length: 1.3 Meters
  • Current Capacity: 40 Amps Per Pin (80 Amps Per Connector and Cable)
  • Wire Gauge: 10 mm2
  • *** Other Length Options: 2.5m, 5m (request pricing)

Product Overview:

5-Pin Sub-D5W5 Cable / Cable Lugs

This connecting cable is terminated on one end with a 5-pin Sub-D5W5 (male) connector to interface to the OsTech high power laser diode and TEC controllers. The connector has a five-pin capacity, but only four pins are populated in the connector. Each pin is rated for up to 40 amps; 2-pins are tied together for both the anode and cathode to enable parallel configuration to allow the user to supply up to 80 amps of total current through this cable. The laser diode end of the cable is terminated with lugs that can be used to the laser diode screw terminals or can be terminated with a wide range of connectors to suit the specific application.
