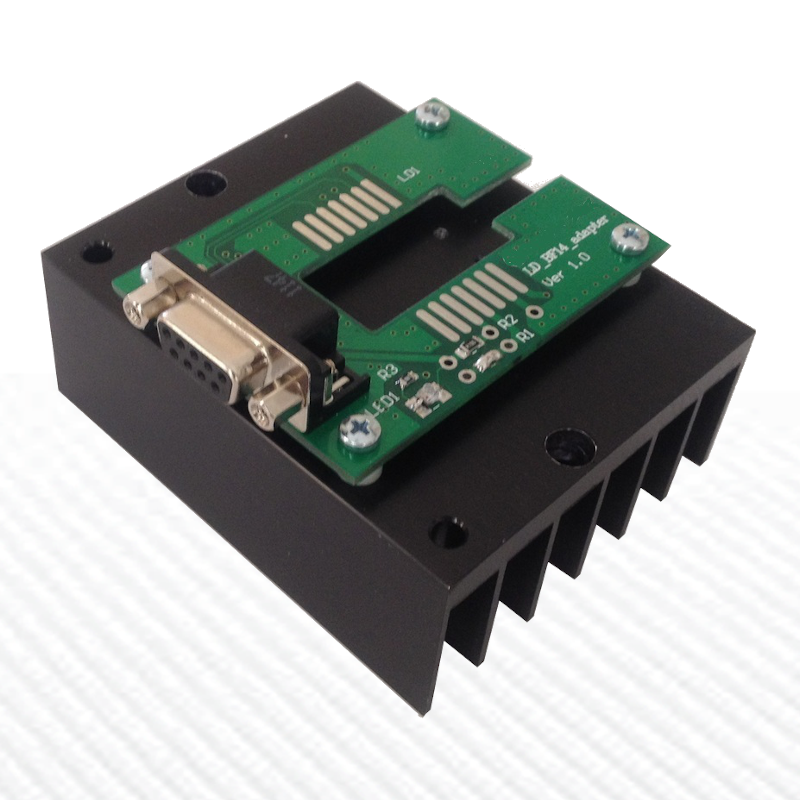

Butterfly Packaged Laser Diode Mount and Heat Sink, Type-1 Pinout

$169.00
sku / item#: RLS / BTY-T1-D9-L
ships: Inquire for Lead Time

Key Features
  • Affordable Butterfly Packaged Laser Diode Mount and Heat Sink
  • Type-1 Laser Diode Pinout, Pump Laser
  • 9-Pin D-Sub Connector
  • Solder-Connected for High Reliability
  • Offered by ELOP Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / BTY-T1-D9-L
PRICE $169.00
key specifications
  • Connector: 9-Pin D-Sub
  • Pinout: Type-1, Pump Laser
  • Photodiode Connectivity: Floating PD
  • Maximum TE Current: 3 Amps
  • Maximum Laser Current: 3 Amps
  • Laser Mounting Screws: 4x M2.5 HEX (included)
  • Dimensions (mm): 85 x 70 x 31

Product Overview:

Butterfly Packaged Laser Diode Mount and Heat Sink Overview

This heatsink is one of a series of affordable butterfly packaged laser diode mounting solutions available for laboratory applications.

Model RLS/BTY-T1-D9-L employs a 9-pin D-Sub connector to interface with the laser diode controller. The pre-wired laser diode pinout is Type-1, which is commonly used for pump lasers.
