Home  >  Laser Diode Drivers  >  Wavelength Electronics  >  RLS-PLD10000



High Current OEM Laser Diode Driver / Power Supply

$429.00   Ships: Stock | Model RLS-PLD10000

Key Features
  • 10 Amp Output
  • Slow Start Laser Diode Protection
  • Constant Current or Constant Power Mode
  • Active Current Limit
  • Mechanical Relay Protection
  • Remote enable / disable pin

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Add to Cart or Buy Now

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-PLD10000
PRICE $429.00
CURRENT AND VOLTAGE:
  • Output Current Range: 0 - 10 AMPS
  • Compliance Voltage: 2.5 V max with 5 VDC power supply voltage
  • Compliance Voltage: 27.5 V max with 30 VDC power supply voltage
  • Short Term Stability (1 hour): < 200 ppm
  • Photodiode Feedback Range: 15 to 5,000 μA
  • Modulation Rise / Fall Time: 7 μS
INTEGRATED PROTECTION FEATURES
  • Slow-Start Circuitry
  • Active Current Limit
  • Over-Temp Feedback Shut Down
  • Remote Shut-Off
OTHER INFORMATION

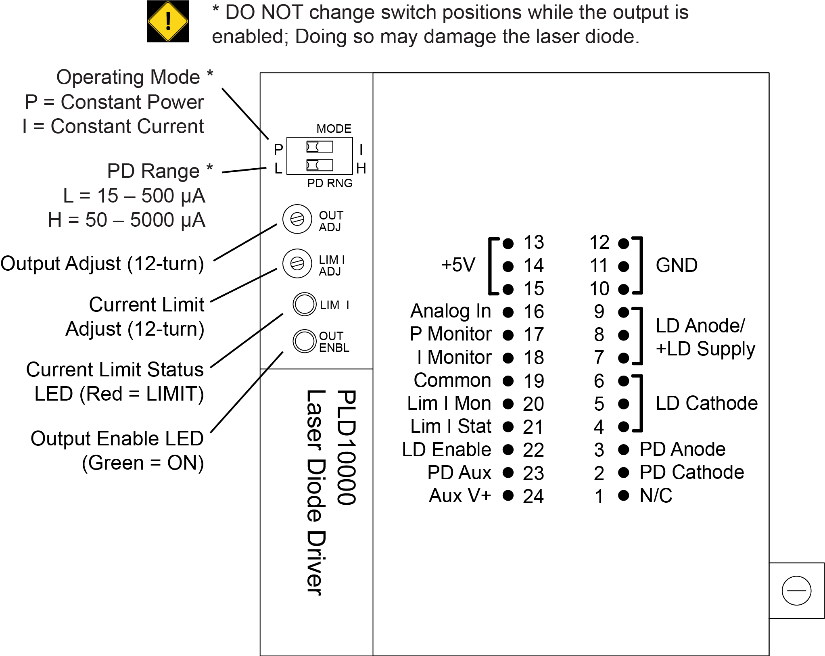

  • Onboard setpoint and limit trimpots
  • Constant Current (CC) or Constant Power Mode (monitor PD feedback)

Product Overview:

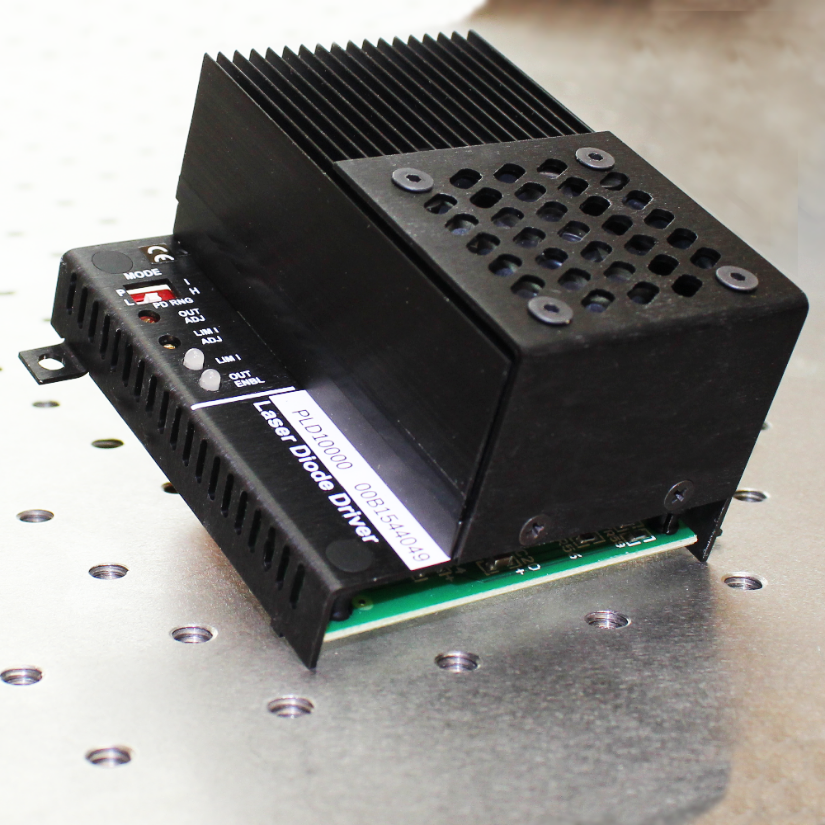

These high performance, low cost laser diode current power supplies can be used as a low cost laboratory laser diode driver for high power devices, or as an OEM controller for product integration. The PLD series driver module delivers precision, stability and laser diode protection at a very affordable price. These current sources are well suited for controlling medium to high power multi-mode pump lasers and high power 1.31 to 1.55 micron devices. Slow start ramping circuitry protects your laser diode from current / voltage overshoots, and user set current limits offer additional protection. The unit is a DIP PCB mounted package. The compact heatsink and fan are integrated to optimize thermal performance with the smallest possible footprint. The unit supports both ACC (constant current) or APC (monitor PD feedback controlled) modes of operation.
