200mA Laser Driver, OEM-Module for Product Integration Applications

$286.00
sku / item#: PLD200
ships: 1 to 3 days

Key Features
  • Output Current: 200mA
  • Small size: 0.81 x 2.65 x 1.5 inches
  • Single supply operation: +5 V to +30 V
  • Slow Start Laser Diode Protection

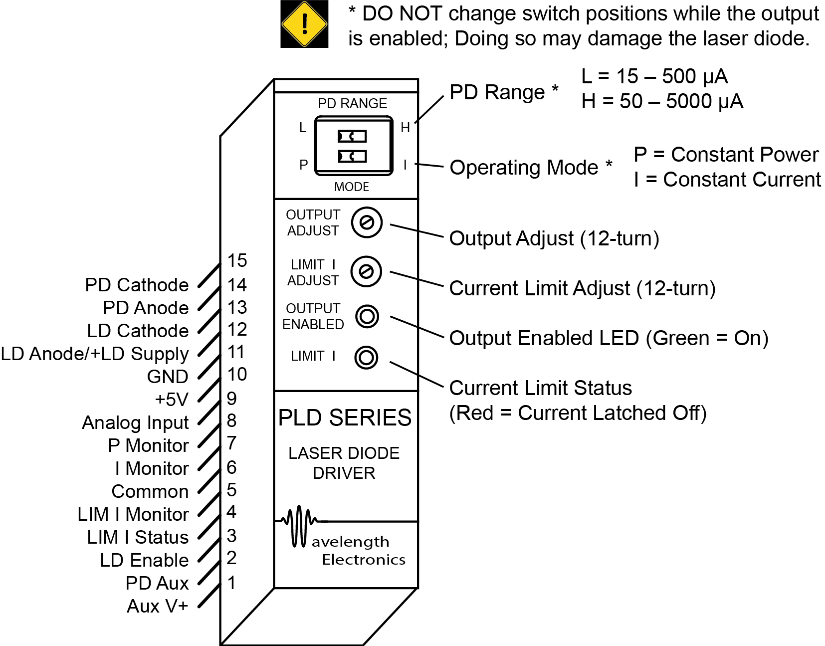

  • Constant Current or Constant Power Mode
  • Active Current Limit
  • Mechanical Relay Protection
  • Remote enable / disable input

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL PLD200
PRICE $286.00
General SPECIFICATIONS
  • Output Current: 200mA
  • Input Supply Voltage : +5 VDC to + 30 VDC
  • Operating Temperature Range : 0 to 50 ºC
  • Storage Temperature Range: -55 to 125 ºC
  • Weight: < 0.3 lbs
  • Dimension : 38.6 mm x 67.3 mm x 20.6 mm

Product Overview:

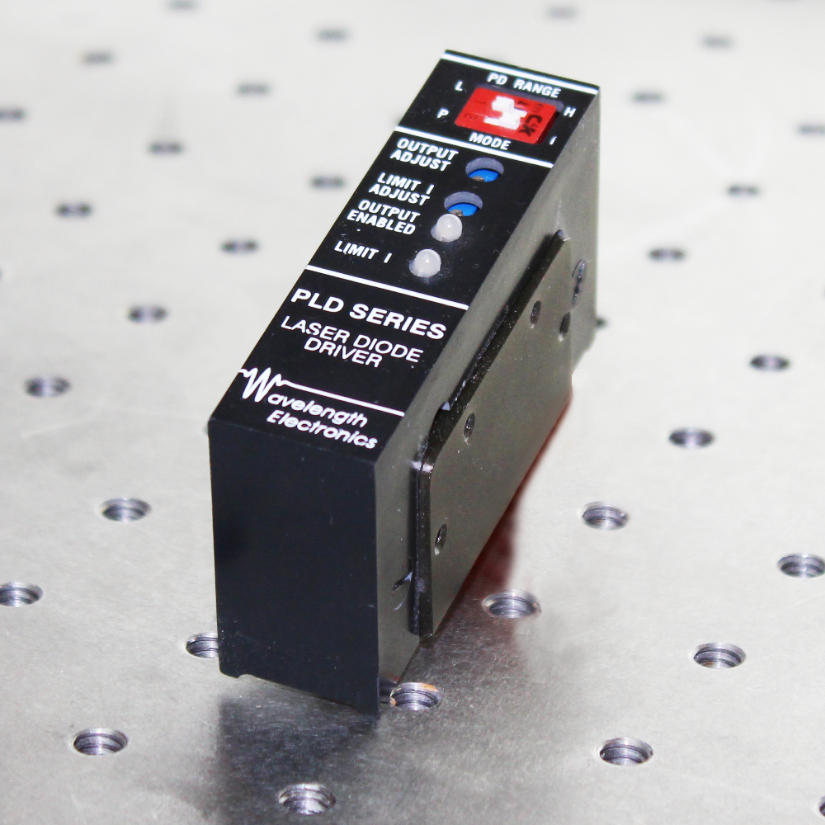

200mA OEM Current Source, PCB or Chassis Mount

The PLD200 is a simple, low cost, and highly-functional laser diode driver suitable for a wide range of applications. The PLD200 can be mounted to the driver circuit board, or can be chassis-mounted and connected to the system electronics with a ribbon cable.

Designed for Easy Integration

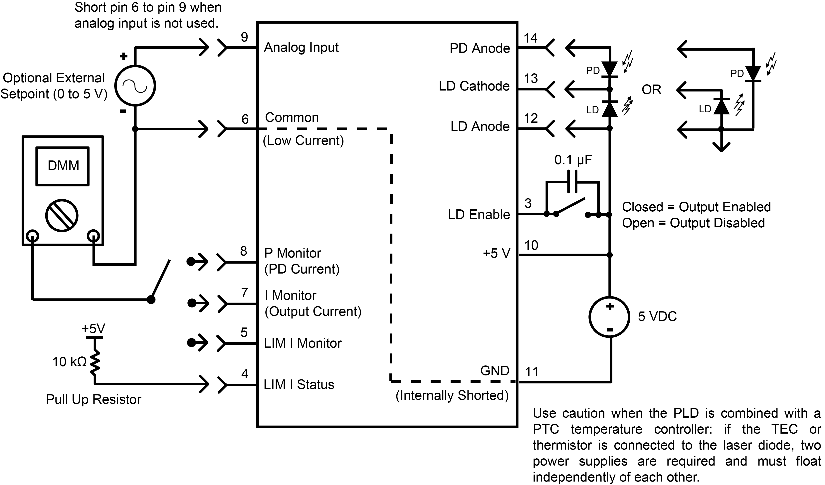

The PLD drivers operate from a single 5 V power supply. To accommodate high compliance lasers or multiple stacked lasers, the PLD laser diode drivers allow the laser to be driven from a separate power supply up to 30 V.

Laser Protection Features

Built-in safety features make your product more robust to real-world operating conditions: latching current limit switches off the output if the current limit is reached; slow start circuit ramps the output current; and a mechanical shorting relay protects the laser from ESD events. Long-term reliability means better up-time, fewer service calls, and more customers who are satisfied with your products.

Reliability You Can Trust

Wavelength Electronics' decades-long experience producing reliable and functional laser diode drivers provides a direct benefit to your product line. Long-term reliability means better up-time, fewer service calls, and more customers who are satisfied with your products. The PLD Series Laser Diode Drivers deliver the reliability and performance you expect from a Wavelength Electronics laser driver in a compact and easy-to-integrate package. Tens of thousands of PLD drivers are deployed in particle counters, manufacturing vision systems, wavefront scanners, fiber aligners, and other laser systems around the world, proving beyond doubt the reliability and stability of the design.
