Laser Temperature Controller, 64 Watts

$97.00   Ships: 2 Weeks | Model RLS-WTC3243

Key Features
  • Linear PI Control Stability of 0.0009°C
  • Heat and Cool Current Limits
  • Adjustable Sensor Bias Current
  • Drive ±2.2 A of TEC or Resistive Heater Current
  • Small Size of 1.3” X 1.28” X 0.313”
  • Supports Thermistors, RTDs, and IC Sensors
  • Single Supply Operation: +5 V to +30 V
  • 14-pin DIP PCB Mount
  • Monitor Actual Temperature
  • Quickly and easily integrated with WTC3293 Evaluation Board

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-WTC3243
PRICE $97.00
General SPECIFICATIONS
  • Maximum Output Current: ±2.2 Amps
  • Input Power Supply Voltage: +4.5 to +30
  • Sensor Compatibility:Thermistors, RTD, IC
  • Control Loop: Linear PI Control
  • Heat and Cool Current Limits
  • Adjustable Sensor Bias Current
  • Dimensions: 1.3” X 1.28” X 0.313”
  • Single Input Supply Operation: +5 V to +30 V
  • Package: 14-pin DIP PCB Mount

Product Overview:

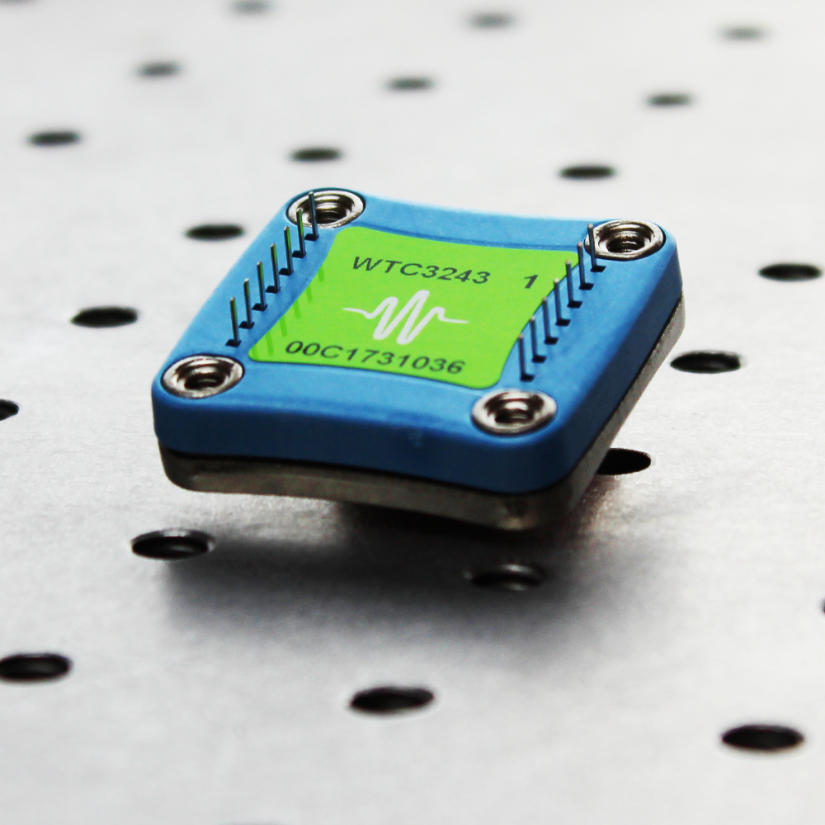

The WTC3243 is known for its precision, stability, and versatility.

It is a compact, analog PI (Proportional, Integral) control loop circuit optimized for use in ultrastable thermoelectric temperature control applications. It easily handles variable operating conditions with a stability of better than 0.0009ºC.

The WTC3243 is a linear temperature controller that delivers bidirectional current to Peltier Effect thermoelectric coolers (TEC), or unidirectional current to resistive heaters.

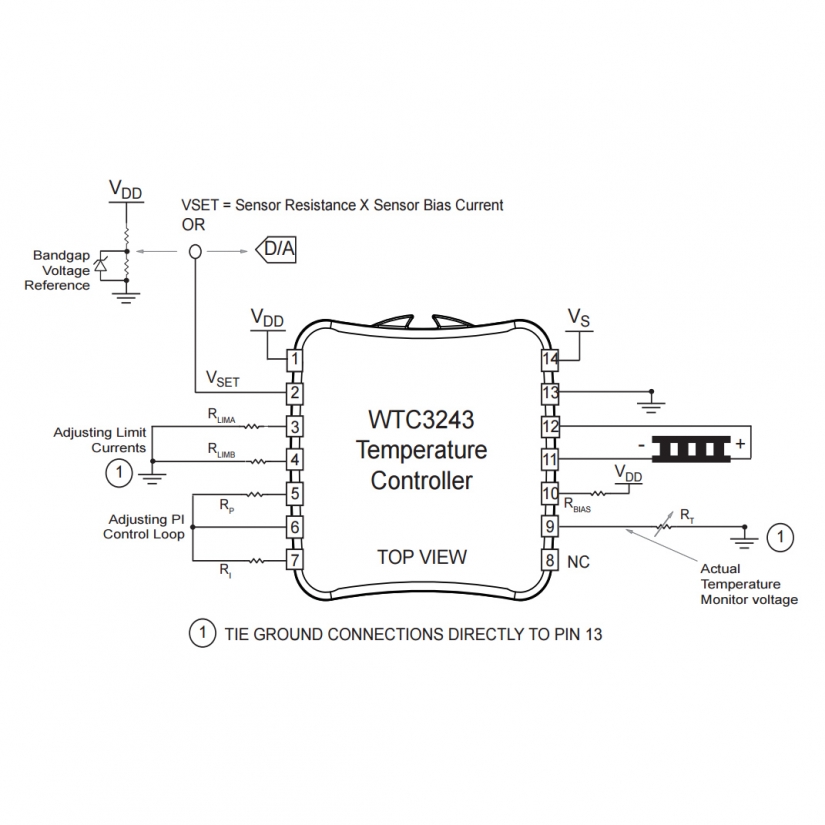

The temperature setpoint is set by a remote voltage signal capable of controlling both thermoelectric and resistive heaters, and only five external resistors are needed to optimize the controller for your specific applications.

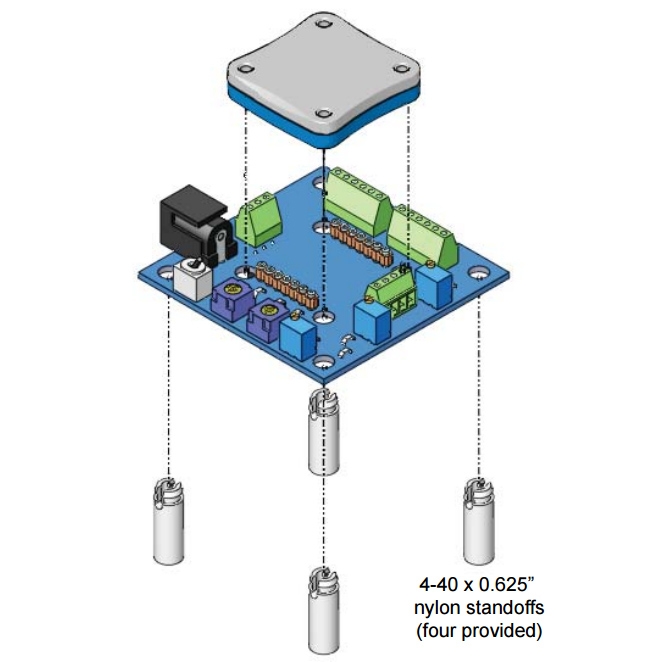

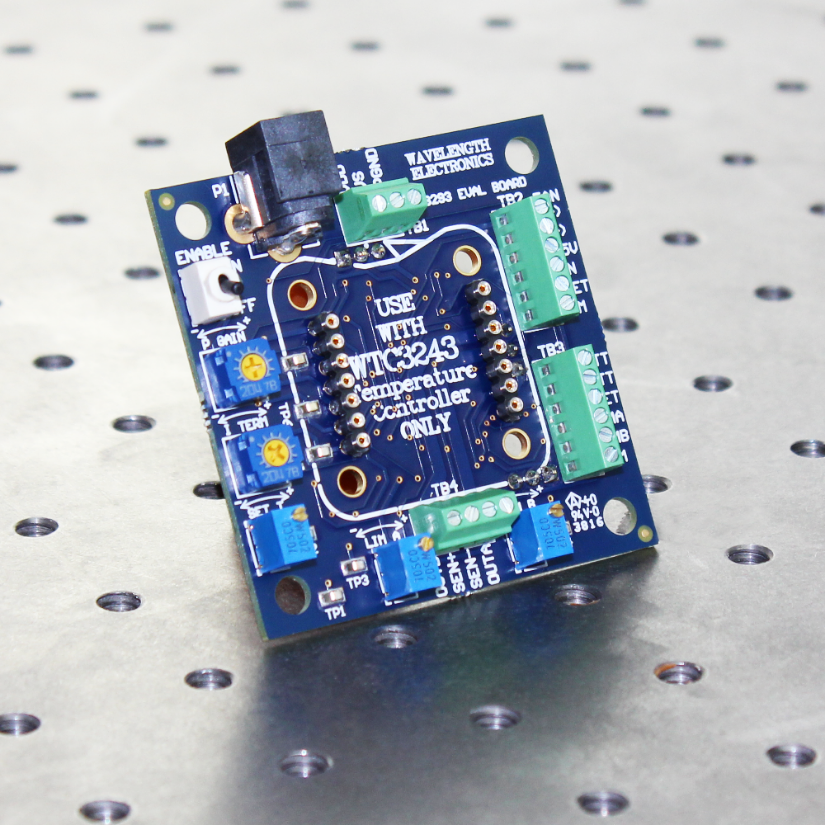

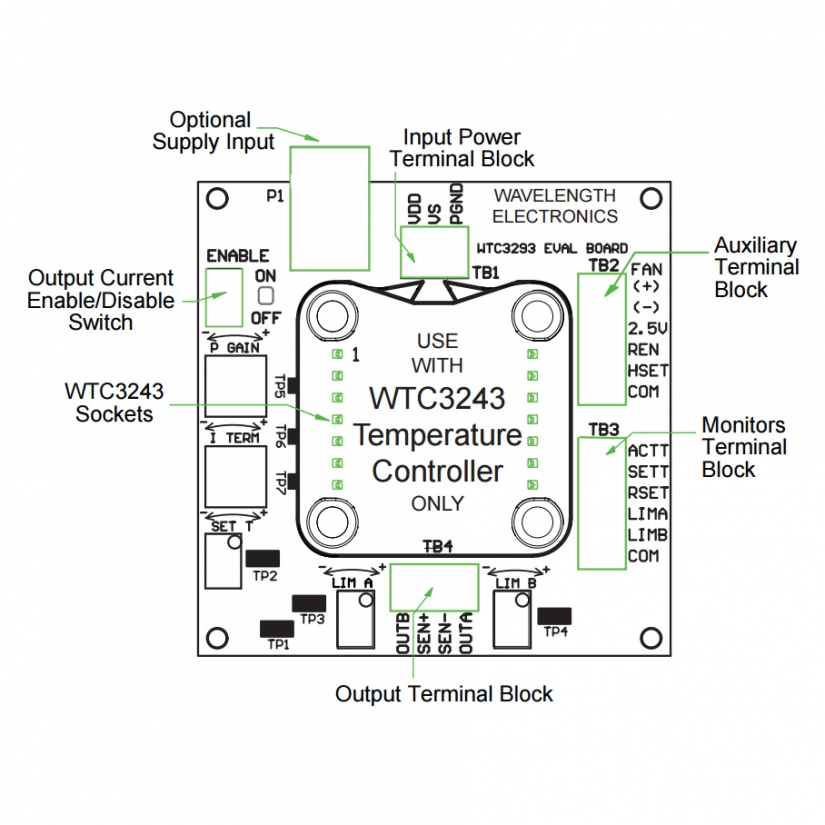

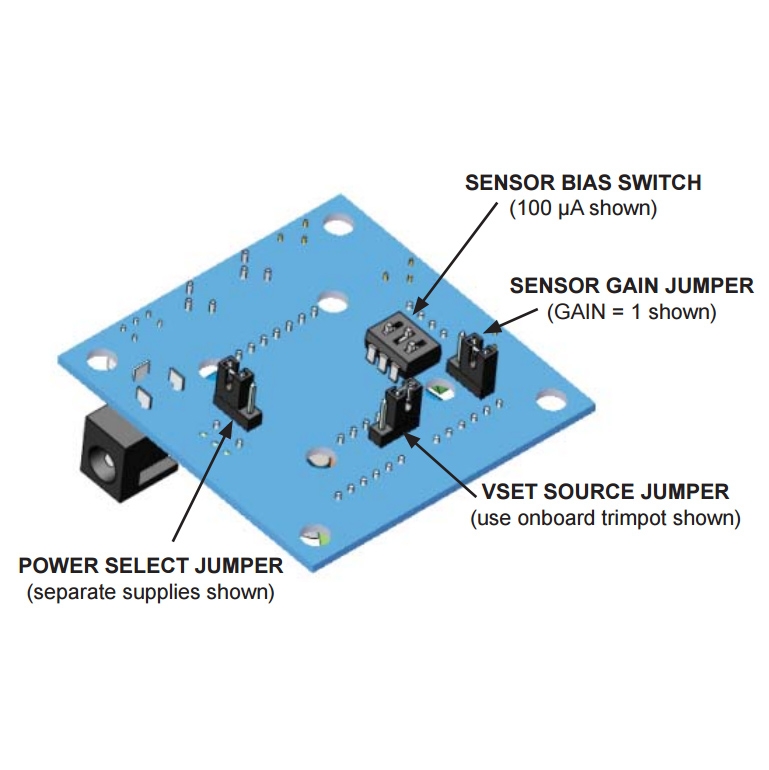

The WTC3293 Evaluation Board is available to quickly integrate the WTC3243 into your system and can be optimized for sensor type. You can use the adjustable trimpots to configure heat and cool current limits, proportional gain, and integrator time constant.

The WTC3243 has a built-in safety to protect the device. The heat and cool limits can be set independently. The safety feature guarantees that your thermoelectric cooler will never be driven beyond your specified limits.

The robust and reliable WTC3243 has leading-edge applications designed into electro-optical systems, airborne instrumentation, spectroscopic monitors, and medical diagnostic equipment. It is specifically well-suited to applications where the temperature is scanned across ambient.
