Home  >  Laser Diode Controllers  >  Wavelength Electronics  >  LDTC2/2



Wavelength Electronics LDTC2/2 Laser Diode Driver & Thermal Controller

$464.00   Ships: stock | Model LDTC2/2

Key Features
  • Affordable Chassis Mount Controller
  • Integrated LD Protection
  • Low Noise with Excellent Thermal Stability

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Add to Cart or Buy Now

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL LDTC2/2
PRICE $464.00
CURRENT AND TEMPERATURE CONTROL OUTPUT
  • Laser Bias Current Range: 0 - 2.2A
  • Laser Bias Current Compliance Voltage (max): 0 - 12V
  • TEC Current Range: 0 - 2.2A
  • TEC Compliance Voltage (max): 0 - 28V
INTEGRATED PROTECTION FEATURES
  • Slow-Start Circuitry
  • Current Limit
  • Temperature Limits
  • Remote Shut-Off
ADDITIONAL SPECIFICATIONS
  • Single supply operation LD: +5 to +12 V
  • Single supply operation TC: +5 to +28 V
  • Constant Current or Constant Power Mode
  • Size: 2.7
  • Failsafe Setpoint default for D/A

Product Overview:

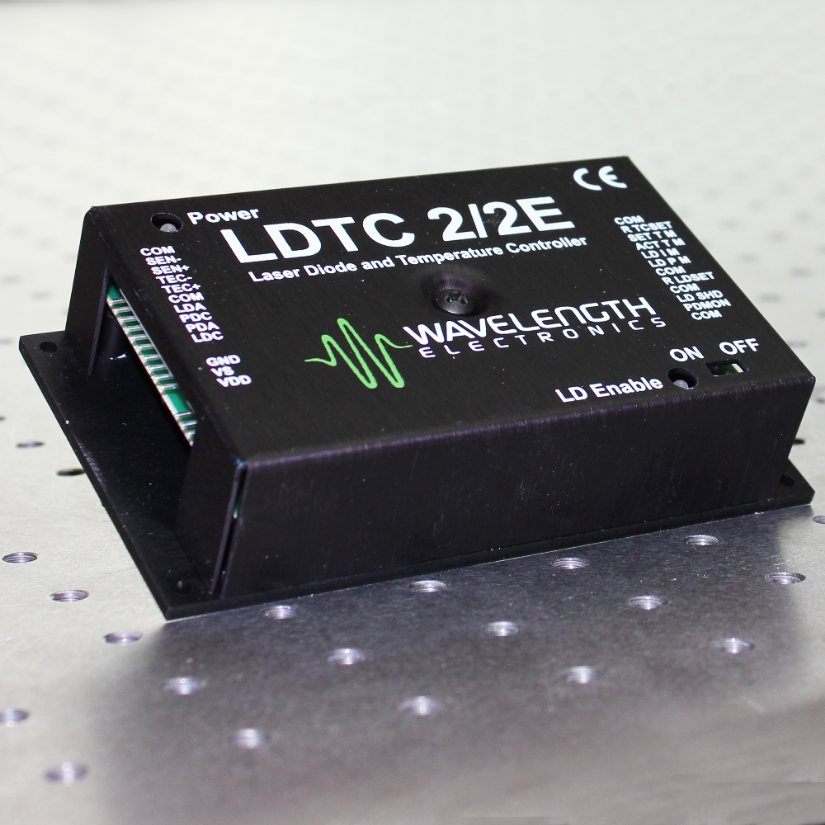

These model LDTC2/2 chassis mount laser diode controllers from Wavelength Electronics can be used as a low cost laboratory controller module or as an OEM controller for product integration. These very affordable controller modules include many layers of protection to your device under test. This low noise, high stability controller precisely powers your laser and provides excellent thermal stability. The TEC controller can sense and control with either thermistors or IC style sensors such as AD590 RTD's.

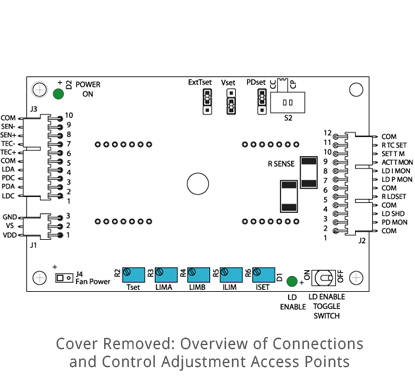

Slow start ramping circuitry protects your laser diode from current / voltage overshoots, and user set current limits offer additional protection. User set temperature limits protect your device from thermal damage. Current setpoint and limits are set by using on-board trim potentiometers. Setpoint can also be set remotely. The temperature controller can be configured either by on-board trim pots or remotely.
