Laser Diode Temperature Controller, 22 Watts

$97.00   Ships: in stock | Model RLS-WTCP5V5A

Key Features
  • Drive up to ±5.0 A of TEC current
  • High Efficiency Pulse Width Modulated Controller
  • Single 5 VDC supply
  • Small package: 1.28 x 1.3 x 0.31 inches
  • Short term stability: 0.001°C
  • Long term stability: 0.002°C
  • Adjustable current and voltage limits
  • Comprehensive and easy-to-use evaluation board available

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-WTCP5V5A
PRICE $97.00
General SPECIFICATIONS
  • Maximum Output Power: 22.5 Watts
  • Short term stability: 0.001°C
  • Long term stability: 0.002°C
  • Adjustable current and voltage limits
  • Comprehensive and easy-to-use evaluation board
  • Efficiency: 85-95 % (Depending on Load Impedance)
  • Power Supply (Load Power): +5.5 VDC
  • Power Supply (Chip Power): +5.5 VDC
  • Case Operating Temperature: -40 to 85 ºC
  • Weight: 0.6 oz 17 g
  • Size: 1.28 x 1.3 x 0.31 inches

Product Overview:

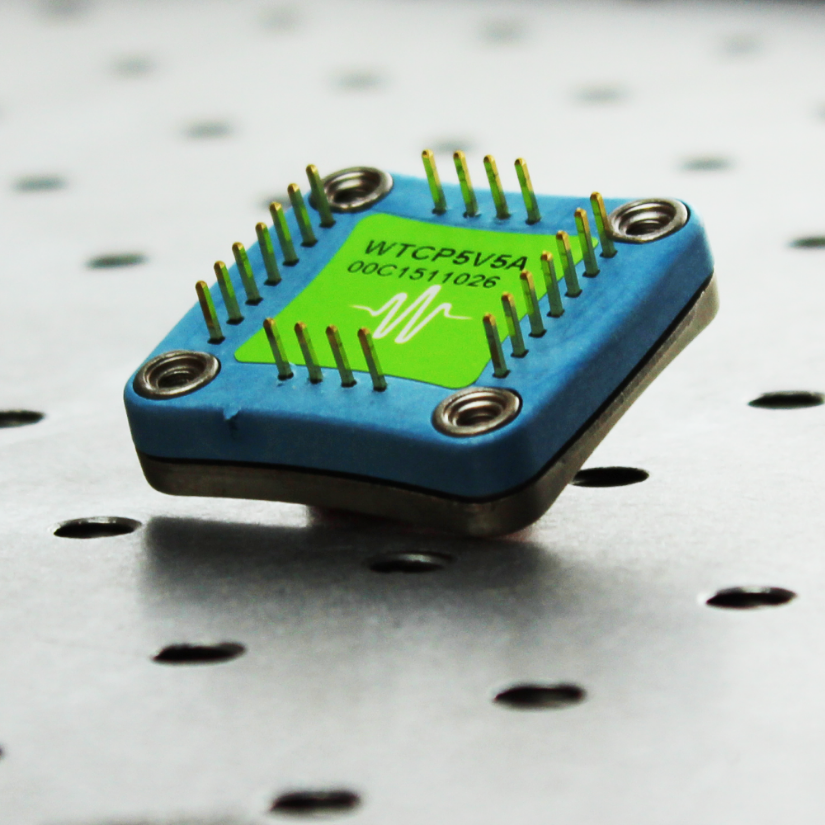

The WTCP5V5A PWM Laser Diode Temperature Controller is a compact, powerful and efficient device that delivers all the advantages of Pulse Width Modulated (PWM) control in a compact PCB-mounted package. It is known for its high efficiency, low power dissipation, high stability, and high accuracy features.

It is perfect for electro-optical systems, airborne instrumentation, medical diagnostic equipment, and other applications where compact size and high efficiency are critical.

The WTCP5V5A PWM Temperature Controller has built-in safety features such as current limit and voltage limit make the WTCP robust to real-world operating conditions. Long-term reliability means better up-time, fewer service calls, and more satisfied and successful customers.

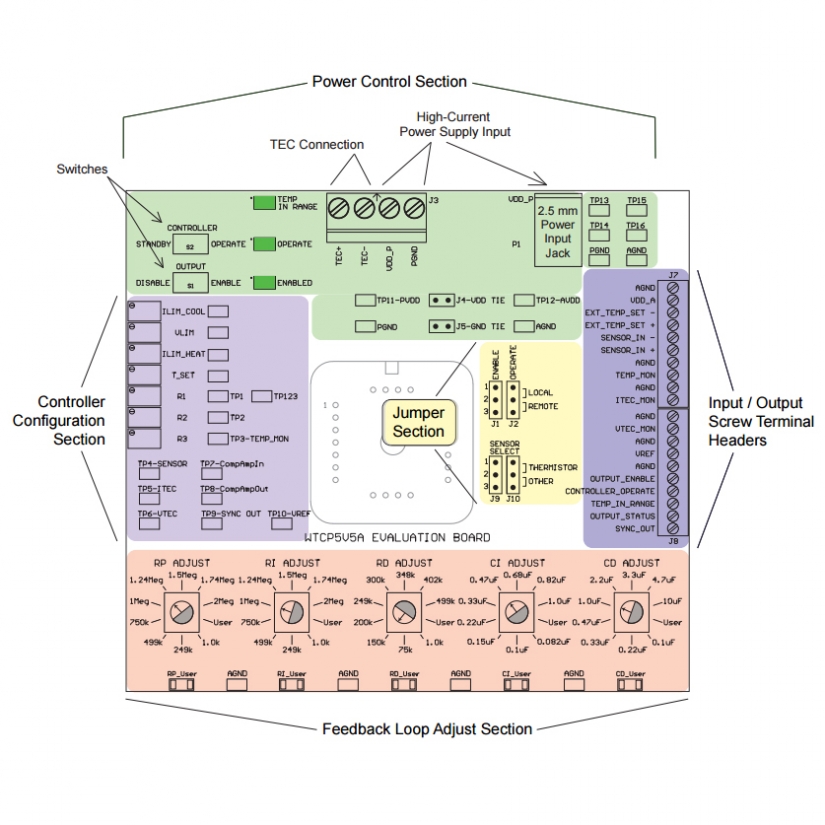

The WTCP5V5A is designed for easy integration. It can operate from a single 5 V power supply, or the WTCP and load can be driven from separate power supplies for even lower output current noise. It has an available WTCPEVAL evaluation circuit board includes everything needed to quickly configure the WTCP for a wide range of applications and load conditions. The onboard feedback loop adjustment switches simplify tuning, and dramatically reduce your development time.

The WTCP does not normally require additional heatsinking thanks to the high-efficiency output stage.

The WTCP Series Temperature Controllers feature pulse-width modulated output for high current, high effi ciency, and compact package size.
