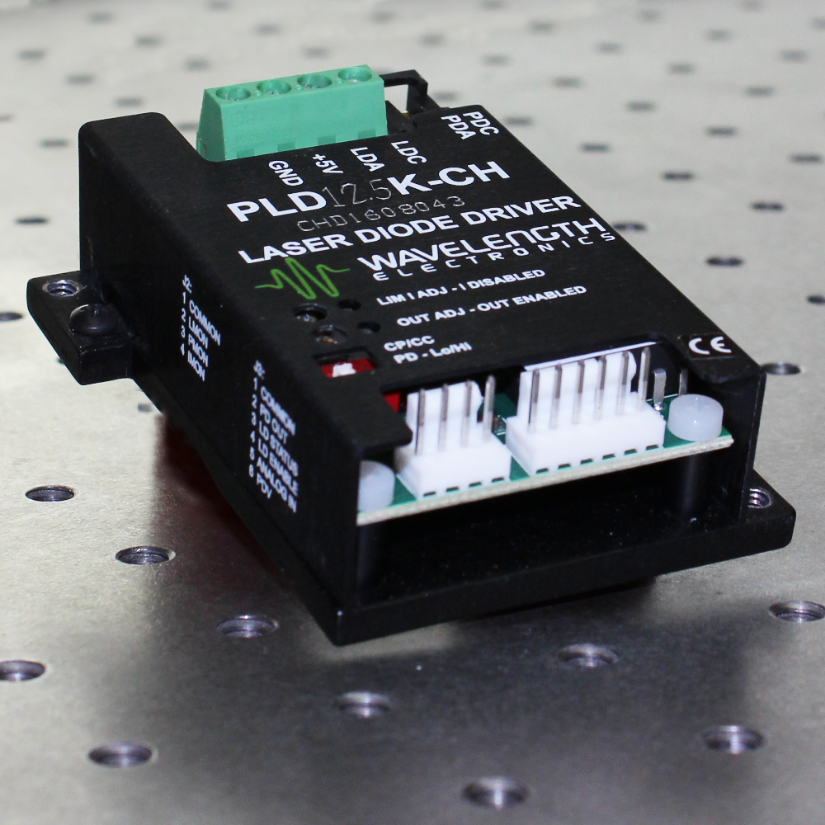

12 Amp OEM Laser Diode Driver

$495.00   Ships: Stock | Model RLS-PLD12.5K-CH

Key Features
  • Max Output Current: 12.5 Amps
  • Constant Current or Constant Power modes
  • Active Current Limit
  • Slow-Start Circuitry
  • Mechanical Relay Protection
  • Local and Remote Enable controls

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-PLD12.5K-CH
PRICE $495.00
General SPECIFICATIONS
  • Max Output Current: 12.5 Amps
  • Compliance Voltage: 3V max with 5V power supply input
  • Compliance Voltage: 28V max with 30V power supply input
  • Supply Voltage: +5V to +5.5V VDC
  • Short Term Stability, 1 hour: <200ppm
  • Temperature Coefficient: < 200 ppm / ºC
  • Operating Temp: 0 to 50 ºC
  • Storage Temp: -55 to 125 ºC
  • Weight: 3.2 oz (89.5g)
  • Size: 1.12 x 2.34 x 3.2 in

Product Overview:

The PLDxK-CH Series Laser Diode Drivers provide you the reliability you can trust and give you the performance you expect from a Wavelength Electronics laser driver in a compact and easy-to-integrate package.

The PLDxK-CH drivers operate from a single 5 V power supply. To be able to accommodate high compliance lasers, or multiple stacked lasers, the PLDxK-CH laser diode drivers allow the laser to be driven from a separate power supply up to 30 V. Tens of thousands of PLD drivers are deployed in particle counters, wavefront scanners, manufacturing vision systems, fiber aligners, and other laser systems, proving beyond doubt the reliability and stability of the design.

The PLDxK-CH drivers has built-in safety features that make your product more robust to real world operating conditions. The latching current limit switches off the output if the current limit is reached, the slow start circuit ramps the output current and a mechanical shorting relay protects the laser from ESD events.

This provides you a long-term reliability for better up-time, fewer service calls, and more satisfaction.

The PLDxK-CH requires no external electronic components. Linear-regulated or low-noise switching power supplies can be used. We recommend using power supplies with noise specifications suitable for your application.
