Dual Output Precision TEC Controller, 2 x 700W Output Channels, 0.01 °C Temperature Control Stability

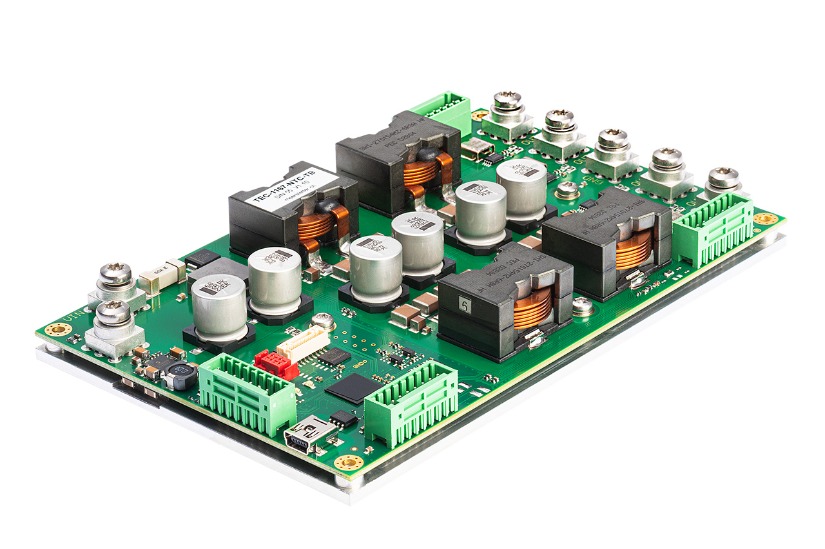

  • p-tec-controller-tec-1167-tb-1280

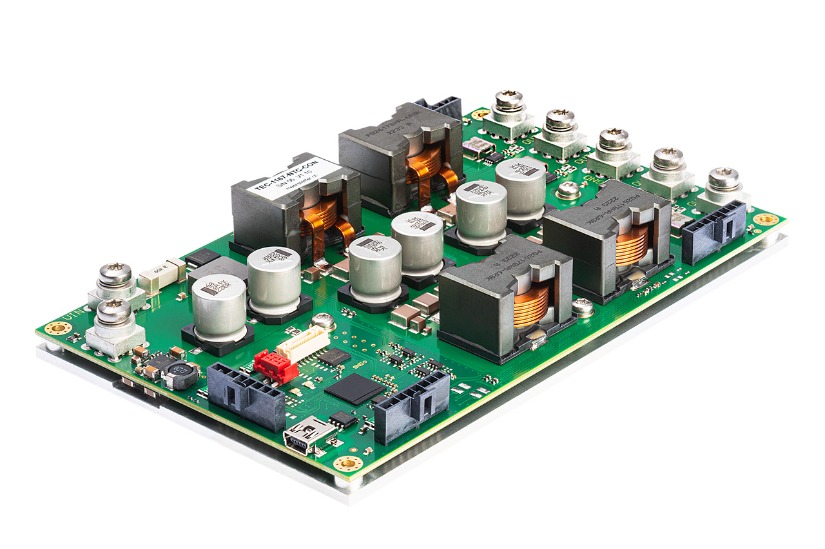

  • p-tec-controller-tec-1167-con-1280

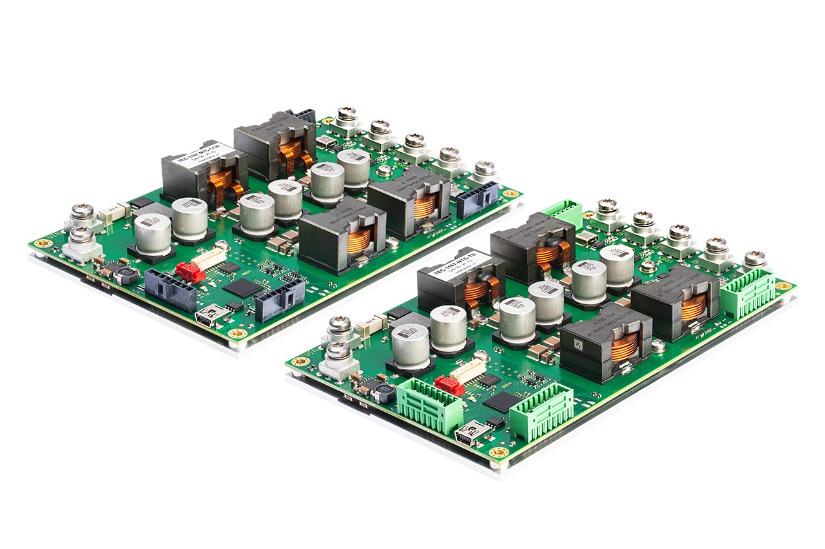

  • p-tec-controller-tec-1167-configurations-1280

$988.00
sku / item#: TEC-1167
ships: Request a Quote for Current Ship Date

Key Features
  • Two Independent TEC Controller Channels
  • Two Outputs, Each Output: ±25A / ±56V
  • Output Current up to ± 25 Amps
  • Output Voltage up to ± 56 Volts
  • Temperature Control Stability: < 0.01 °C
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL TEC-1167
PRICE $988.00
General Specifications
  • Dual Output TEC Output Current: 0 to ±25 A
  • Dual Output TEC Output Voltage: 0 to ± 56 V
  • Temperature Sensor Input: NTC (ie. 10k Thermistor)
  • Auxiliary Temp. Sensor Input: NTC (ie. 10k Thermistor)
  • PID Temperature Control: PID Setting and Auto-Tuning
  • Available Temperature Sensor Types: Pt100, Pt1000, NTC, Voltage
    Standard / Default Configuration is NTC
  • Refer to Datasheet for Additional Specifications
Electrical Specifications
  • Input Voltage: 11.5-63 V
Package Specifications
  • Dimensions (L x W x H): 160 mm x 100 mm x 28 mm
  • Connecting Terminal Type: Terminal Block
  • CON locking Connector available (best suited for series production); Inquire for Quote
  • 8x Digital I/O Signals (3.3 V / 5 V)
  • Control Interfaces: USB, RS485, RS232 TTL, CANopen, I/O
Applications
  • Pump Laser Cooling
  • High-Power Electronics Cooling
  • Thermal Cycling
  • Autonomous, mobile devices

Product Overview:

2 x 700 Watt, Dual Output Precision TEC Controller

The TEC-1167 is a specialized dual channel TEC Controller / power supply able to precision-drive two Peltier elements or resistive heaters. Each output channel features a true bipolar current source for cooling / heating, three temperature monitoring inputs (1x high resolution, 2x low resolution) and intelligent PID control with auto tuning. The TEC-1167's hardware and firmware offers various communication and multiple safety options.

Powerful Two-Channel TEC Control

The TEC-1167's two independent channels may also be operated in parallel, to either drive two individual or one common load (current doubling). Further functionality and features include: Smooth temperature ramping, thermal stability indication and auto gain (NTC probes). The heating and cooling power is optimized by proprietary thermal management routines based on power balance models (for Peltier elements and resistive heaters).

Auxiliary Temperature Sensors for Added Safety

The TEC-1167 is delivered configured for NTC (thermistor) temperature sensors. The controller is also configured with auxiliary temperature inputs that allow the connection of NTC probes located on the heat sinks of the Peltier elements. These auxiliary sensors can be used to ensure the thermal safety of the electronics system by preventing thermal runaway. The analog measurement circuit is factory calibrated.

Multiple TEC Controller Interface Options

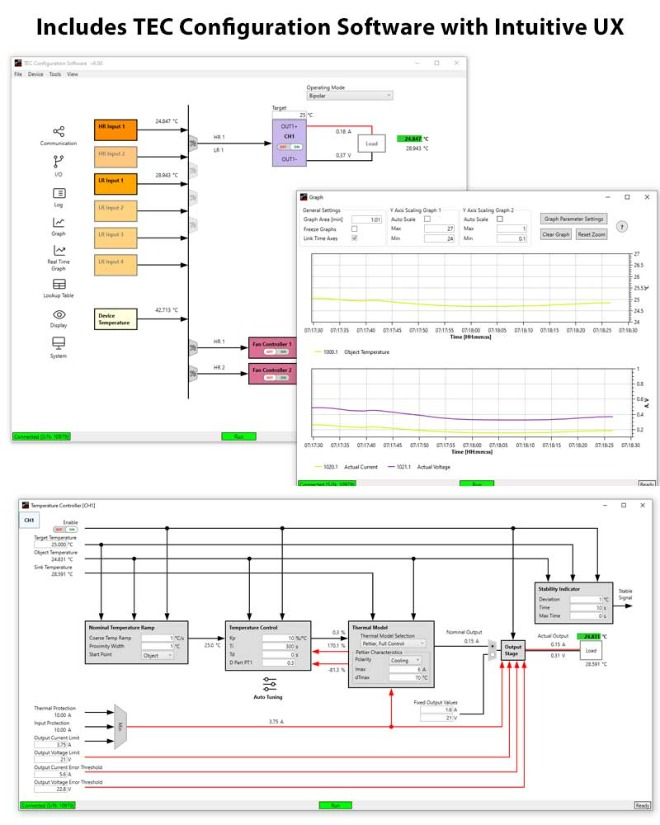

This laser diode TEC controller includes PC-Software which allows configuration, control, monitoring and live diagnosis of the TEC Controller using USB, RS485, RS232 TTL or CANopen connections from a PC running Windows.

Software Control and Non-Volatile Memory Operation

After power up, the unit will operate according to pre-configured values. The software comes with a user-friendly interface for maintenance, firmware upgrades, basic data logging and device calibration. All of the parameters can be saved a nonvolatile memory. Saving can also be disabled for bus operation.

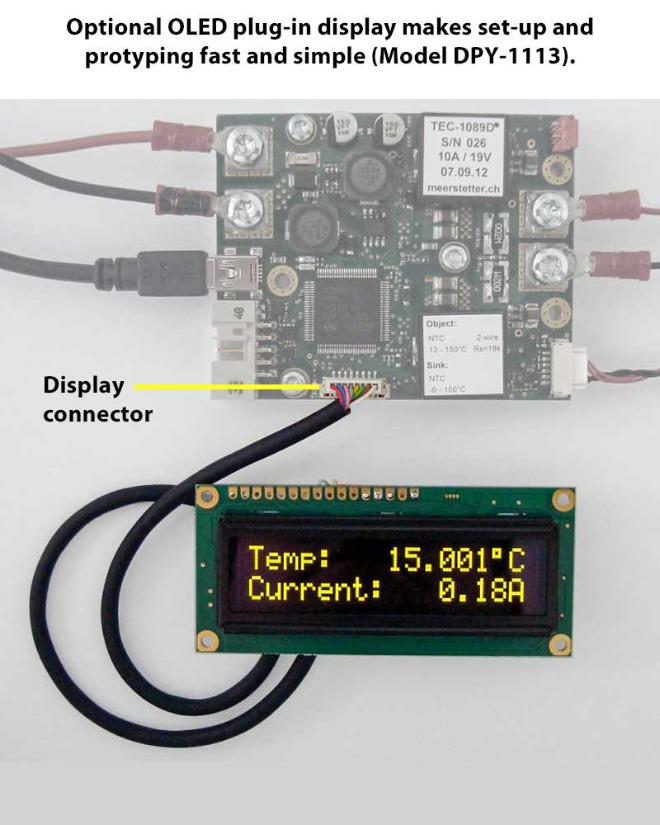

Display Kit for Rapid Prototyping

The DPY-1113 TEC Status Display Kit is available to help speed prototyping efforts. The DPY-1113 Display is configurable via the TEC Service Software, and allows the display fields to be customized. The OLED Display DPY-1113 can be connected with the connector X13. Other displays for the TEC-1163 are available: DPY-1114 and DPY-1115; Inquire for details on the different OLED displays from Meerstetter.
