172 Watt TEC Controller

Request Quote
sku / item#: TC-1
ships: Contact

Key Features
  • TEC Current: ±8 A
  • TEC Voltage: ±21.6 V
  • High temperature resolution
  • User defined thermistor parameters

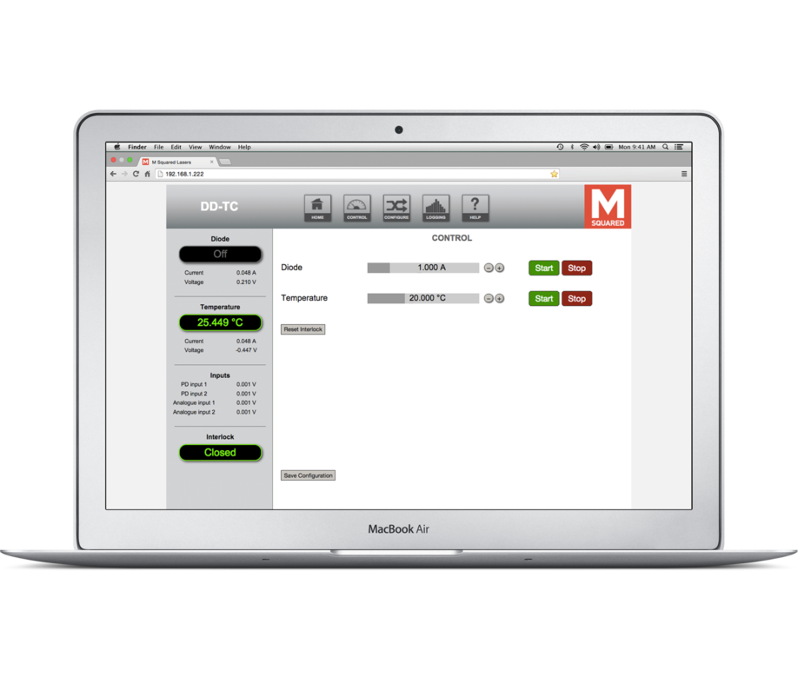

  • Web-based interface
  • Ethernet connectivity
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL TC-1
PRICE Request Price
Temperature Controller
  • Output voltage per channel: ±21.6 V
  • Output type: Bi-directional, linear
  • Output current per channel (single channel use): ±8 A
  • Temperature set point resolution: 0.001 °K - typical value, steady state
  • Temperature control stability: <1 mK
  • Set point temperature coefficient: < 5 ppm/°K
  • Temperature set point range: -20.15 °C to +79.85 °C
  • NTC thermistor range: 10 kΩ - 100 kΩ
  • Extended thermistor range: 1 kΩ - 1MΩ (slightly lower resolution)
General
  • Mains input voltage: 100 - 240 V AC, 50/60 Hz, 350 VA
  • Size (W x H x D): Half rack (203 mm) x 2U (89 mm) x 345 mm
  • Weight: 4.1 kg
  • Operating temperature: 0 °C to 70 °C
  • Storage temperature: -20 °C to 85 °C
  • Relative humidity: <90 % humidity, non-condensing
  • Indoor/outdoor use: Indoor use only
  • Altitude: <2000m

Product Overview:

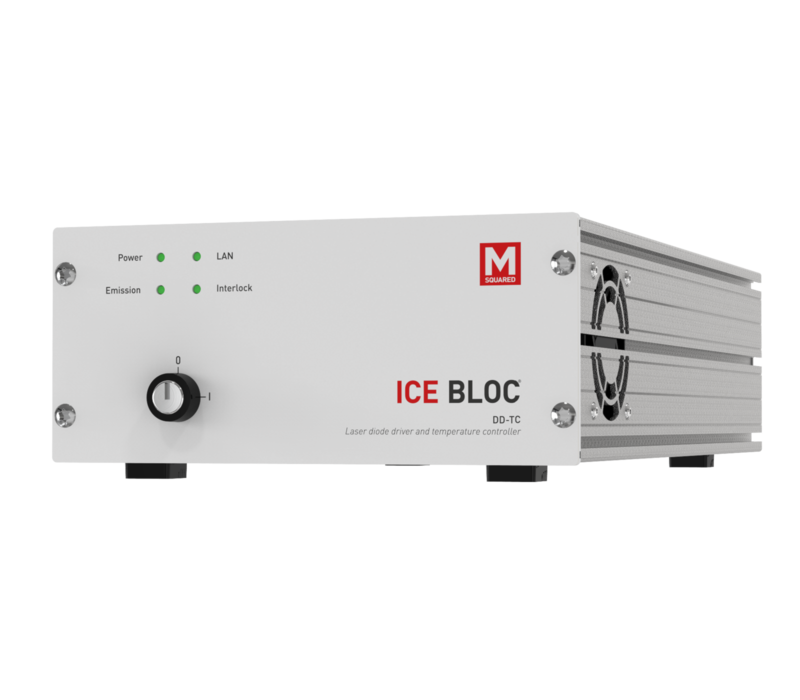

Temperature controller with precision control and high output powers from ICE BLOC. Ethernet remote interface for seamless integration with MATLAB, LabVIEW, and Python.
