Pulse Current Driver and TEC Controller Board for Semiconductor Optical Amplifier Devices

  • Analog Modules Model 7612A SOA Controller
  • Analog Modules SOA Controller

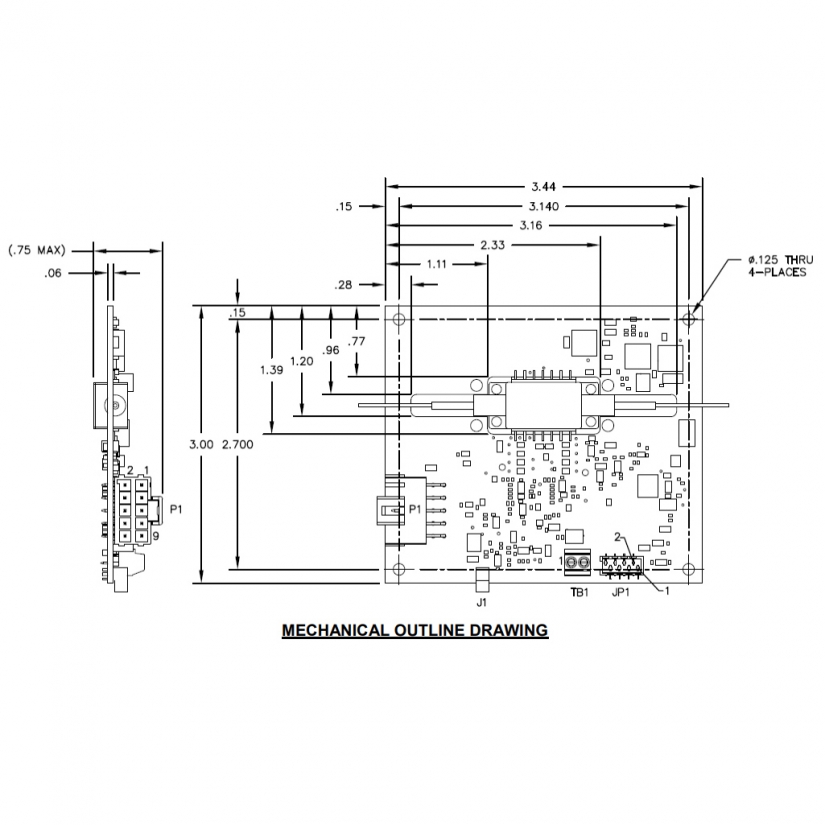

  • Dimensions for Analog Modules SOA Controller

Request Quote
sku / item#: 7612A
ships: Request a Quote for Current Ship Date

Key Features
  • Semiconductor Optical Amplifier Controller
  • Pulse Width Range from < 10 nanoseconds to CW
  • 1200 mA of Drive Current
  • Integrated TEC Controller
  • Repetition Rate: Single Shot to 50 MHz
  • Designed-In Laser / SOA Protection Circuits
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL 7612A
PRICE Request Price
General SPECIFICATIONS
  • Output Current: 0.1 to 1.2 A
  • Bias Current: 0 to 90 mA
  • Compliance Voltage: 3.0 V
  • Repetition Rate: Single Shot to 50 MHz
  • Duty Cycle: 0 to 100 %
  • Rise time (Optical) @ 1A: 6 to 10 ns
  • Fall time (Optical) @ 1A: 6 to - ns
  • TEC Current: 0 to ±3.0 A
  • TEC Voltage: 0 to ±4.2 V
  • Input Power: +4.75 to +5.25 VDC
  • Dimensions: 3.44
  • Refer to Datasheet for Additional Specifications

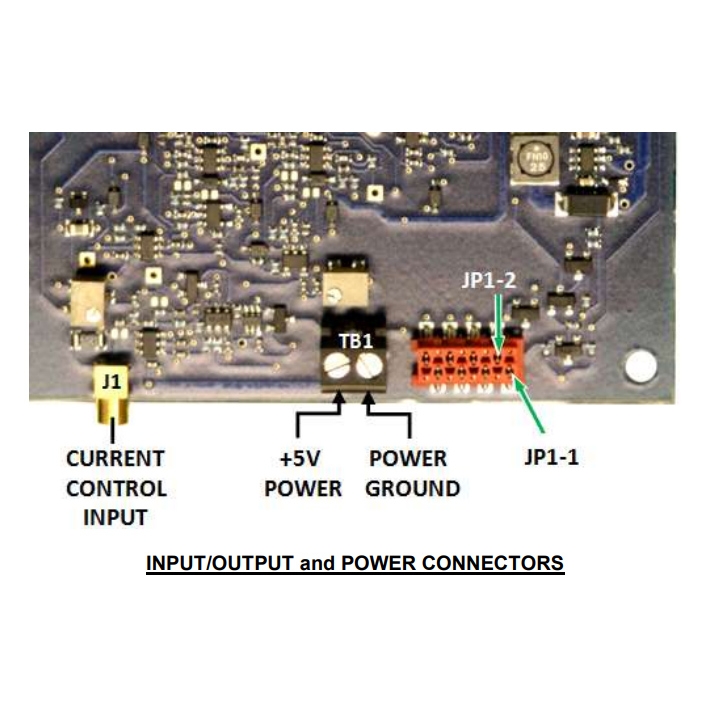

Product Overview:

Semiconductor Optical Amplifier Controller Overview

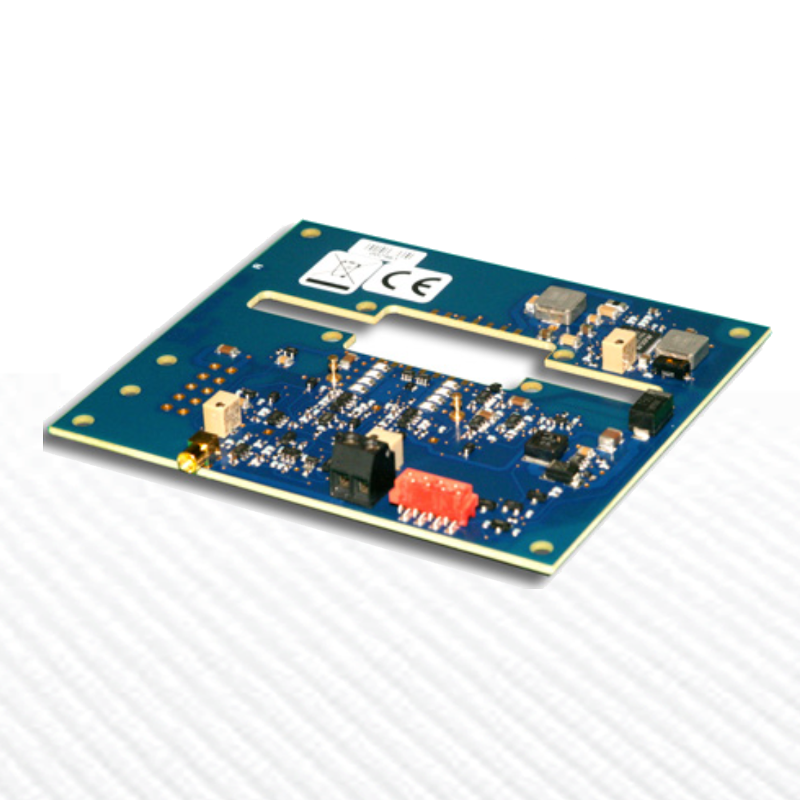

These pulse drivers for laser diodes are optimized for controlling semiconductor optical amplifiers, supplying the drive current, the TEC controller, and the butterfly mounting pads. These 1.2 amp output current modules are designed to fully control a butterfly packaged fiber-coupled SOA. These driver and control modules operate as trans-conductance amplifiers with an input DC voltage and a scaling current output. These units from Analog Modules include a TEC controller to precisely stabilize the temperature of the module; a heatsink is required to dissipate the waste heat from the TEC inside the butterfly package.
