High Power OEM Laser Diode Driver
- 300 A Pulsed and 50 A CW Output
- Fan-Driven Air-Cooled Chassis

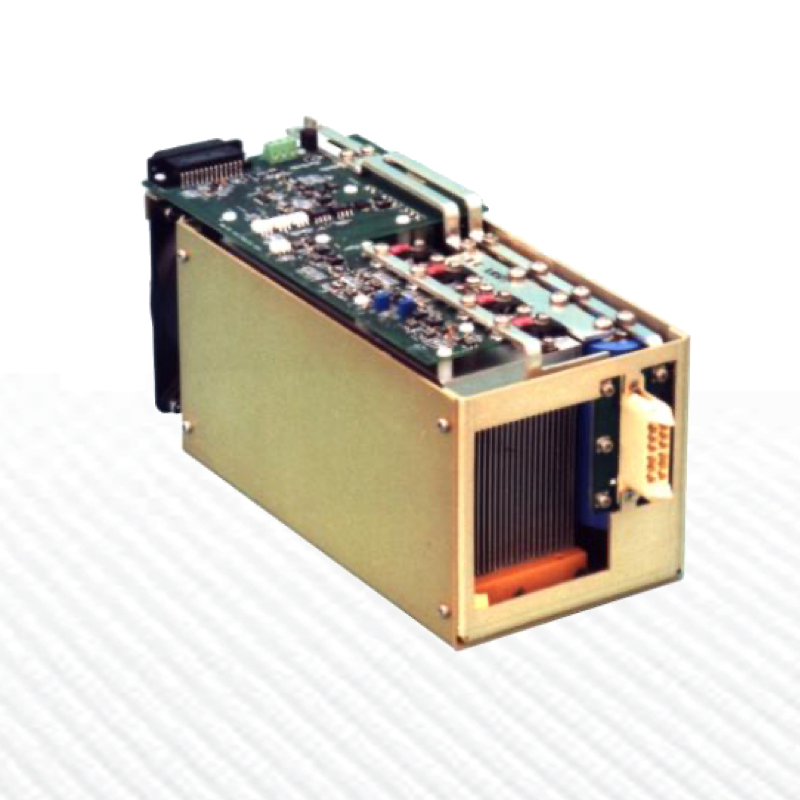

  • 300A OEM Pulsed Laser Diode Driver

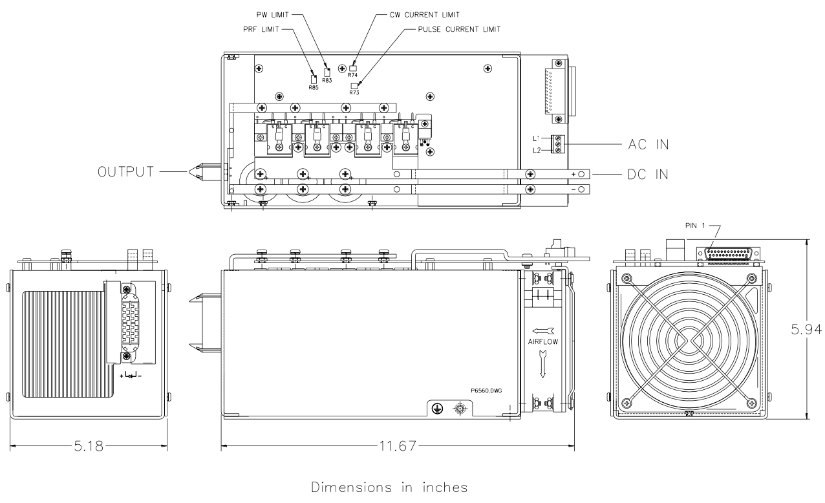

  • Model 7701 Dimensions Analog Modules

Request Quote
sku / item#: 7701A
ships: Request a Quote for Current Ship Date

Key Features
  • High Power OEM Laser Diode Driver Module
  • Output Current: up to 300 Amps in Pulsed Mode
  • Output Current: up to 50 Amps in CW Mode
  • Designed for Laser Diode Bars and Stacks
  • Forced-Air Cooling with Integrated Fan

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL 7701A
PRICE Request Price
General Specifications
  • CW Output Current: up to 50 A
  • Pulsed Output Current: up to 300 A
  • Compliance Voltage :up to 280 V
  • Pulse Rise / Fall Time: ≤ 10 µs
  • Pulse Flatness: ±2% of Peak Output Current
  • Pulse Overshoot: ≤5% of Peak Output Current
  • Power Input: DC Voltage for Laser Drive, up to 300 V
  • AC Power Input for Control Electronics: 115VAC, 50/60 Hz **
  • ** See Datasheet for Additional Specifications and Options

Product Overview:

High Power OEM Laser Diode Driver Overview

The Model 7701A laser diode driver from Analog Modules is designed to power high current pulsed laser diodes and arrays for applications such as illumination and diode-pumped solid-state (DPSS) lasers.

High power FET technology is employed and a DB-25 interface connector provides for external control of functions such as pulse enable and pulse input, current control and monitor, CW or pulsed mode select and others.

The Model 7701A provides a floating output, which is capable of driving grounded anode or grounded cathode emitters. The rugged, compact chassis and internal fan and heatsink make the Model 7701A an excellent OEM choice for driving high power DPSS lasers.

Key Features:
- DEAL FOR HIGH POWER LASER DIODES
- DIODE LOAD VOLTAGES UP TO 280VDC
- WIDE PULSEWIDTH TO 10ms
- INTERNAL HEATSINK AND FAN
- FLOATING OUTPUT
- IDEAL FOR HIGH POWER LASER DIODES
- DIODE LOAD VOLTAGES UP TO 280VDC

Why do Scientists & Engineers Choose Laser Lab Source?

  • Get DIRECT, Fast Tech-Support from the Product Engineer, No Sales Person in the Middle

  • Get the Lowest Price, Factory Direct, No Mark-Up's, Suppliers Post their Own Price

  • Get a 30 Day Evaluation Period with No Risk Return on Most Products, Check Availability
