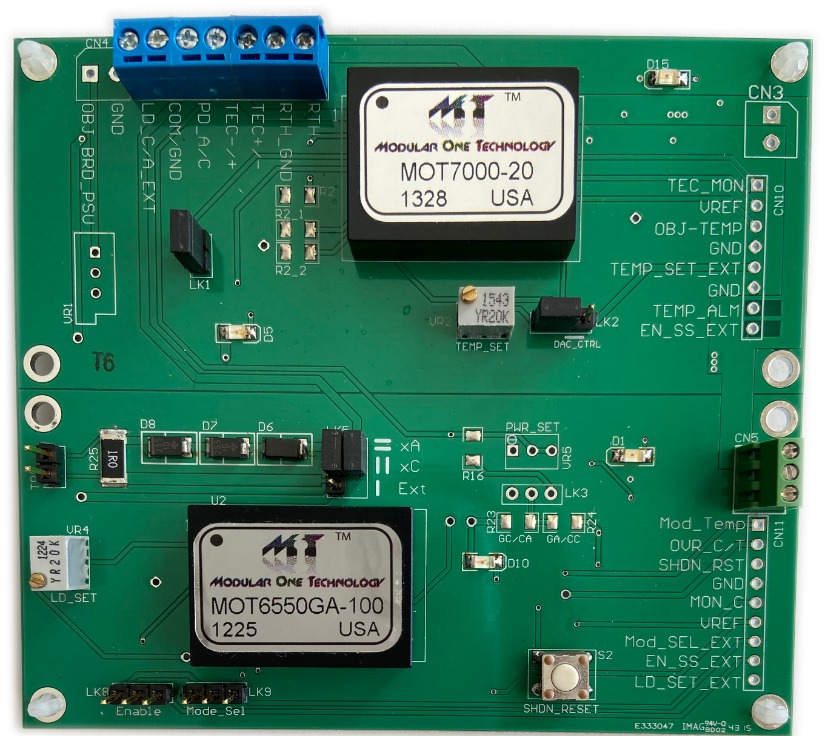

Combined Tec Controller and Laser Driver OEM Board MOT6701

$204.25   ships: 3 days | item#: RLS-MOT6701

Key Features
  • Complete solution and ready to be used.
  • Supports MOT5550xx and MOT6550xx Series laser driver modules
  • Supports MOT700x and MOT3000 Series TEC Controller module
  • On-board dummy laser load
  • Include both the laser driver and TEC controller modules.
  • Single supply 5V nominal supply for GC and dual supplies for GA modules
  • Dual mode boards can be programmed for constant current CC, or Constant power CP.
  • Stand alone or host control through convenient edge connector.
  • Fully RoHS compliant.

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-MOT6701
PRICE $204.25
MOT6701
  • Combo OEM
  • Supports all variants of MOT6550 and MOT5550 Series laser driver modules
  • Supports MOT7000 & MOT7001 and MOT3000 Series TEC Controller modules
  • Includes power supply sequencing circuit for the dual supply laser drivers.
  • Standalone or host-controlled
  • On-board dummy laser load
  • Complete evaluation and verification solution

Product Overview:

The MOT6701_ is the new version of our successfull 6700_ product with some added features and improvements including; It uses 2Oz copper to improve temperature dissipation and thermal management of the system. It includes a power sequencing circuit for laser drivers with dual supplies. It delays the negative supply until positive supply has been stabilized at switch on. It also keeps positive supply until negative supply is removed. This feature ensures that there would be no transients due to un-timely switch on & switch off. Additional filtering is added for better noise performance. MOT6701_ can be used standalone, and includes connectors which can be used for monitoring system parameters such as Laser current, TEC current and object and module temperatures. Various control signals are also available, including laser current set voltage, temperature control voltage and soft start enable functions, making it viable to connect the OEM to a host control system, further simplifying system development and implementations.
