Picosecond Pulsed Laser Diode Controller; 1.1 Amp OEM Current Source with TEC Controller

  • Pulsed Seed Laser Driver Board

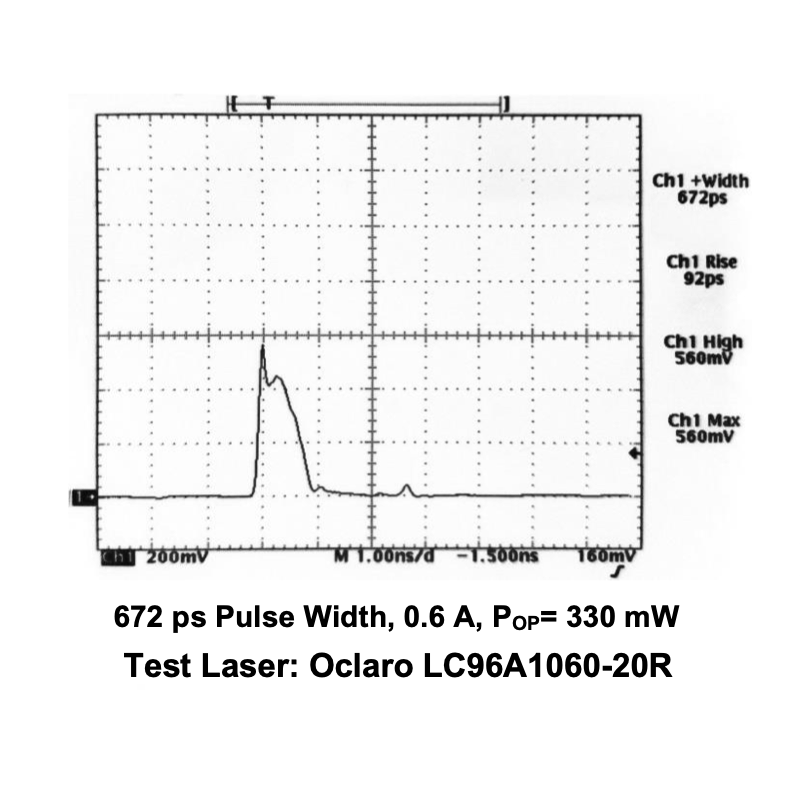

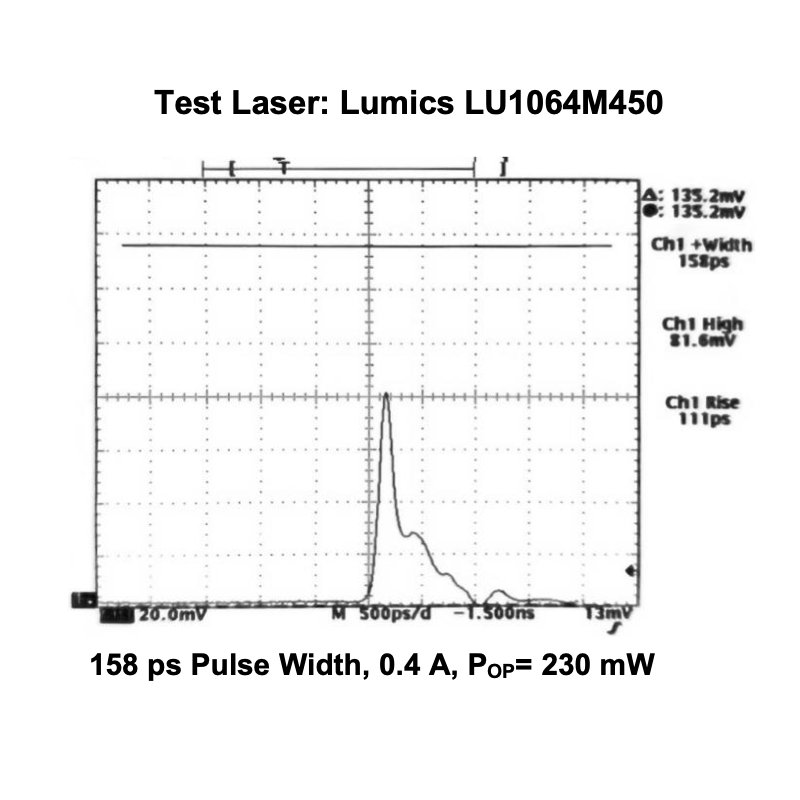

  • Analog Modules Pulsed Laser Driver Performance
  • Seed Laser Pulsed Driver
  • Analog Modules Pulsed Laser Diode Driver

Request Quote
sku / item#: 766
ships: Request a Quote for Current Ship Date

Key Features
  • Pulse Width 150 ps to 1 ns
  • Output Current up to 1.1 Amps, 5.6 Watt TEC Controller
  • Solder Pads for14-Pin Butterfly Laser Diode Mounting
  • Laser Diode Protection Circuits

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL 766
PRICE Request Price
General Specifications
  • Output Current: 0.1 - 1.1 Amps
  • Compliance Voltage: 10 Volt
  • Pulse Width: 150 ps to 1 ns
  • Repetition Rage: Single Shot - 1 MHz
  • Optical Rise Time: 100 ps **
  • ** Determined by Laser Characteristics
  • TEC Current: 1.8 A
  • TEC Voltage: 3.14 V
  • Power Input: 4.75 - 5.25 V, 2.5 A (max)
  • Heat Dissipation: Heatsink Required for Laser Diode Mounting

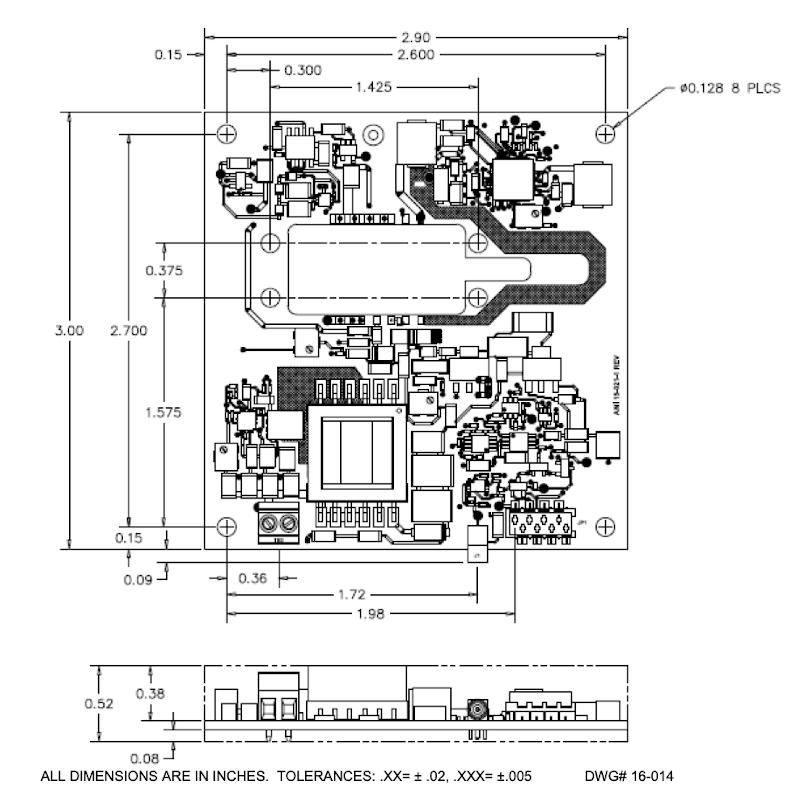

  • Dimensions: 2.9" x 3.0" x 0.52"
  • Refer to Datasheet for Additional Specifications

Product Overview:

Pulsed Seed Laser Diode Driver Overview

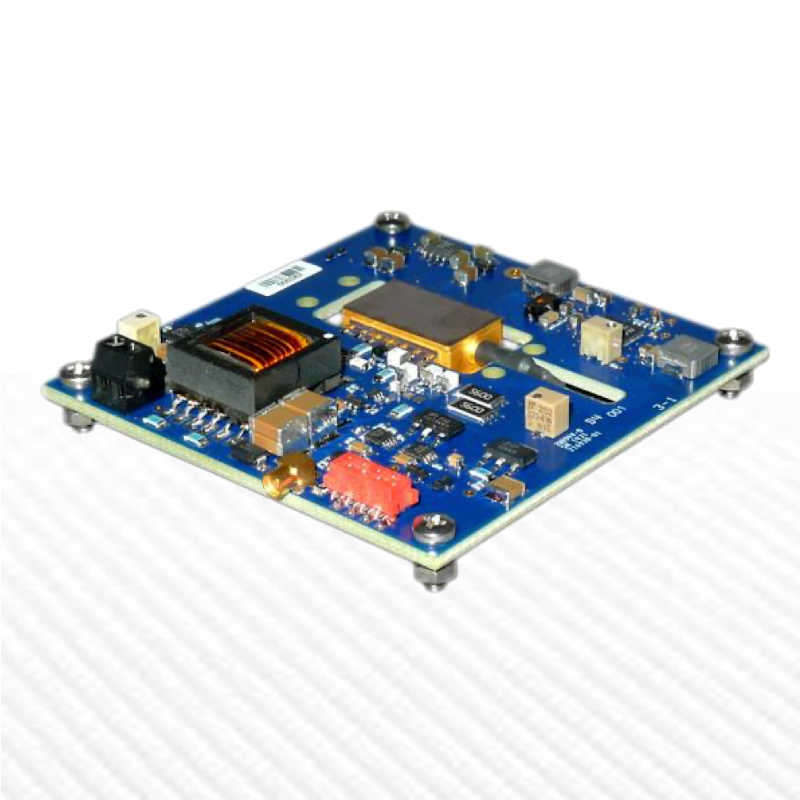

AMI’s Model 766 OEM seed laser diode driver drives 14-pin butterfly packaged laser diode modules for use in pulsed fiber systems. The OEM circuit board is designed so that the butterfly laser package is soldered directly to the circuit board in order to ensure the best picosecond pulse capability.

Applications include materials processing, LIDAR systems for remote sensing, fiber optic temperature sensing, laser communication and range finding. The driver circuitry operates from a single 5V power source; other on-board voltages are generated by integrated high efficiency switching power supplies. The 766 is manufactured to the RoHS Directive 2002/95/EC requirements. All required mating cables are included.
