Oven Industries, PC Programmable OEM TEC Controller

$173.00   Ships: Contact | Model RLS-01151

Key Features
  • Low Cost 0.1°C Set & Measurement Resolution Laser Diode TEC Temperature Controller
  • The 570 series is a very affordable laser diode TEC controller that delivers up to very stable output power and protects your device under test from thermal damage.

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-01151
PRICE $173.00
Specifications
  • Control & Measurement Stability: ± 0.1°C
  • Output Voltage to TEC: 0 to 36 VDC
  • Load Current: 0.1 to 12.5 A
  • User adjustable Integral Rate
  • Temperature Control Range: -20 to 150°C
  • Control Stability: ± 0.1°C
  • Input Voltage: 6 to 28 VDC
  • 1 Khz base frequency PWM output
  • 1.79” H x 3.5” W x 3” D
Options

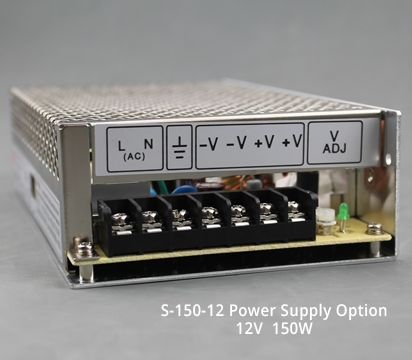

  • S-150-12; 150W 12V Power Supply: $45.00

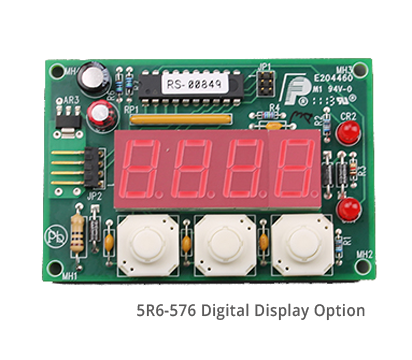

  • SR6-576; Digital Display: $115.00

Product Overview:

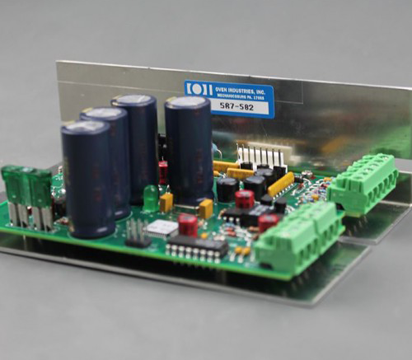

This low cost board level temperature controller offers a proportional integral control algorithm to provide precise control to thermoelectric (Peltier) modules. The H bridge control provides a seamless transition between heating and cooling. An integrated Green LED indicates heat mode, and a blue LED indicates cooling. Simultaneous illumination indicates the load circuit is off due to an open sensor. Pulse Width Modulation controls the power level in the thermoelectric module.
