Low Cost, Oven Industries OEM TEC Controller

Request Quote
sku / item#: RLS-01155
ships: *** This product is currently unavailable **

Key Features
  • Low Cost 0.01°C Set & Measurement Resolution TEC Temperature Controller
  • Full PID Control
  • Adjustable On-Board or by PC Interface

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS-01155
PRICE Request Price
Specifications
  • Full PID Control
  • Temperature Set Point Resolution: 0.01°C
  • H-Bridge Thermoelectcric Cooler
  • Control PC Programmable: RS-485
  • PC Configurable Alarm Circuit
  • Set Temperature range of –40 to 250°C
  • Output Voltage to TE Cooler: 0 to 36 VDC
  • Load Current: 0.1 to 25 A
  • Integral: 0 to 10 repeats / minute
  • Derivative: 0 to 10 minutes
  • PWM Base Frequency: 2.7 Khz
  • Input Supply Voltage: 12 to 36 VDC
  • Process Control Rate: 90 time per second
  • 2” H (2.64” with HS) x 6” W x 3.63” D
Options

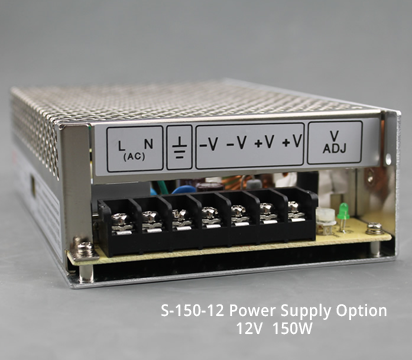

  • S-150-12; 150W 12V Power Supply: $45.00

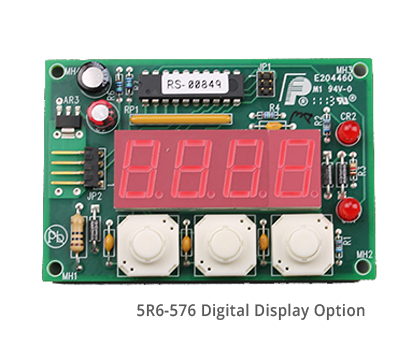

  • SR6-576; Digital Display: $115.00

Product Overview:

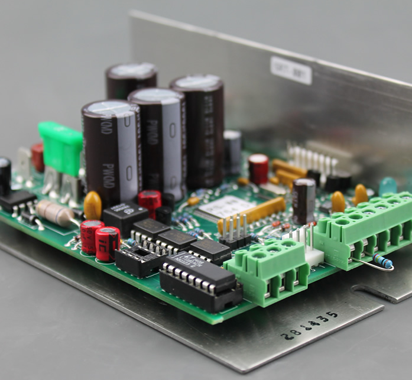

This low cost board level laser diode temperature controller offers a full PID control algorithm to provide precise control to thermoelectric (Peltier) modules. The H bridge control provides a seamless transition between heating and cooling. An integrated Green LED indicates heat mode, and a blue LED indicates cooling. Simultaneous illumination indicates the load circuit is off due to an open sensor.

User friendly PC software makes it easy to change control configurations through the RS232 interface. Once the controller ahs been set-up, the computer may be disconnected and the controller becomes a stand alone unit or the computer can remain connected for data acquisition. The temperature may also be set through the optional display or remote potentiometer. The load circuit is pulse width modulated at 2.7 Khz.
