Laser Power Supply, 500 mA

$287.00   Ships: in stock | Model RLS-FL591

Key Features
  • Constant Current or Constant Power mode settings
  • Drive 2 channels up to 250 mA each or a single channel up to 500 mA
  • Wide supply voltage range: +3 to 9 V
  • Adjustable current limits
  • Slow-start laser diode protection
  • Brownout protection
  • 3dB Constant Current Bandwidth: 500 kHz

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-FL591
PRICE $287.00
General SPECIFICATIONS
  • Laser Output Current: 250mA per channel or 500mA paralleled
  • Size: 3.25 x 2.5 x 1.125 inches
  • Weight: 1.6 ounces
  • Supply Voltage: 3 - 9 Volts
  • Quiescent Current (Maximum): 100mA (9V)
  • Modes: Constant Current or Constant Power
  • Operating Temperature: 15°C to 45°C
  • Storage Temperature: -55°C to 125°C

Product Overview:

SIMPLE AND FAST EVALUATION

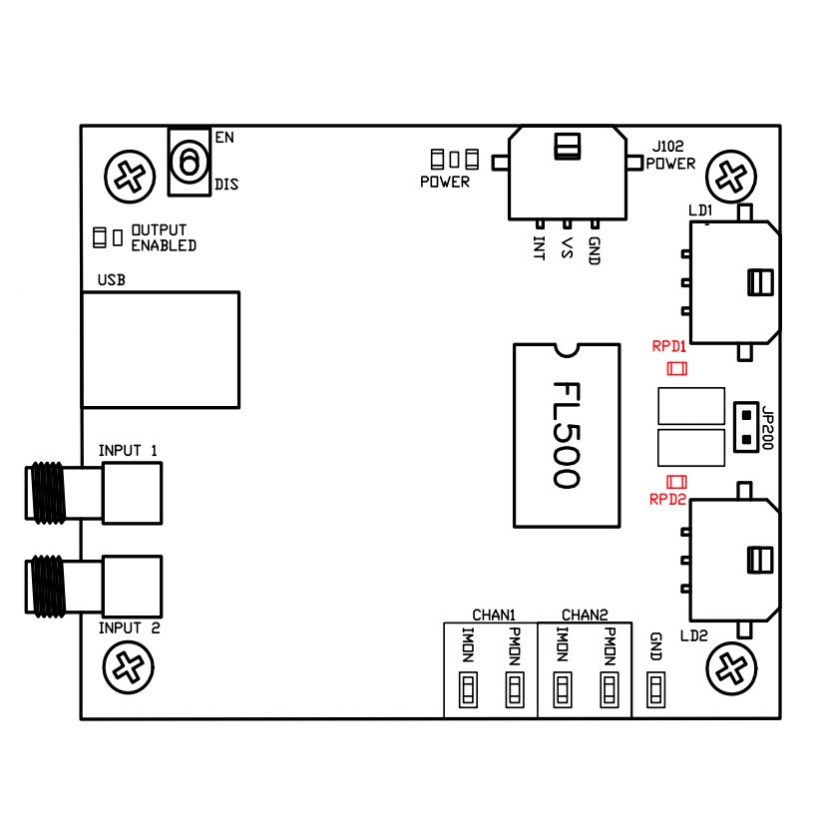

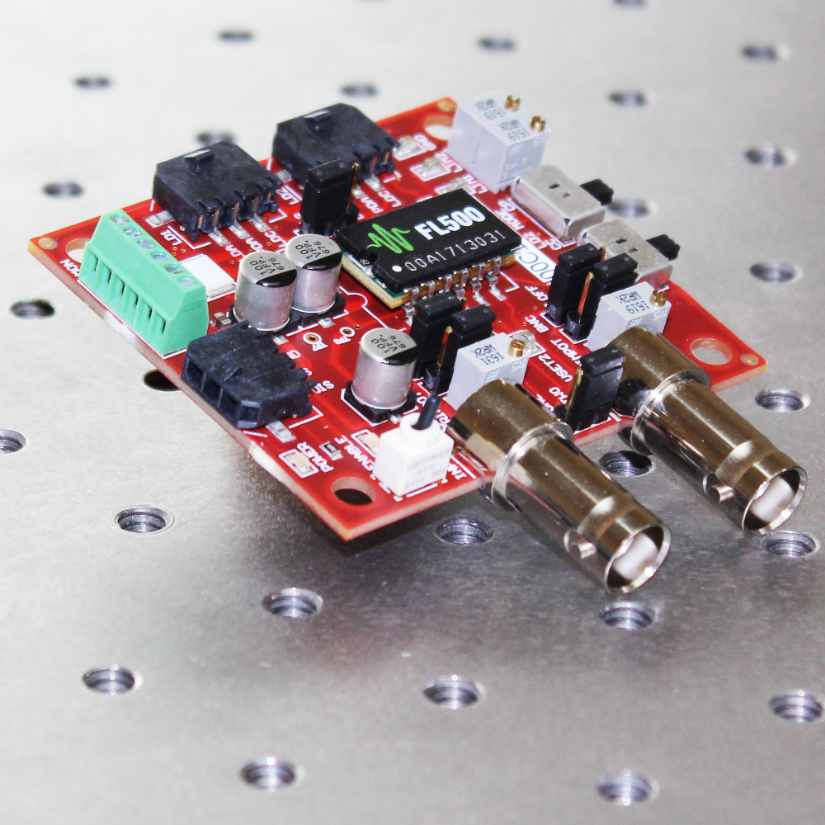

The FL591FL Evaluation Board allows you to quickly and efficiently evaluate the FL500 Laser Diode Driver and prototype your laser electronics system. The evaluation board is designed so that you can fully characterize the included FL500 — you’ll know exactly how it will perform in your application, and there will be no surprises during the development process. Ultimately, you’ll bring your system to market faster and at lower cost.

DESIGNED FOR MAXIMUM VERSATILITY

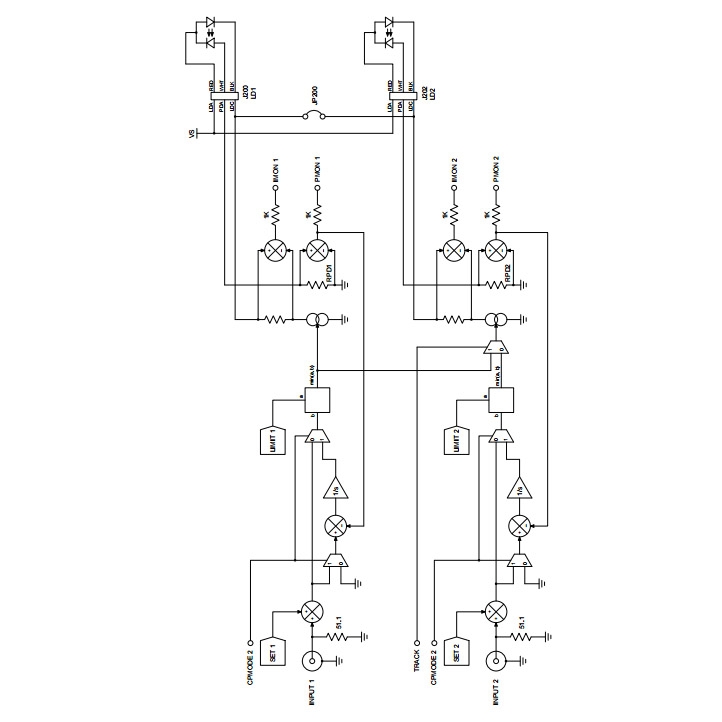

The FL591FL is loaded with useful features to help simplify the prototyping process. For example, there are several setpoint-output combinations:

  • Two independent outputs, each driving up to 250 mA, and controlled by separate setpoint signals
  • Two independent 250 mA outputs controlled by a single setpoint signal
  • A single output, driving up to 500 mA

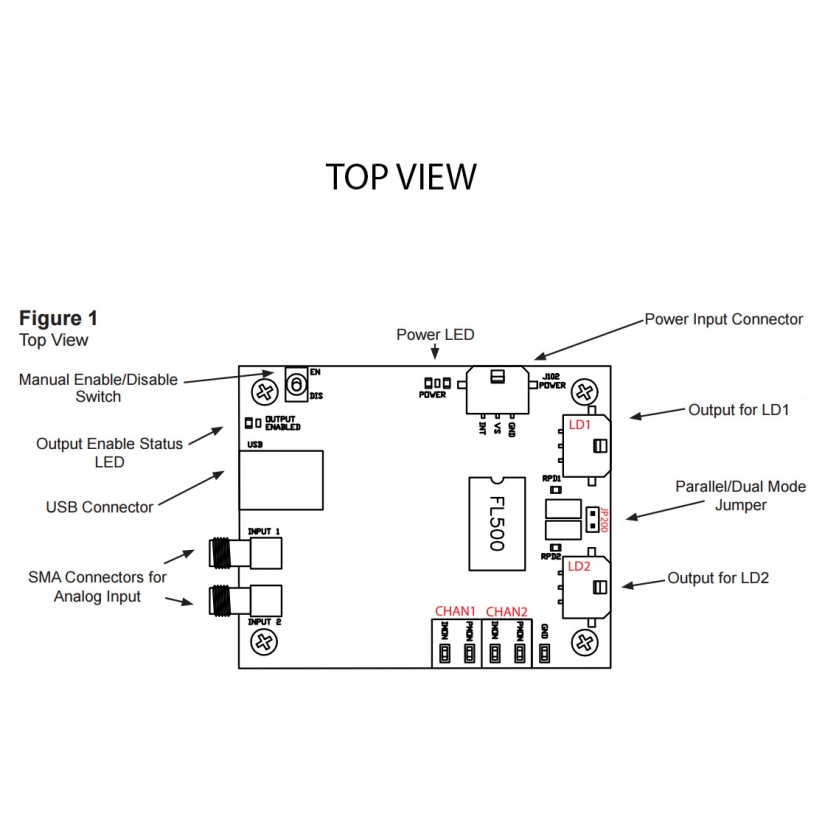

The current limits are set using onboard trimpots, and without enabling the output. The setpoint is controlled using the onboard trimpots, or use the BNC connector for external control, or the two can be summed. Summing the setpoint signals makes modulating a laser easy and foolproof.

The control mode — Constant Current or Constant Power — is set with onboard switches. When operated as two independent drivers, the two channels can be operated in different modes.

MORE PRACTICAL FEATURES
Thoughtfully designed features provide valuable benefits and protect the laser against operational anomalies:
  • An external signal is required to enable the output; this Enable input can be connected to a safety interlock, or coupled to a temperature controller that will disable the output if the lasers exceed a safe operating temperature.
  • Drive current and photodiode current monitor outputs can be tied to an external control and monitor circuit so you can characterize every aspect of your laser control system.
  • Easy access to the setpoint and current limit reference signals for design evaluation and validation of your laser control electronics.
