High Power 200 Amp Pulsed Laser Diode Driver

Request Quote   Ships: 2 Weeks | Model 774A

Key Features
  • 50 to 400 MICROSECOND PULSE WIDTHS
  • OUTPUT UP TO 200A, 40V PULSED
  • ≤ 45µS RISETIME
  • 50 TO 400µS PULSES, 27W MAX.
  • UP TO 1.33J PER PULSE
  • 70% EFFICIENCY

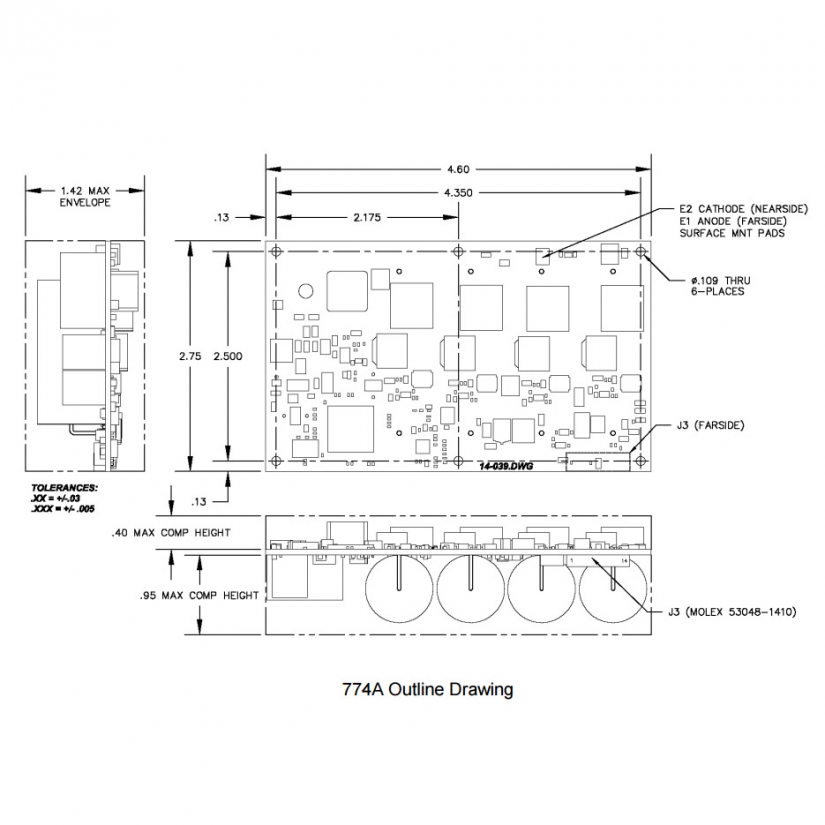

  • COMPACT 4.6" X 2.75" X 1.4"

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL 774A
PRICE Request Price
General SPECIFICATIONS
  • Input Voltage: +19.6 to +32VDC
  • Output Voltage: 24 Volts to 40 Volts
  • Current: 200 Amps Pulsed
  • Polarity: Floating output; neither anode nor cathode can be grounded
  • Off-State Current: < 100mA
  • Risetime: < 45 micro-sec
  • Avg. Power (load): 27W (at 20Hz)
  • Pulsewidth: 50 to 400 micro-sec
  • Cooling: Natural convection (no heatsink required)
  • Protection: Thermal shutdown, Open circuit, Short circuit
  • Size & Weight: 4.6” x 2.75” x 1.4”; 7.0 oz
  • Temperature: -30C to +50C operating, -45C to +60C storage

Product Overview:

AMI’s Laser Diode Drivers incorporate over thirty years of industry experience in providing end users with active current control and protection for their laser diode.  AMI offers a wide variety of drivers for the expanding number of diode pumped and direct output laser diode applications.

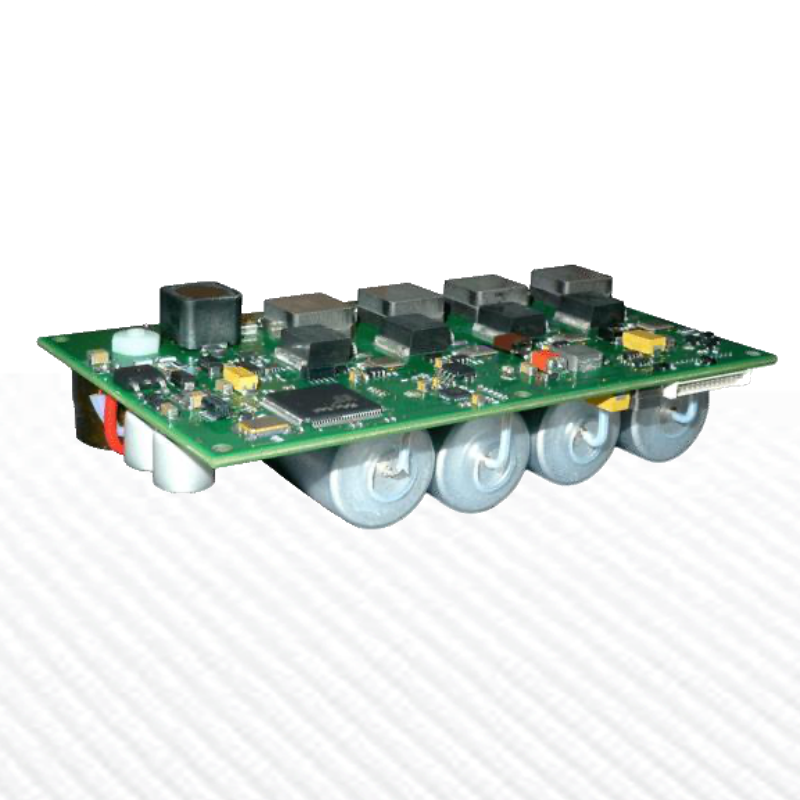

The Model 774A is a highly efficient and robust pulsed laser diode driver which is offered for military applications. It is designed to supply pulsed high current for laser diode stack loads. These drivers are low voltage DC input power converter/laser diode drivers designed to supply pulsed high current for stacks loads in applications such as missile, ground vehicle, ship, and airborne applications.

The Model 774A offers a very stable performance over a long lifetime. It exemplifies this technique and delivers up to 200 amps at 44 volts (8kW peak).  It includes a power converter stage to charge up the storage capacitor from a variety of inputs and a very high quality sealed storage capacitor.

The pulsed output current is 200A with ≤ 45μs risetime into diode stacks of 24V to 40V at an average power to the load of 27W at 20Hz. The driver weighs 7.0 oz. in a compact package.

This unit does not require a heatsink and offers open circuit, short circuit, and thermal overload protection.

Please contact AMI to discuss your OEM requirements. Other input voltage and output current/voltage ranges available.
