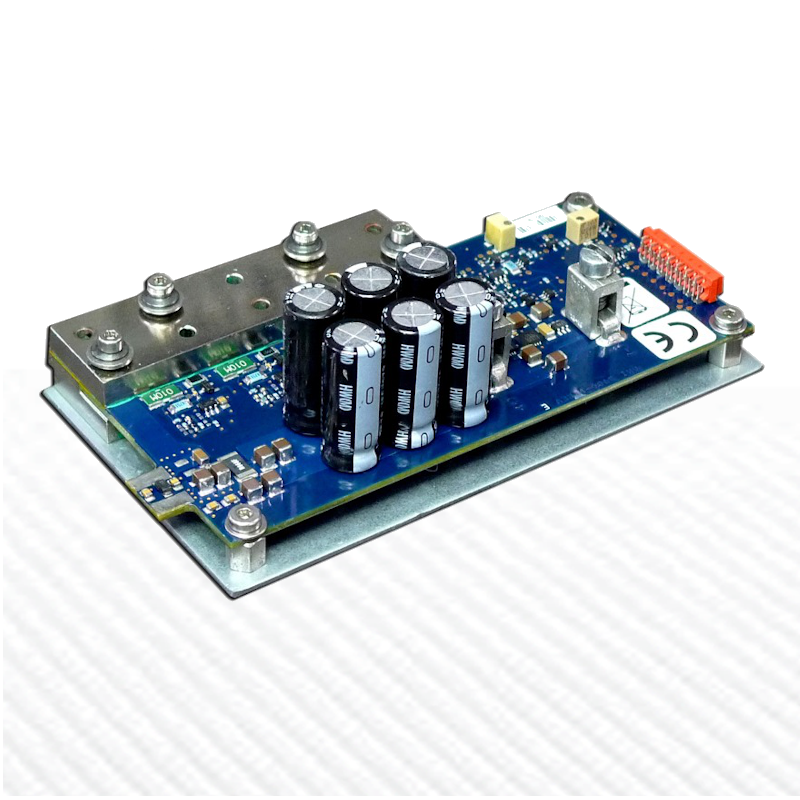

Laser Diode Driver Module, QCW and CW

Request Price   Ships: 2 Weeks | Model 785

Key Features
  • Output Current up to 20 Amps
  • Output Pulsewidth: ≤10µs To CW
  • Compliance Voltage: Up to 14V
  • Extremely Low Output Ripple
  • Analog Pulse Shaping
  • RoHS Compliant

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL 785
PRICE Request Price
General SPECIFICATIONS
  • Current (Laser): 20A
  • Control Voltage: Up to 5V
  • Control Voltage: Up to 5 V
  • Input Power (Driver): +10.0 to +14.0 VDC
  • Power (Laser): +3.0 to +15.0 VDC
  • Pulse Source (TTL): 2.2 to 5 V
  • Enable (TTL): 2.2 to 5 V
  • Output Current: 0 to 20 A
  • Compilance Voltage: 1.5 to 14 V
  • Pulse width: 10 to CW micro sec
  • Duty Cycle: up to 100%
  • Modulation Bandwidth: Up to 600 kHz
  • Risetime at 20A (10% to 90%) 400 to 1000 ns
  • Protection: Over Temperature, Over Current, TTL Output, latched
  • Cooling: Provisions for forced air, TEC and water cooling

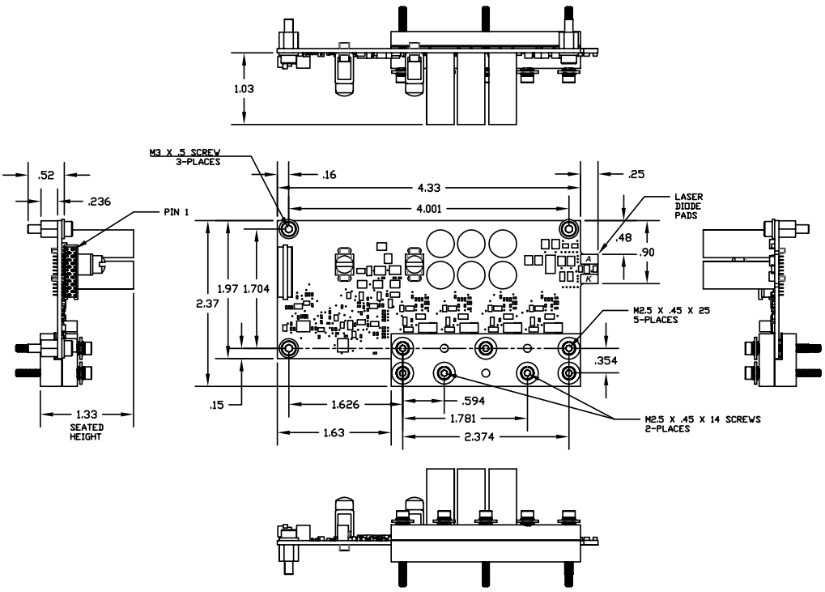

  • Size: 4.33"x2.37"x1.24"
  • Weight: 6.4oz

Product Overview:

The Model 785 laser diode driver is a high power, medium speed, analog current source driver that is ideal for compact industrial and medical direct illumination applications that require extremely low ripple and/or pulse shaping.  Proprietary technology allows AMI to offer a 0-20A, 1.5-14V driver with industry leading output current stability and small footprint.

The Model 785 laser diode driver is a high power, medium speed, analog current source driver. It is designed to be driven by a group of analog and digital signals designed to be driven by a group of analog and digital signals. Its status outputs are both analog and digital and the ripple and noise are much superior to those of a switching driver.

Output pulse widths of 10µs to CW are possible with modulation capability up to 600kHz. The input, output signals and power for the electronics are connected via 1ea. - 14 pin Tyco MicroMatch Connector P/N 8-215460-4. The mate for this connector is Tyco P/N 8-215083-4.

The Model 785 pulsed laser diode driver is designed to operate from a DC voltage source of +10V to 14V at 100mA maximum current delivered to the unit via the 14 pin connector and processed on the board to operate the drive electronics.
