150 Amp High Power Laser Diode Driver

Request Price   Ships: 2 Weeks | Model 880D

Key Features
  • Output Current: up to 150 Amps Cw
  • Laser Diode Voltage: up to 200 VDC
  • Quasi-CW Operation: <100us Rise Time
  • RS-232 Port For Remote Control

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL 880D
PRICE Request Price
General SPECIFICATIONS
  • Output Current: 0 - 150 Amps CW
  • Input: 208 VAC, three phase, 50/60Hz input
  • Rise/Fall time: <100 µs (with external pulse input)
  • Diode Voltage: Up to 200V
  • Power: Up to 6kW
  • Ripple Current: 0.9 Amps RMS at 150 Amps CW
  • Leakage Current: 75µA at 150 Amps CW (typical)
  • Temperature: 0° to 40°C
  • Connections Controls: Interlocks via 15 pin D
  • RS-232 via 9 pin D
  • Low inductance output cable
  • Power: 4-pos terminal block

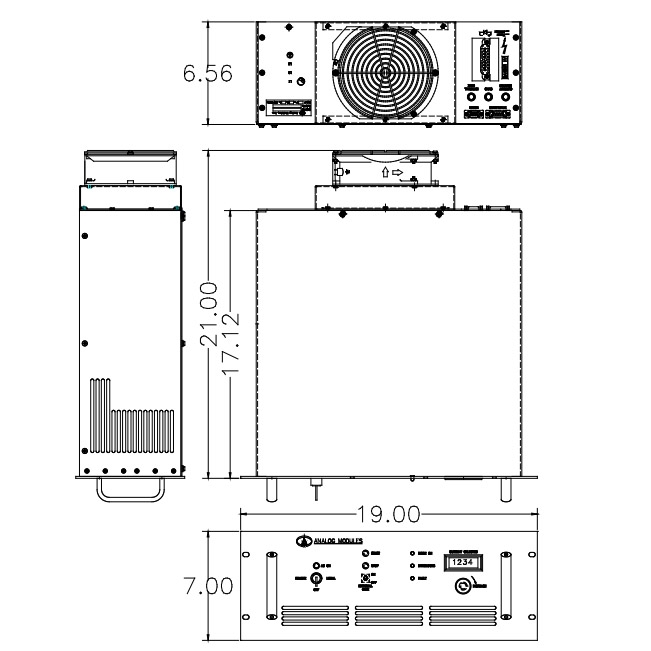

  • Front Panel: 7” x 19”
  • Chassis: 6.5” x 17” x 17”
  • Weight: 35 lbs. (14.4 Kgs.)

Product Overview:

Analog Modules, the leading manufacturer and designer of laser modules and laser sensors, offers high power CW laser diode controller for laboratory and bench top laser diode driver applications.

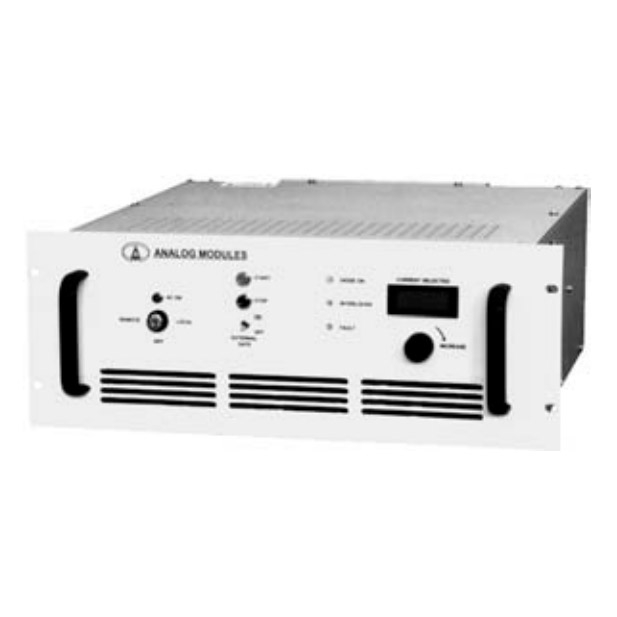

The Model 880D is strictly for CW applications. This turn-key rack mount system provides output current to drive laser diodes for pumping solid-state lasers. The output current is presented on an easy-to-read LCD display. It is an excellent prototyping tool that allows the laser developer flexibility to determine the best laser diode and drive for their end use. Once the final requirements are defined AMI can help specify and design an OEM driver tailored to your application that will have a lower cost, high reliability, and a small footprint.

The Model 880D CW diode controller offers higher average powers at a reduced price. It can be configured with two or three internal power modules to provide up to 6kW for CW diode loads. Control of the Model 880D can be achieved from the front panel or remotely via an RS-232 interface. An external gate input allows for quasi-CW operation of the Model 880D.

The Model 880D Laser Diode Controller provides CW output currents to drive laser diodes for pumping solid-state lasers.
