Precision OEM Laser Diode Controller

$2250.00   Ships: 1 week | Model LDCSLT02

Key Features
  • Small Form Factor, High Stability OEM Laser Diode Control Module
  • 500mA Current Source, 16 Watt TEC Controller
  • Includes RS-232 Interface, USB or Ethernet Optional
  • Remote Control via RS232 and USB and Ethernet
  • Single Supply Voltage
  • Prepared for 12V Battery Operation

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL LDCSLT02
PRICE $2250.00
Laser Diode Driver / Current Source
  • Output Current Range: 0 - 500mA
  • Current Setpoint Resolution: 0.1mA
  • Current Setpoint Accuracy: ±0.1%
  • Noise (10Hz to 10MHz): < 1μA (see attached Noise Density image)
  • Compliance Voltage: 0 - 7V
  • Photodiode Current Measurement Range: 2-2000uA
Temperature Controller / TEC Controller
  • Type: Constant Current Source Bridge
  • Compliance Voltage Range: 0 to 8V
  • Output Current Range: -2A to 2A
  • Maximum Power: 16 Watts
Laser Diode Protection
  • Exclusive clamping current limits
  • Output shorting circuits
  • slow-start turn-on
  • Power-line transient suppression with AC line filters
TEMPERATURE SENSOR
  • Temperature Sensor Thermistor: NTC (ie 10K NTC)
  • IC Temp Sensor: AD590
  • Temperature Control Range: -5°C to 30°C
  • Setpoint Resolution: 0.1°C (-5°C to 30°C)
General
  • Dimensions (WxHxD) 170mm x 140mm x 42 mm
  • Line Voltage 110V .. 230V
  • Line Frequency 47 .. 63Hz
  • Operating Temperature 0°C .. 40°C

Product Overview:

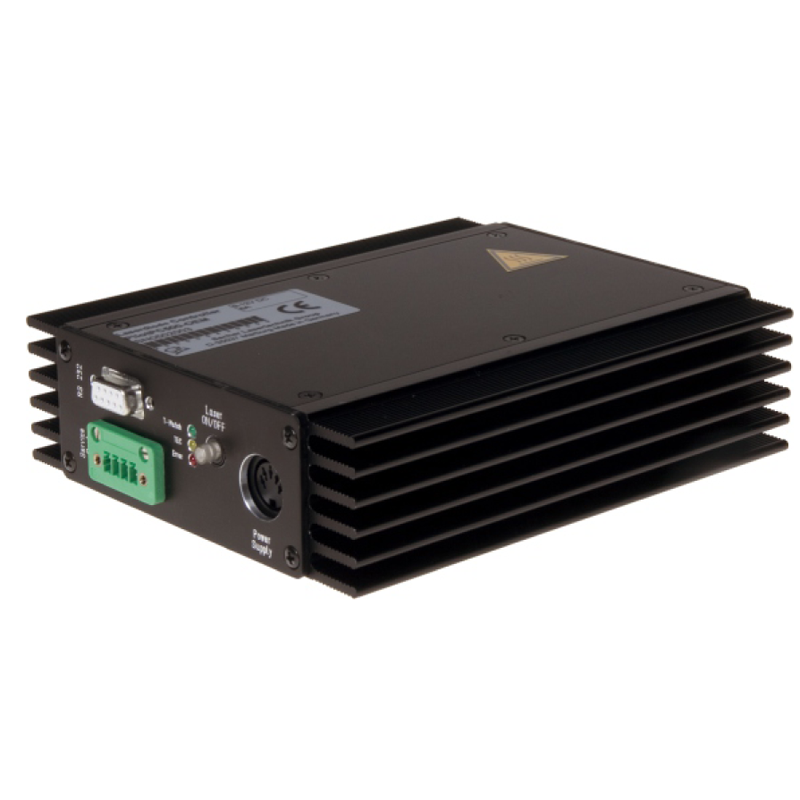

The PilotOEM Laser Diode Controller from Sacher LaserTechnik is a high precision controller optimized for OEM applications. This controller offers high stability control in a very small form factor module.

The PilotOEM from Sacher LaserTechnik is a laser diode current source together with a laser diode temperature controller combined in one OEM instrument designed for butterfly packaged lasers. All functions can be remotely controlled via RS232 interface.

The PilotOEM represents more than 15 years of experience in precision laser system development for laboratory and industrial environments.
