1.5 Amp Laser Diode Driver, Ultra-Compact, Multiple Communications Interfaces

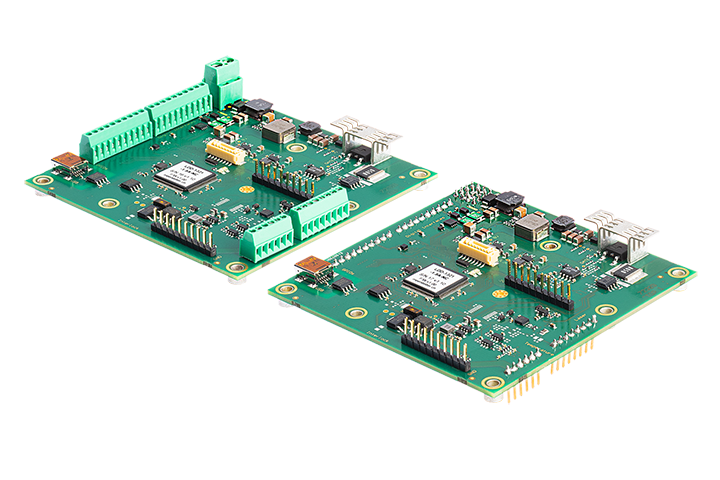

  • ldd-1321-6

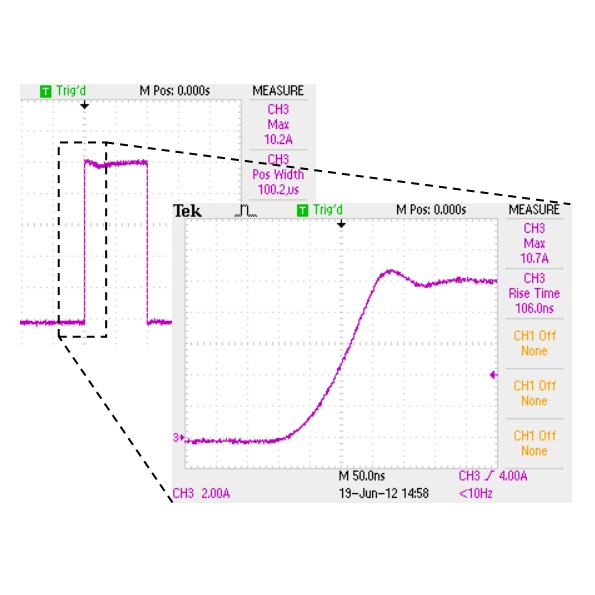

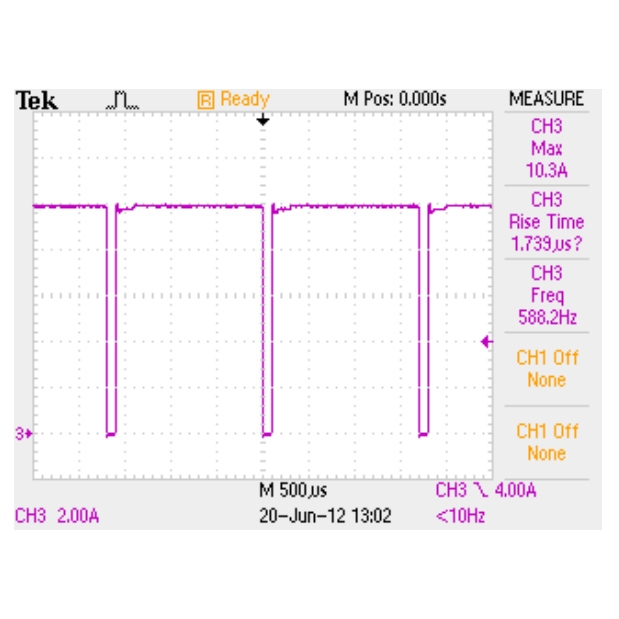

  • Pulsed 15 Amp Driver for High Power Laser Diodes Pulse chart
  • Pulse Driver for High Power Laser Diodes
  • ch-image

$572.00
sku / item#: LDD-1321 / LASER-DIODE-DRIVER
ships: Request a Quote for Current Ship Date

Key Features
  • Easy set-up and configuration with provided GUI software
  • Multiple interface options: USB, RS485, RS232 TTL, CANopen
  • Optional TEC controller plug-in daughter board (request part number / price)
  • 90 mm x 90 mm x 20 mm
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDD-1321 / LASER-DIODE-DRIVER
PRICE $572.00
Specifications
  • Current Output Range: 0 - 1.5 Amps
  • Voltage Range: 0 - 14 Volts
  • CW Current Setpoint Resolution: 0.1 mA
  • Operation Temperature: 0 to 70°C
  • Storage: -40 - 70°C
  • Humidity: 5 to 95%
Required Input - Power Supply
  • DC Input Voltage: 12 to 24 VDC
  • Maximum Supply Voltage (DC): 27V
  • Maximum Supply Current (DC) : 7A (Fused)
Communications
  • USB (isolated) • RS485 • RS232 TTL • CAN
  • Control Software Included
Dimensions
  • 90 mm x 90 mm x 20 mm

Product Overview:

LDD-1321 Laser Diode Driver Overview

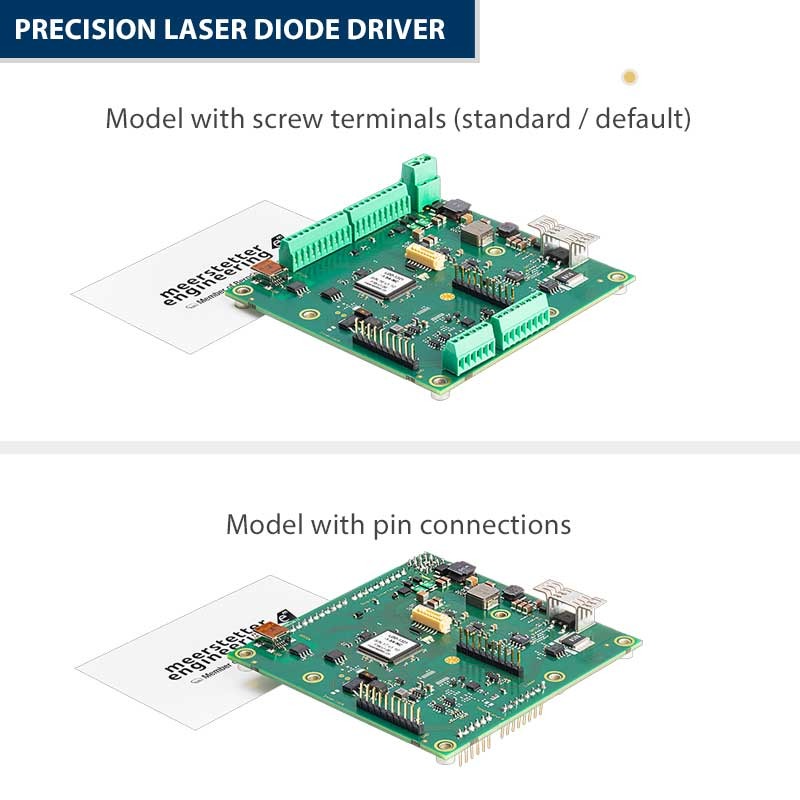

The model LDD-1321 laser diode driver provides precise and consistent output current and voltage for electrically biasing semiconductor lasers .The LDD-1321 is equipped with many protection features for laser diodes, including two inputs for laser diode temperature monitoring. The LDD-1321 is also easy to integrate into an existing system as it provides both digital and analog ports for high connectivity and supports the MeCom interface protocol, for which we offer free computer software solutions. No extensive programming skills are required - the interface and software are easy to use and set up. In addition, the laser diode driver is equipped with connectors designed for seamless integration with our PWR-1191 plug-in TEC Driver board. This board features a bi-directional current driver that enables full TEC Controller functionality for the entire device, providing you with an excellent combination for a safe and stable laser application.

Applications range from medical and cosmetic devices (ophthalmology, laser hair removal) to telecommunications and entertainment (laser light shows). Other applications for our LDD-1321 include:
- Medical Devices - Fiber Optic Communication - Laser Printing and Scanning - Material Processing - Biotechnology and Spectroscopy - Scientific Research
