Hybrid Laser Diode Control Electronics & Butterfly Package Mounting Module
- 3 Amp Laser Diode Bias Current Range- 16W TEC Controller- Butterfly Mounting Socket
$863.50 sku / item#: SF8300-ZIF14 ships: Request a Quote for Current Ship Date
- Optimized for Pump Laser Diodes
- Soft-Start Current Ramp, Current Limit and Temperature Limit for Laser Diode Protection
- 3 Amp Laser Diode Bias Current Range
- 16 Watt Laser Diode TEC Controller

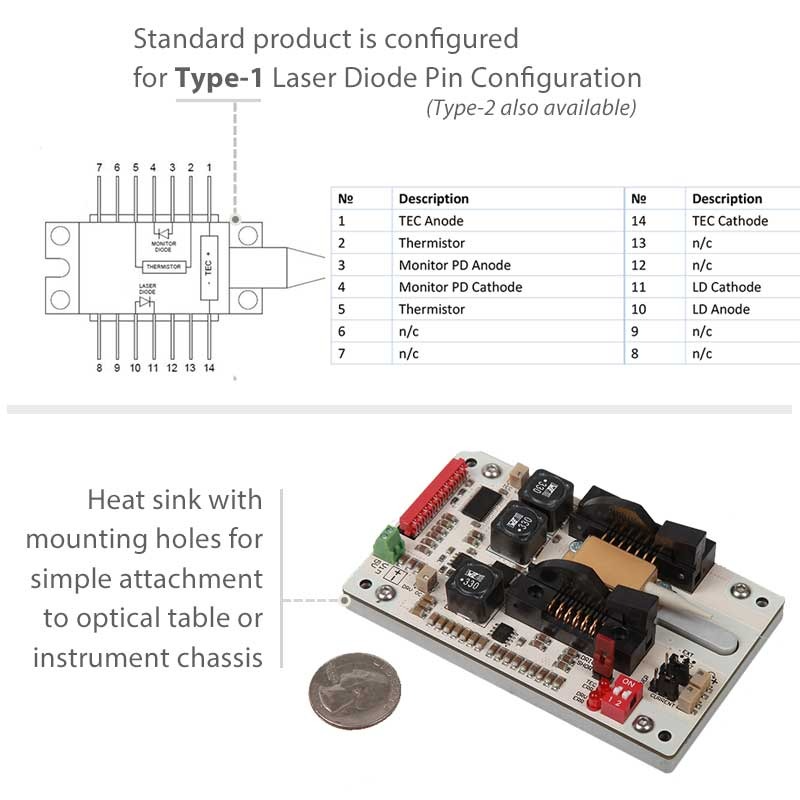

- Pre-Wired Azimuth ZIF Socket for Butterfly Mounting
- Integrated PID controller

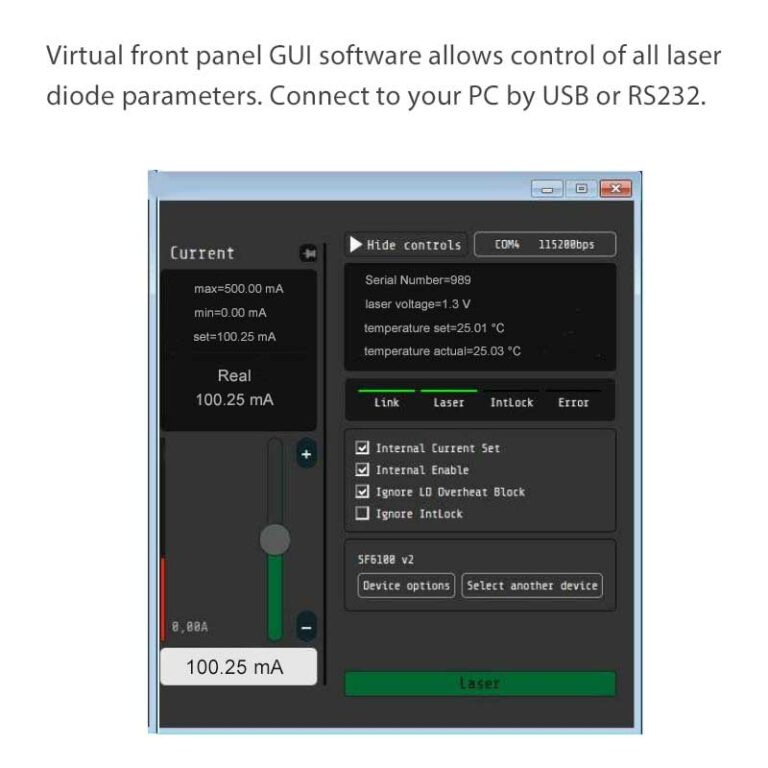

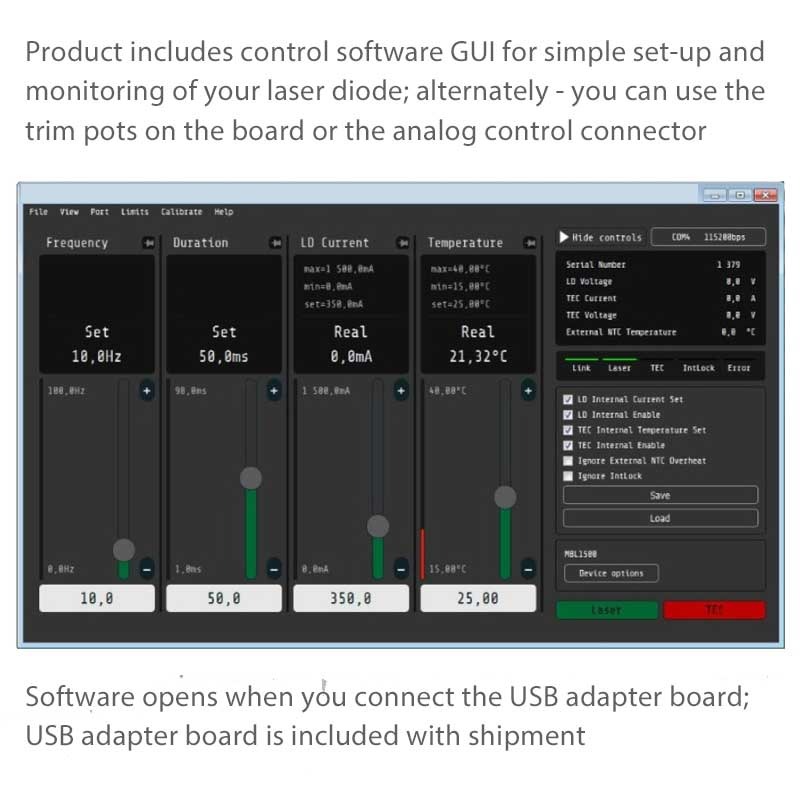

- Free Control Software with GUI ---------------------------5% Discount for Orders > 5 Units
Price and Delivery Quote
Buy Now / Add to Cart
5% Discount on Orders > 5 Units

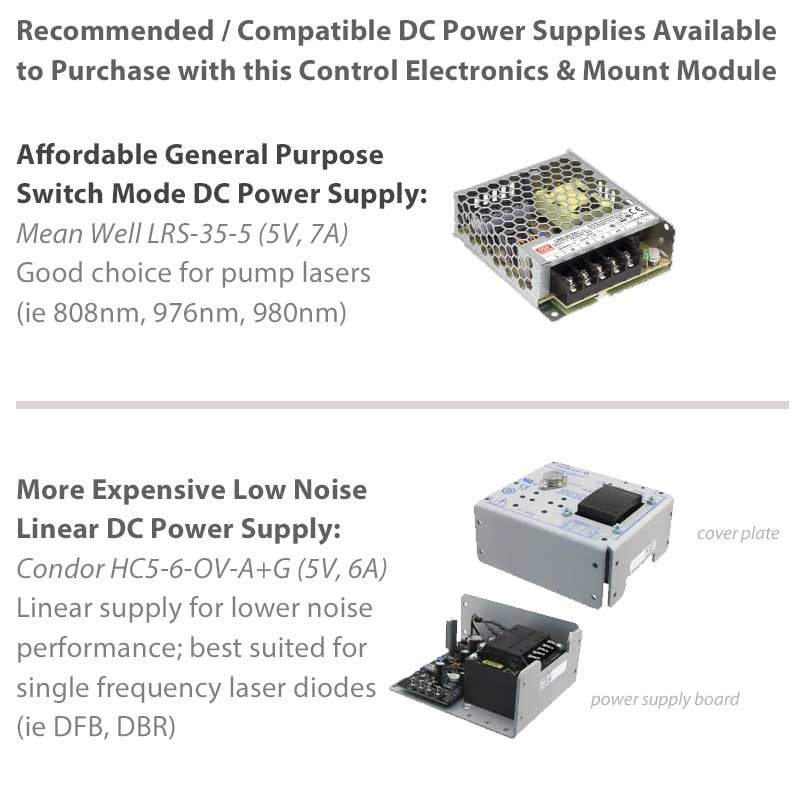

Purchase the Recommended Linear or Switching
Power Supply for this Laser Diode Controller
Technical Questions for this ProductASK AN ENGINEER
Customers Also Considered:
|CURRENT, VOLTAGE & TEC CONTROLLER|
|Laser Diode Protection|
|DIMENSIONS AND WEIGHT|
|SHIPPING KIT (INCLUDED PARTS)|

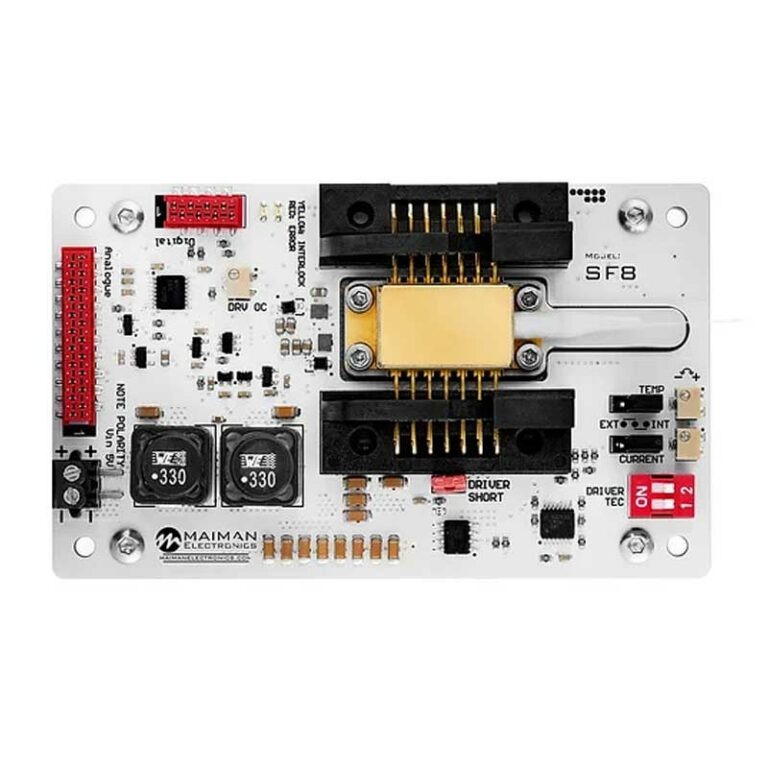

Advanced Performance Laser Diode Control and Mount Module

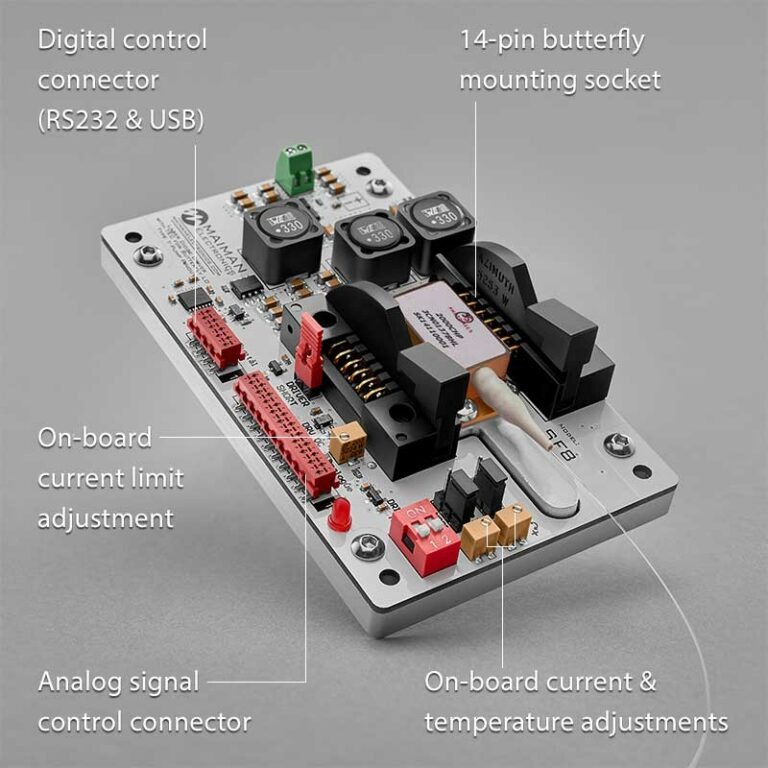

These hybrid laser diode control electronics and mounting modules offer an all-inclusive, high performance solution for controlling butterfly packaged laser diodes. These controllers are an excellent choice for integration into a laser system product or as an affordable solution for laboratory test set-ups. Key features of these modules include a low noise laser diode current source to safely electrically bias your laser diode, an integrated TEC / temperature controller and a 14-pin butterfly package mounting socket. They also include multiple control interface options to enable you to control all of the parameters of your laser diode. Interfaces include on-board potentiometers, an RS232 interface, a USB interface and an analog control signals connector.
Small Footprint Complete Control Solution

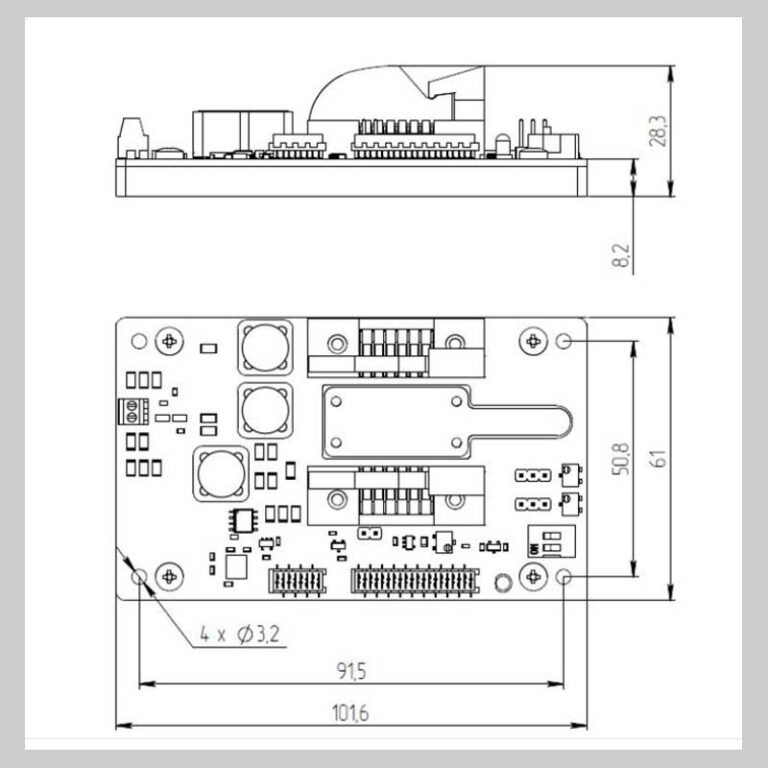

These modules are the smallest footprint controller which is commercially available. Careful selection of components and and exacting design criteria allows the modules to provide complete control of your pump laser in a 61mm x 101mm package. They have a 10mm thick aluminum base plate which provides excellent heat dissipation and keeps the laser diode safely operating within your desired operating temperature range. The module base plate comes with 4 mounting through-holes, 3.2mm each, to bolt the module directly to an instrument chassis or any thermally conductive surface.
View SF8xxx Series Model with solder pads.
