Pulsed High Power Laser Diode Driver

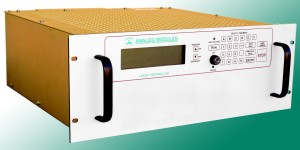

  • 	300 Amp analog modules high power driver

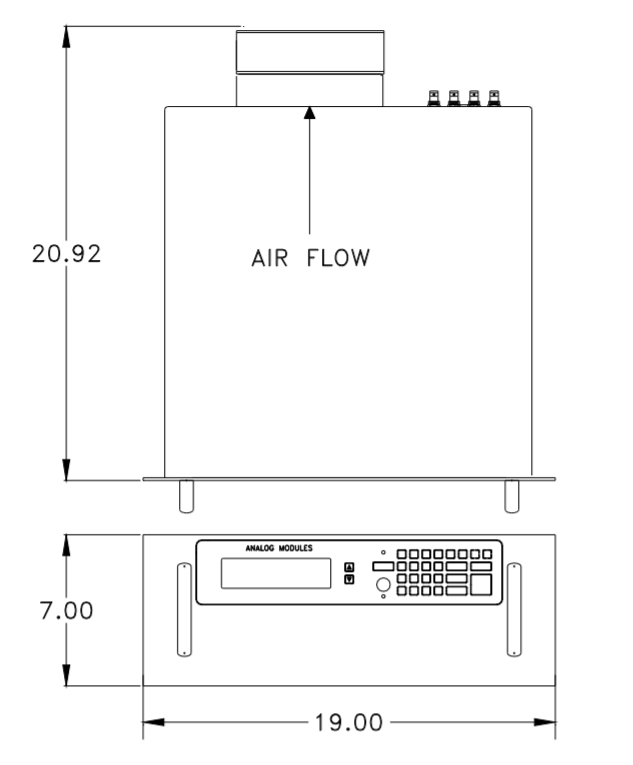

  • High Power Laser Diode Driver Dimensions

Request Price   Ships: 2 Weeks | Model 8800D

Key Features
  • Variable Pulse Width: 50μs to 5ms
  • Pulsed Output Current up to 300 Amps
  • Microprocessor Controlled
  • Laser Diode Voltage: up to 280 VDC

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL 8800D
PRICE Request Price
General SPECIFICATIONS
  • Output Drive Current: up to 300 Amps peak
  • Input: 198-253VAC, single ∅, 50/60Hz
  • Pulse Rise Time ≤10μs
  • Diode Voltage: up to 280V
  • Pulse Width Range: <100μs to >5ms
  • Pulsed Repetition Frequency: <1Hz to 1kHz
  • Size Front Panel: 7.0" x 19.0"
  • Chassis: 6.5" x 17.0" x 17.0"
  • Weight: 35 lbs

Product Overview:

AMI offers the Model 8800D for laboratory and bench-top pulsed laser diode driver applications.

The Model 8800D is a high power pulsed laser diode controller that provides output current to drive laser diodes for pumping solid-state lasers. It has an internal microprocessor provides the flexibility and convenience of software control and the system status is presented on an easy-to-read LCD graphics display.

The Model 8800D can be configured with one or two power modules for up to 2.8kW of output power Protection features of the 8800D include an adjustable precision current limit which protects the laser diode from exceeding its maximum rating.

It is a prototyping tool that allows the laser developer flexibility to determine the best laser diode and drive for their end use. It has front panel and remote controls as well as operation via a RS-232 interface.  The output current is presented on an easy-to-read LCD display.

This software-controlled unit provides up to 80 Amps of current in CW mode and 300 Amps in pulsed mode. Pulse durations range from 5 µs to 5 ms, with repetition rates from less than 1 Hz to 1 kHz. It can be configured to include custom software and a 1.75-kW or a 3.5-kW internal power supply. It can also slowly ramp the output current to the level set by the user.

The Model 8800D is an OEM driver tailored to your application that will have a lower cost, high reliability, and a small footprint.
