High Power Laser Control and Mounting Module: 21 Amps, up to 36 Volts
Current Source + TEC Controller + Laser Mount/Heat Sink

  • laser diode driver and laser diode controller-1
  • laser diode driver and laser diode controller-3
  • laser diode driver and laser diode controller-2
  • laser diode driver and laser diode controller-4

$4295.00
sku / item#: CCM-CW-HP
ships: 3 weeks

Key Features
  • 21A, 36V Laser Diode Driver with High Compliance Voltage for Fiber Coupled Multimode Pumps
  • Includes TEC Based Cooling for Laser Diodes up to 150W Laser Output Power
  • Includes Mounting Plate and Heat Sink for Laser Diodes

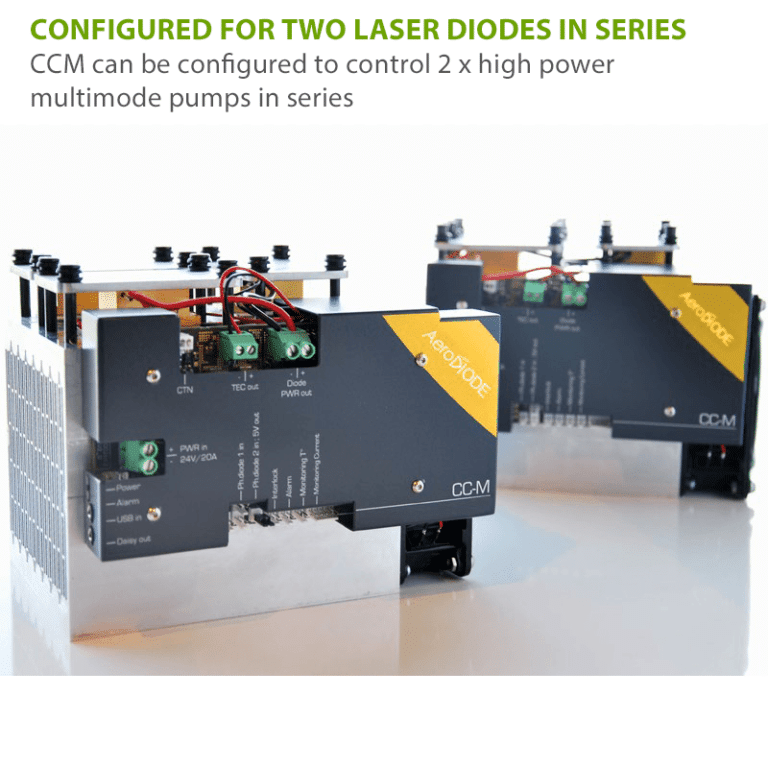

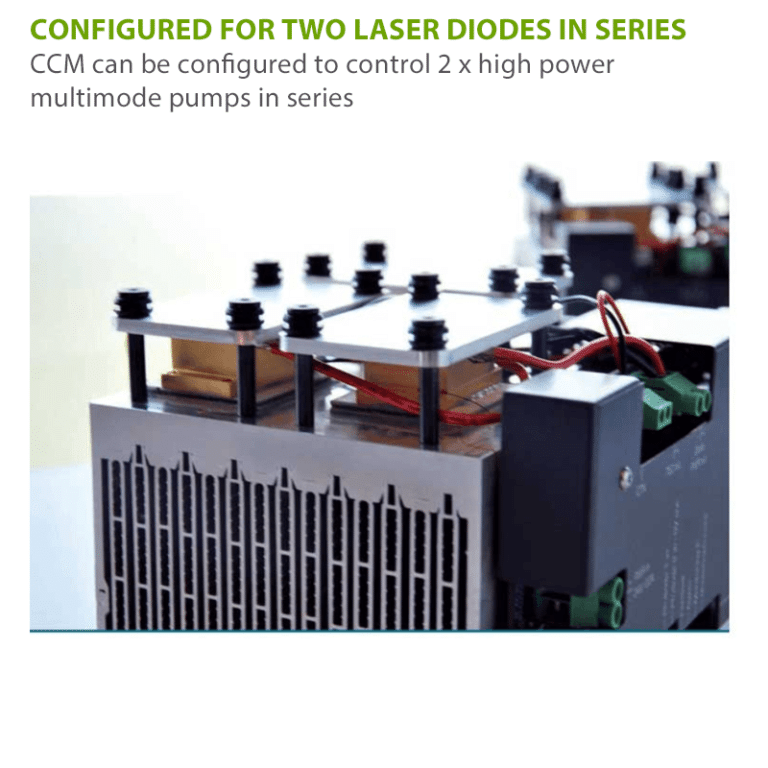

  • Mounting Plate Can be Configured for Two Laser Diode Modules in Series
  • Optimized for Fiber Coupled Multi-Emitter Pumps from II-VI, IPG, NLight, Lumentum, BWT, Coherent and LUMICS
  • USB and UART Interface
  • Offered by AeroDIODE a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL CCM-CW-HP
PRICE $4295.00
Laser Diode Driver - Current Source
  • Current Range: 0 - 21 Amps
  • Compliance Voltage Range: 0 - 36 Volts
  • Current Stability: +/- 0.025% of Full Scale Set-Point Current
  • Laser Diode Set-Point Adjustment Resolution: 0.05 Amps
  • Control Modes: ACC (constant current) and APC (laser output power feedback from photodiode)
TEC CONTROLLER
  • Temperature Control Range (typ): 15-40°C
  • Temperature Stability (typ): < 0.05°C
  • TEC Power: > 150 Watts
MODULATION Bandwidth
  • Bandwidth: 100 kHz
  • Trigger: Internal or External
USER INTERFACE and power input

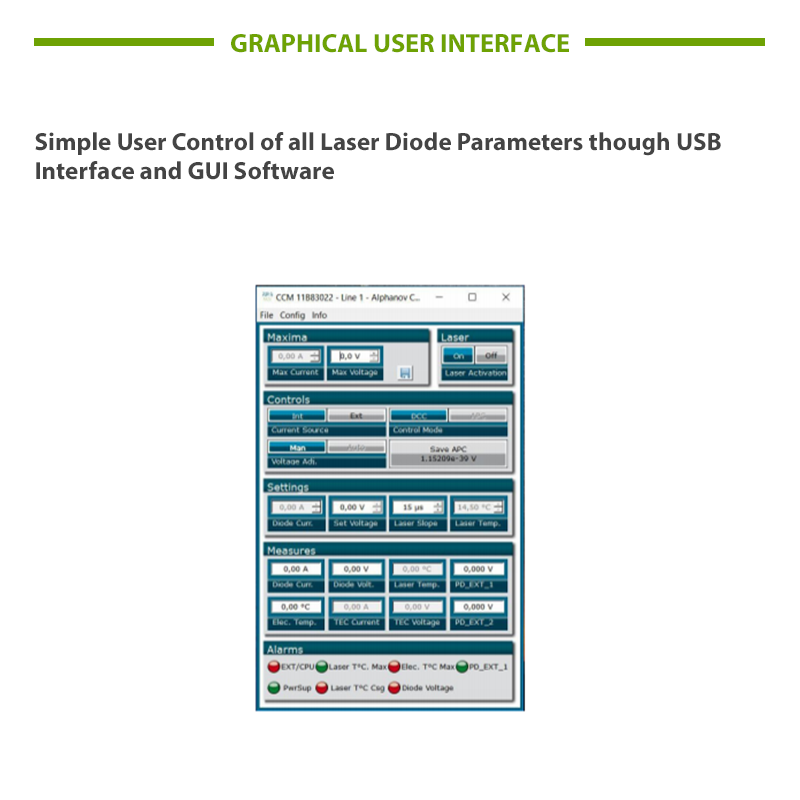

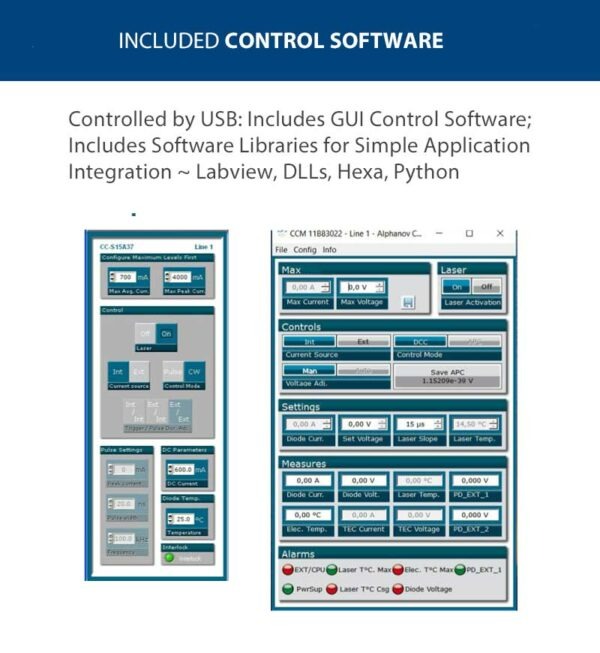

  • USB with GUI Software
  • UART
  • Includes Control Software Libraries : DLLs, Hexa, Labview VI (prov)
  • Power Supply (included) : 24 VDC (input 110/230 VAC, 50/60 Hz)
Dimensions
  • 238mm * 146mm * 142.5mm

Product Overview:

A Complete Solution for Mounting and Control of High Power Multimode Laser Diode Pumps:

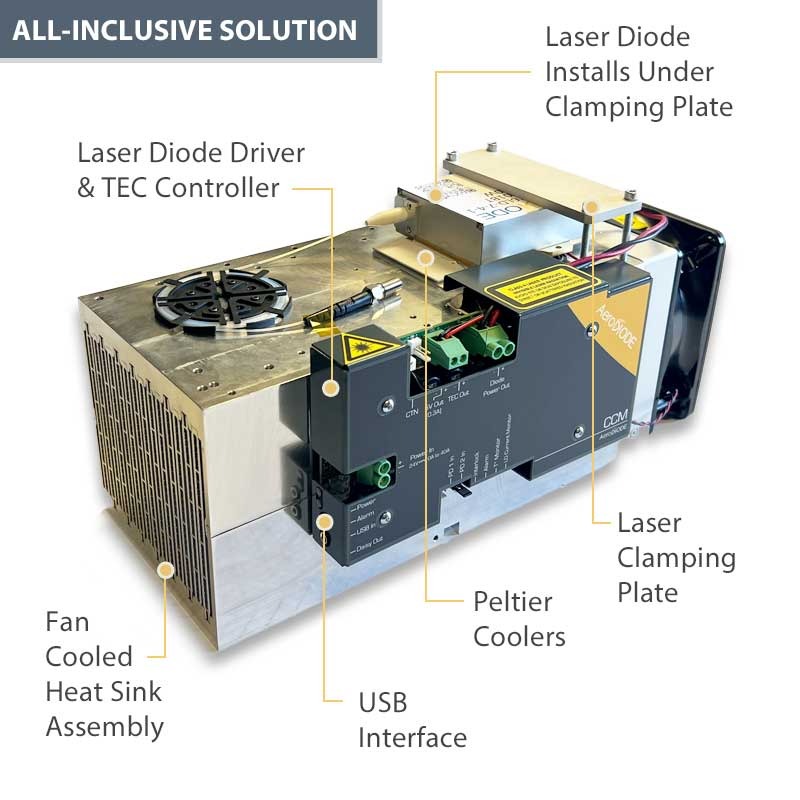

This High Power Laser Diode Driver is compatible with multimode fiber coupled multi-emitter pump lasers from II-VI, nLight , Lumentum , IPG , Dilas. BWT, Lumics and more. It is a high stability complete solution with a 13 Amp laser bias current range and 23V compliance voltage range. It includes the laser driver, the TEC controller and and air-cooled heat sink base. The integrated TEC elements under the mounting plate keep the temperature stable and remove the heat. The TEC power is optimized for high power pump laser diode driving. This control and mounting module is used primarily for CW mode. But it is also able to deliver pulses which are generated internally by an on-board pulse generator, or on-demand from an external analog modulation signal. This control and mounting module is very compact and offers an excellent pre-configured solution for OEM integration into your high power laser system.
