Affordable Laser Diode Driver Circuit / PCB

  • laser diode driver circuit model

Request Quote
sku / item#: SHS-4500
ships:
This product is currently no longer available to purchase through LaserDiodeSource.com; please contact LaserTack directly for price and delivery

Key Features
  • On-Board Current Adjustment
  • Integrated Modulation
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL SHS-4500
PRICE Request Price
General Specifications
  • Laser Diode Output Current (mA) 4,500
  • Required Input Supply Voltage (VDC) 3~24
  • Modulation (kHz Analog / kHz TTL) 500 / 250
  • Modulation Voltage (VDC) 0~5
  • Rise-Fall-Time (µs) 1.4
  • Noise (mV) 1.6
  • Size (mm) 30 x 50
  • Compliance RoHS

Product Overview:

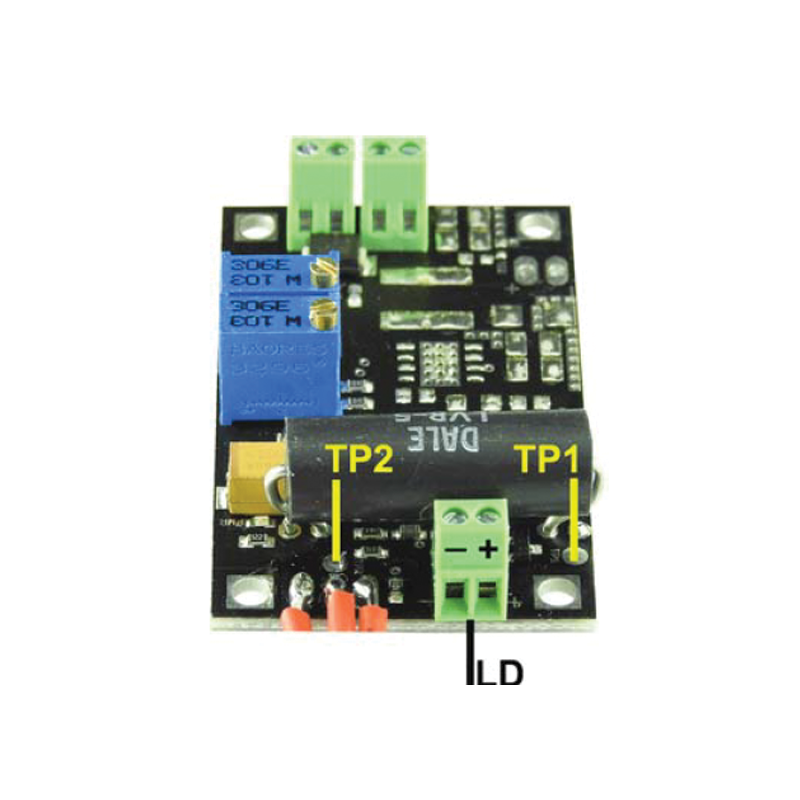

Instructions for setting the current bias to the the laser diode follows: First set the potentiometers BIAS and GAIN by turning the screws counterclockwise (25 turns) to zero. Then connect the laser diode to the LD connector at the bottom of the driver board. Next, set the supply voltage to 3-24VDC. Pay attention to the red marked text below for choosing the right voltage. After choosing the voltage, connect the power supply to the Vin connector. After connecting the power supply, connect the modulation source to the connector named MOD. You can then set the modulation voltage to 0.2 to 0.3 VDC. Now you can set the BIAS current turning the screw of the BIAS potentiometer clockwise until the threshold current of the laser diode is reached and it starts to lase. Set the modulation voltage to 5VDC. Now you can set the GAIN current by turning the screw of the GAIN potentiometer clockwise until the maximum working current is reached. Refer tot the data sheet attached for the final steps and for more information.
