Butterfly Packaged Laser Diode Controller

Request Quote
sku / item#: LDC-SLT03
ships: contact manufacturer

Key Features
  • This item is currently unavailable to purchase from LaserDiodeControl.com
  • Please contact Sacher LaserTechnik for more info

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE Request Price
Laser Diode Driver / Current Source
  • Output Current Range: 0 - 500mA
  • Current Setpoint Resolution: 0.1mA
  • Current Setpoint Accuracy: ±0.1%
  • Noise (10Hz to 10MHz): < 1μA (see attached Noise Density image)
  • Compliance Voltage: 0 - 7V
  • Photodiode Current Measurement Range: 2-2000uA
Temperature Controller / TEC Controller
  • Type: Constant Current Source Bridge
  • Compliance Voltage Range: 0 to 8V
  • Output Current Range: -2A to 2A
  • Maximum Power: 16 Watts
Laser Diode Protection
  • Exclusive clamping current limits
  • Output shorting circuits
  • slow-start turn-on
  • Power-line transient suppression with AC line filters
  • Temperature Sensor Thermistor: NTC (ie 10K NTC)
  • IC Temp Sensor: AD590
  • Temperature Control Range: -5°C to 30°C
  • Setpoint Resolution: 0.1°C (-5°C to 30°C)
  • Dimensions: (WxHxD) 170 x 140 x 42 mm
  • Line Voltage: 12V DC
  • Operating Temperature: 0°C .. 40°C

Product Overview:

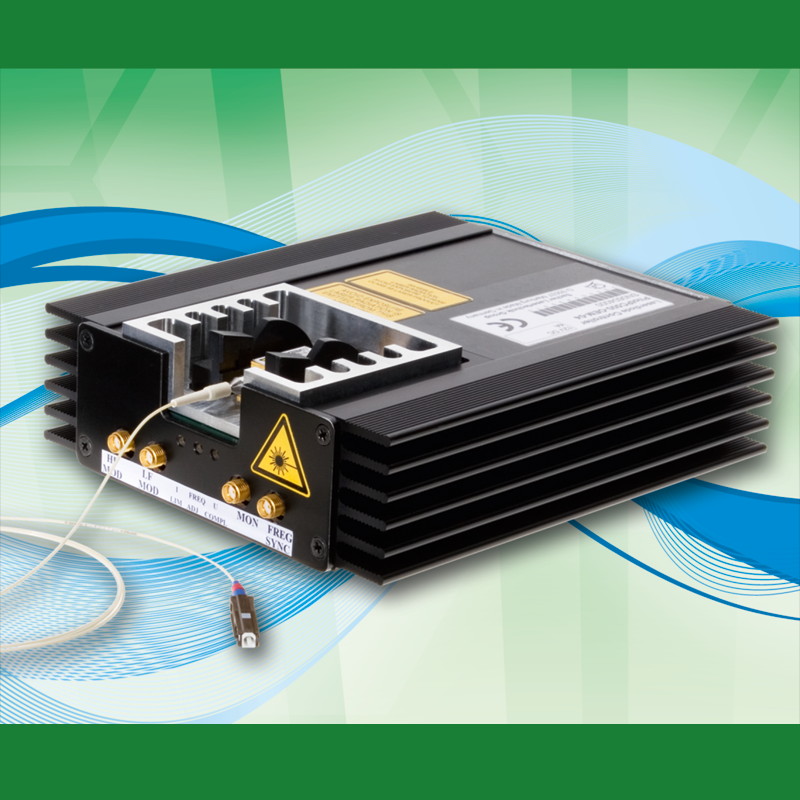

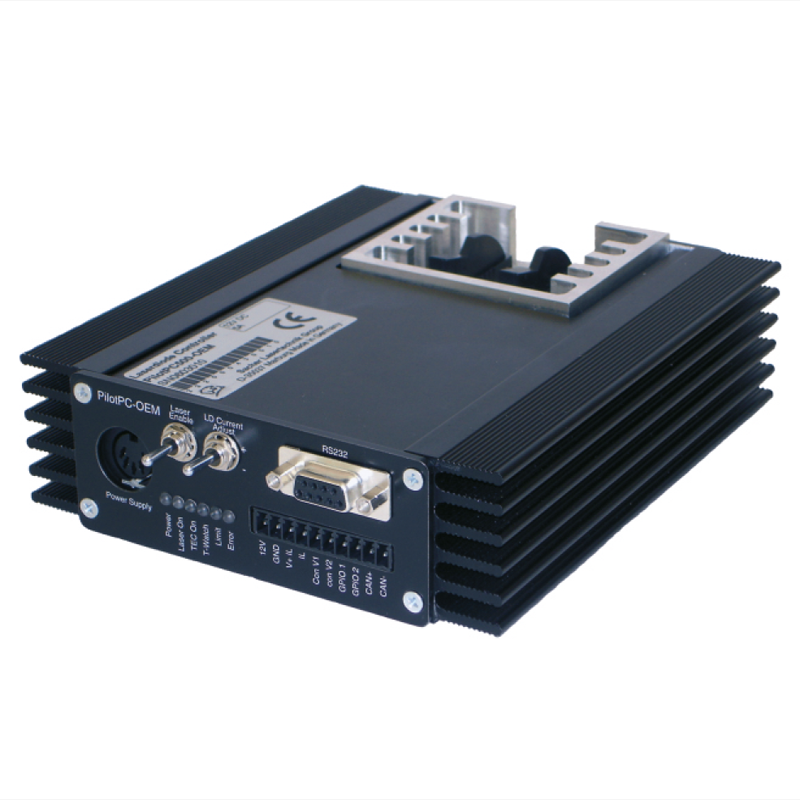

These fully integrated control modules from Sacher LaserTechnik offer a compact and affordable solution for laboratory control of butterfly packaged laser diodes or for product integration. These modules include a 500mA laser diode current source, a 16 Watt TEC controller, and a mount with heat sinking for butterfly packaged devices. Additional features include a modulation input, monitor photodiode measurement and a remote interface. A full array of status indicator LED's inform the user of operational mode details and alert the user to any potential alarm conditions.
