Laser Diode TEC Controller, 240 Watts

$369.00   Ships: in stock | Model RLS-MPT-5000 Series

Key Features
  • Drive ±5 A of TEC or RH current
  • Single supply operation: +5 V to +15 V
  • Linear Stability: 0.003°C
  • Selectable sensor bias current
  • Adjustable current limit
  • Supports Thermistors, RTDs, IC sensors
  • Remote analog setpoint input

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-MPT-5000 Series
PRICE $369.00

Product Overview:

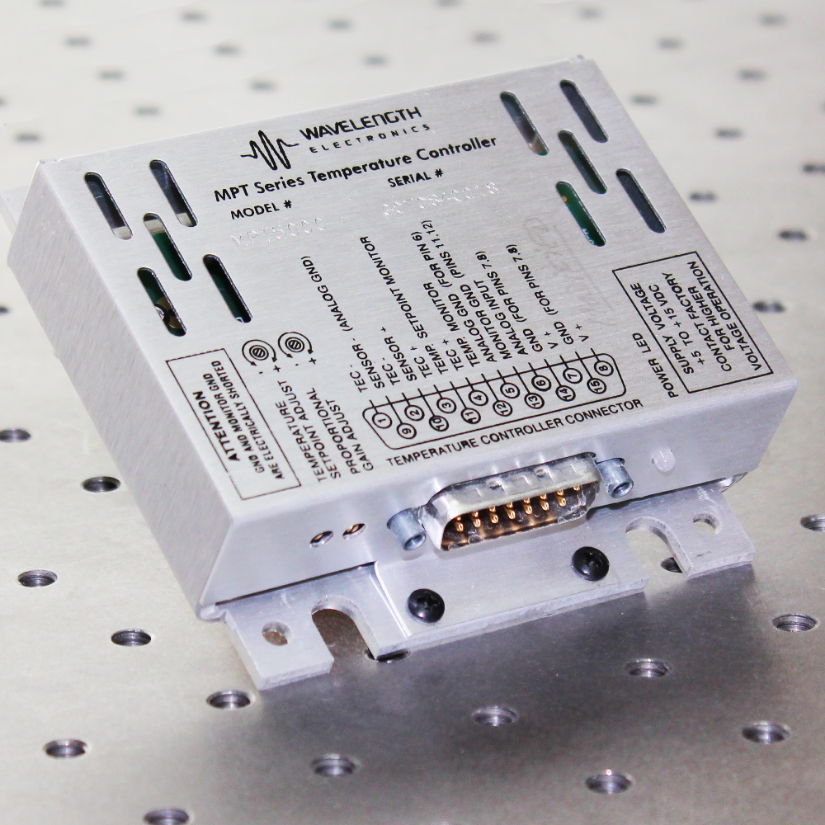

The robust MPT series circuitry achieves 0.003°C temperature stability. It is a chassis mount package with cabling to the male DSub15 connector available: WCB101. The MPT5000 drives up to 5 A for either Thermoelectrics (bipolar) or Resistive Heaters (unipolar). The MPT2500 drives up to ± 2.5 A. The MPT10000 drives up to ±10 A. For evaluating the unit on a benchtop, the MULTI-HTSK is available. This temperature controller interfaces with virtually any type of temperature sensor. An onboard sensor bias current source can drive thermistors, RTDs, or the LM335. For current sensors like the AD590, simply bias it and drive it into the sensor input. A trimpot adjusts the Proportional Gain (P). A fixed Integrator Time Constant (I) capacitor can be custom fit to your application to optimize temperature overshoot and stability. Another trimpot adjusts the setpoint temperature. You can use a remote signal (D-to-A, or remote trimpot, for example) with the external analog input to control the operating temperature. Up to 27 V can be delivered to the load with 30 V input. Heatsinking then becomes critical and a Safe Operating Area tool is available to make sure you don’t exceed the maximum internal power dissipation of the package. Monitor pins bring out both Setpoint and Actual temperature signals. Current limit is set via a single-turn trimpot under the cover. The MPT5000 has proven reliable in such diverse fields as medical, defense, communications and manufacturing.
