Pulsed Laser Diode Controller; 1.2 Amp Current Source with 12 Watt TEC Controller

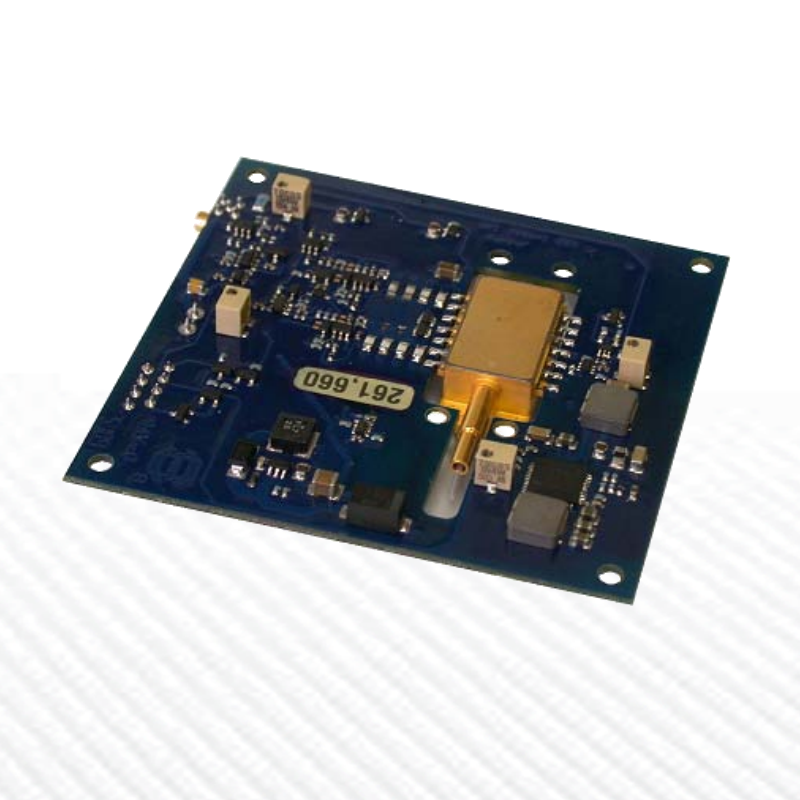

  • Model 763 Analog Modules Laser Diode Pulse Driver

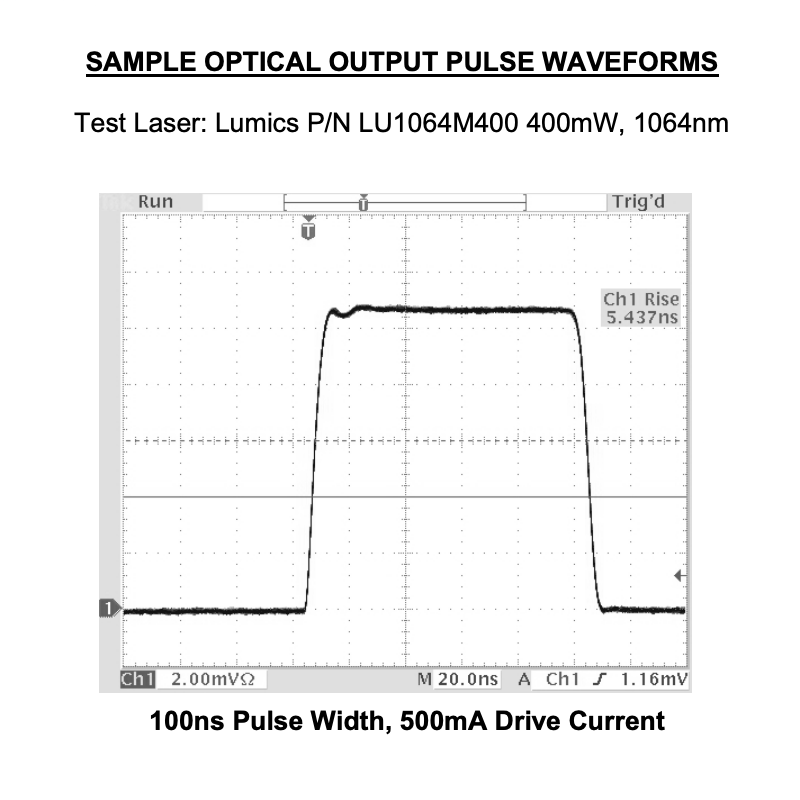

  • 500mA Laser Diode Optical Pulse Shape

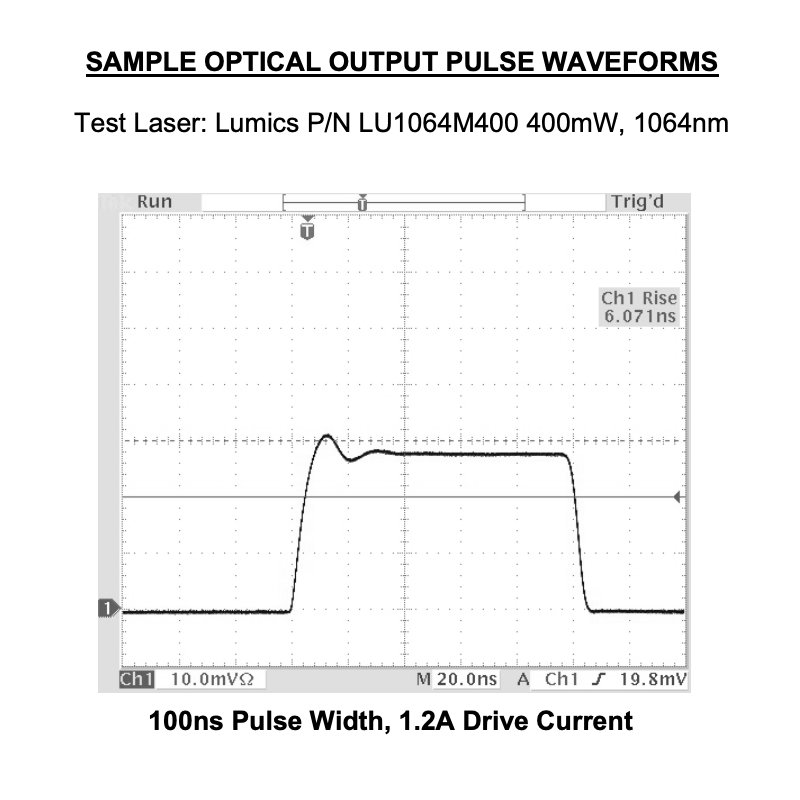

  • 1.2 Amp Laser Diode Optical Pulse Shape

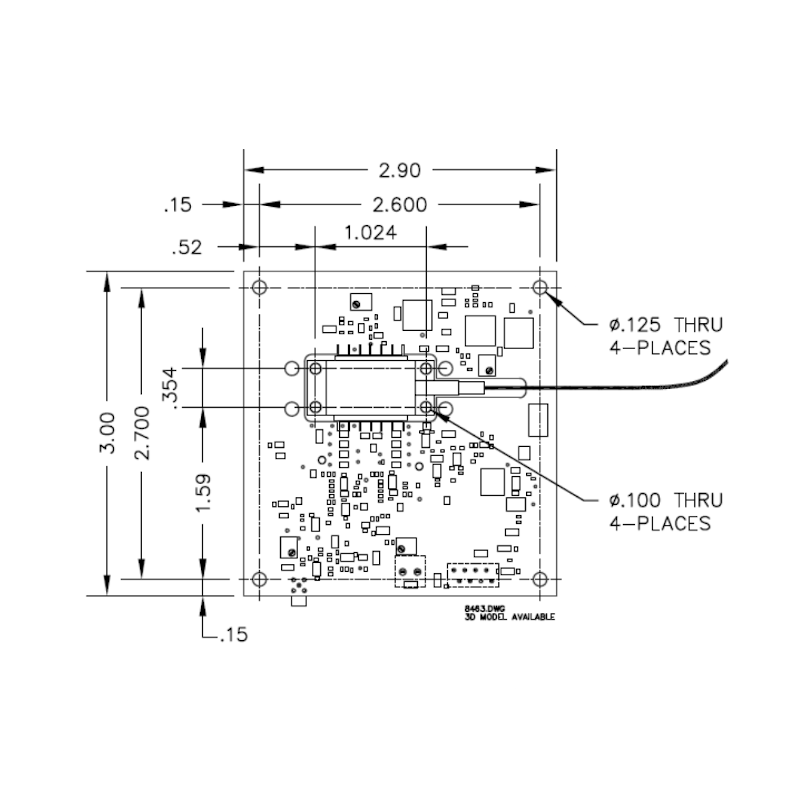

  • AMI Model 763 Pulsed Laser Controller Dimensions

Request Quote
sku / item#: RLS/763
ships:

Key Features
  • Pulse Width 10 Nanoseconds to CW
  • Output Current up to 1.2 Amps
  • Solder Pads for On-Board 14-Pin Butterfly Laser Diode Mounting
  • 5.6 Watt TEC Controller
  • Laser Diode Protection Circuits

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/763
PRICE Request Price
General Specifications
  • Output Current: 0.1 - 1.2 Amps
  • Compliance Voltage: 2 Volt (typ)
  • Pulse Width: 10 ns - CW **
  • Repetition Rage: Single Shot - 50 MHz **
  • ** Limited by Maximum Output Power
  • Rise Time: 6 ns (typ)
  • TEC Current: 1.8 A
  • TEC Voltage: 3.14 V
  • Power Input: 4.75 - 5.25 V, 3.5 A (max)
  • Dimensions: 2.9
  • Heat Dissipation: Heatsink Required for Laser Diode Mounting
  • Refer to Datasheet for Additional Specifications

Product Overview:

Pulsed Seed Laser Diode Driver Overview

AMI’s Model 763 OEM seed laser diode driver is ideal for driving 14-pin butterfly packaged laser diode modules for use in CW or pulsed fiber MOPA systems. Applications include materials processing, LIDAR systems for remote sensing, fiber optic temperature sensing, laser communication and range finding. The driver is implemented as a transconductance amplifier (analog voltage in, scaled current out). The driver circuitry operates from a single 5V power source; other on-board voltages are generated by integrated high efficiency switching power supplies. The 763 is manufactured to the RoHS Directive 2002/95/EC requirements. All required mating cables are included.
