118 Amp Laser Diode Pulsed Driver for OEM Applications and Range Finding

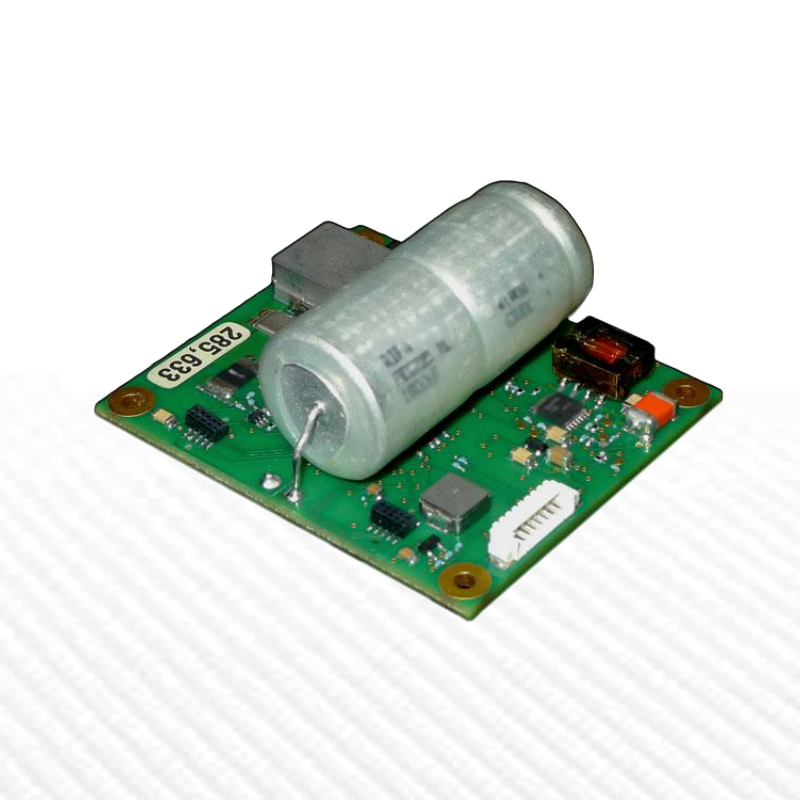

  • 118 Amp Pulsed Laser Diode Driver

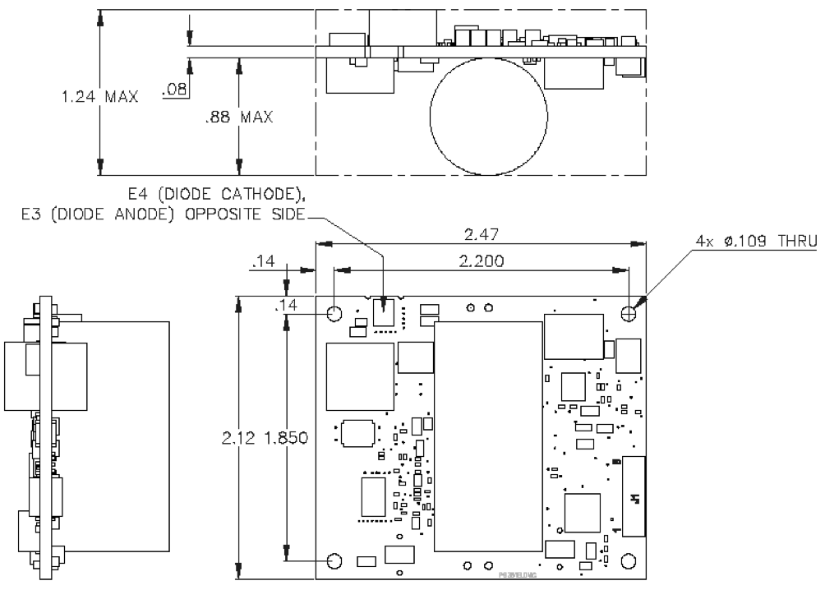

  • OEM Pulsed Laser Diode Driver Dimensions

Request Quote
sku / item#: 773
ships: Request a Quote for Current Ship Date

Key Features
  • Compact OEM Pulsed Laser Diode Driver
  • Pulsed Output up to 118 Amps
  • Convection Cooled Without Heatsink
  • Open- and Short-Circuit Output Protection
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL 773
PRICE Request Price
General Specifications
  • Output Current: Up to 118 A
  • Compliance Voltage: Up to 5 V
  • Max Pulse Energy: 1 J
  • Off-State Current: < 100 µA
  • Pulse Rise Time: < 25 µs
  • Pulse Width: 100 µs - 3 ms
  • Power Input: 5 VDC - 12 VDC, < 575mA Avg
  • Inrush Current: < 2 A
  • Dimensions: 2.1" X 2.5" X 1.25"
  • Refer to Datasheet for Additional Specifications

Product Overview:

Compact Pulsed Laser Diode Driver Overview

The model 773 from Analog Modules is a very compact, laser diode driver designed to provide up 10 118 Amps pulsed current for laser diode stack loads. These drivers offer fast rise and fall time specified at 25 microseconds into diode stacks of three to twenty-four volts and at avg. power to the load of 1 watt. These small footprint drivers weigh 2.1 oz. in a compact package and are very well suited to range finding applications. These drivers are convection cooled without the requirement for a heat sink, and offer multiple laser diode protection circuits.
