80A CW - 160A QCW Laser Diode Driver
- Laser Diode Stack & Bar Current Source
- 60V Compliance Voltage

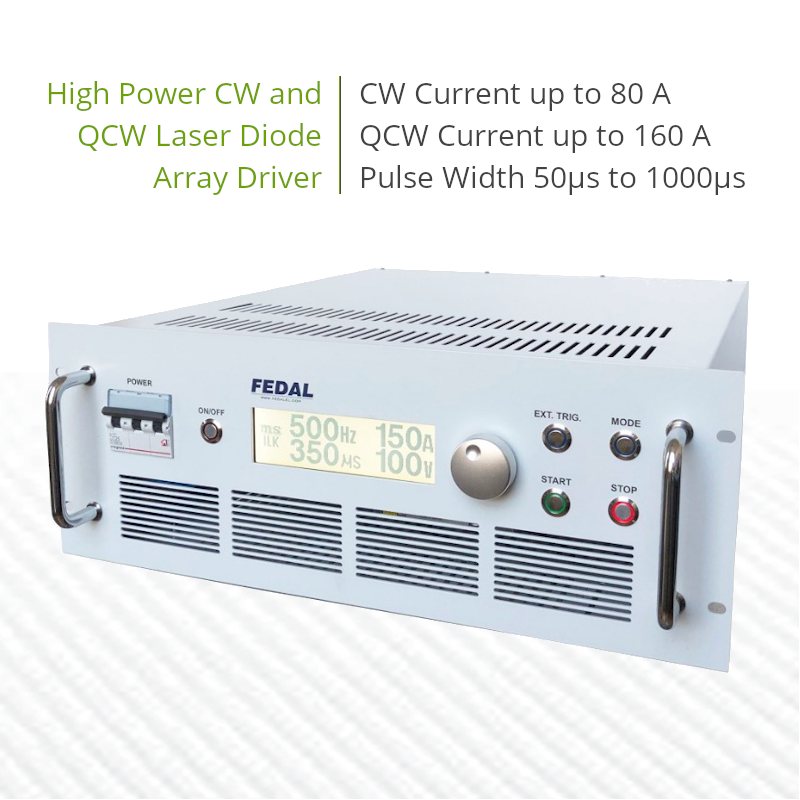

  • 160 QCW Laser Diode Driver, Rack Mount

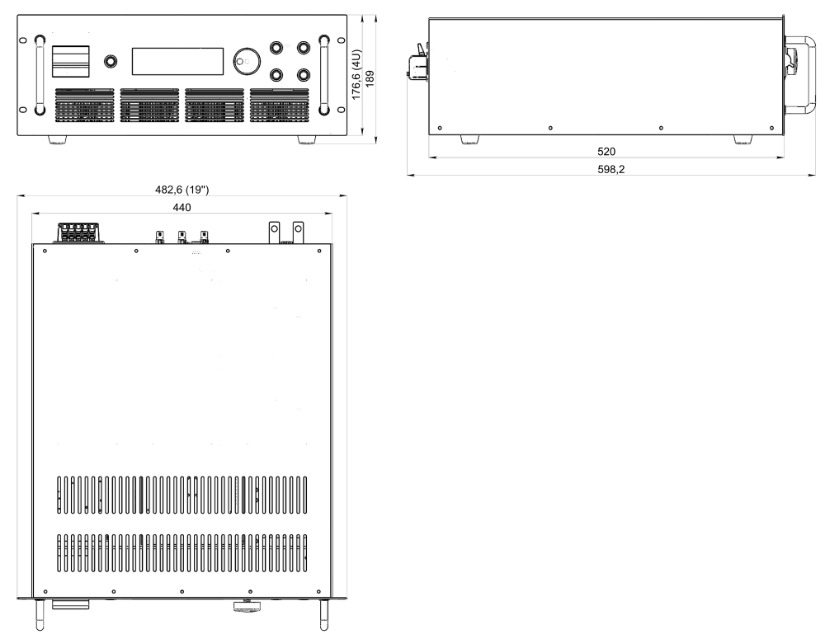

  • High Power Laser Diode Driver Dimensions

Request Quote
sku / item#: RLS/SF550-80/60
ships: *** This product is currently unavailable **

Key Features
  • СW/QCW Diode Driver
  • Pulsed Output Current up to 160 Amps
  • СW Output Current up to 80 Amps
  • Laser Diode Voltage up to 60 VDC
  • Variable Pulse Width 50µs to 1000µs
  • Pulse Rise time <60µs
  • Trigger In / Trigger Out
  • Rack Mountable, 4U High
  • Three-Phase AC Power Input
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/SF550-80/60
PRICE Request Price
- Pulse (QCW) mode -
  • Output Current: 1 - 160 A
  • Output Voltage: 0 - 60 V
  • Pulse Rate: 1-1000 Hz
  • Pulse Duration: 50 - 1000 μs
- CW mode -
  • Output Current: 1 - 80 A
  • Output Voltage 0 - 60 V
- General characteristics -
  • Average Output Power: 4.8 kW
  • Cooling: Air Cooled
  • Power Input: Three Phase 220/380 VAC, 50Hz
  • Dimensions: 440 * 177 * 520 mm; 4U
  • Weight: 25kg
Additional information
  • Values Are Limited by Average Power:
    F * V * I * τ ≤ P (pulse mode)
    V * I ≤ P (CW mode)
  • With a Length of Laser Diode Power Wire is Not More Than 2m

Product Overview:

Designed to power the diode arrays used to pump high-power solid-state or fiber lasers. Optimized for use as part of laboratory, educational, experimental and industrial applications. In addition, it can be equipped with a controller of thermal stabilization of Peltier elements (TEC controller). It has current limit, duty cycle limit and safety interlocks. It is modified according to customer requirements for optimal selection of parameters for a specific load.
