Laser Diode Control Electronics & Mounting Module for Butterfly Packaged Laser Diodes
- 800 mA Current Range
- Butterfly Package Mount
- Integrated TEC Controller

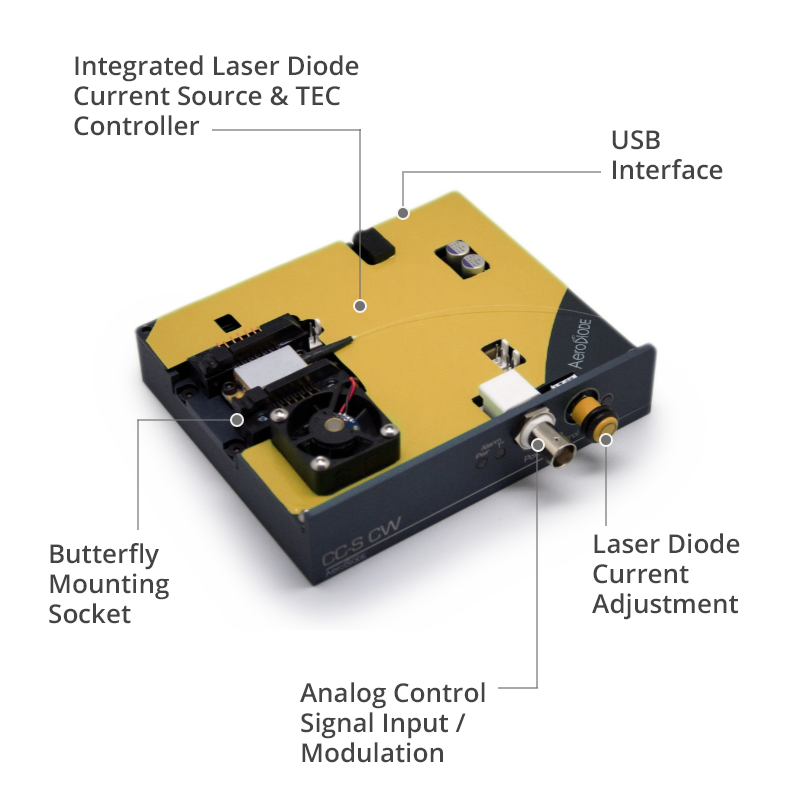

  • aerodiode laser driver bullet breakout

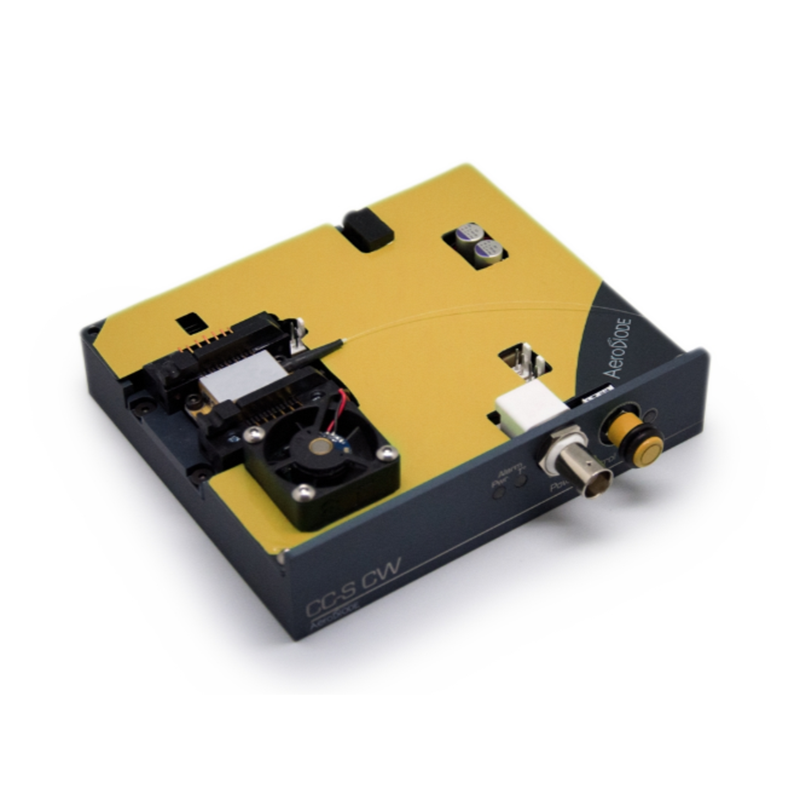

  • aerodiode laser driver with tec controller butterfly mount

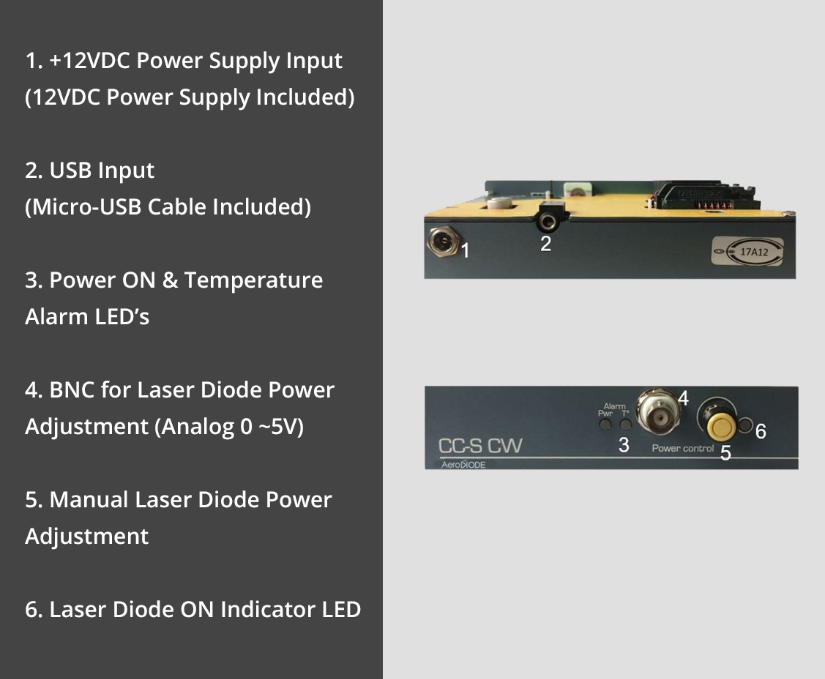

  • laser driver breakout of number map to feature

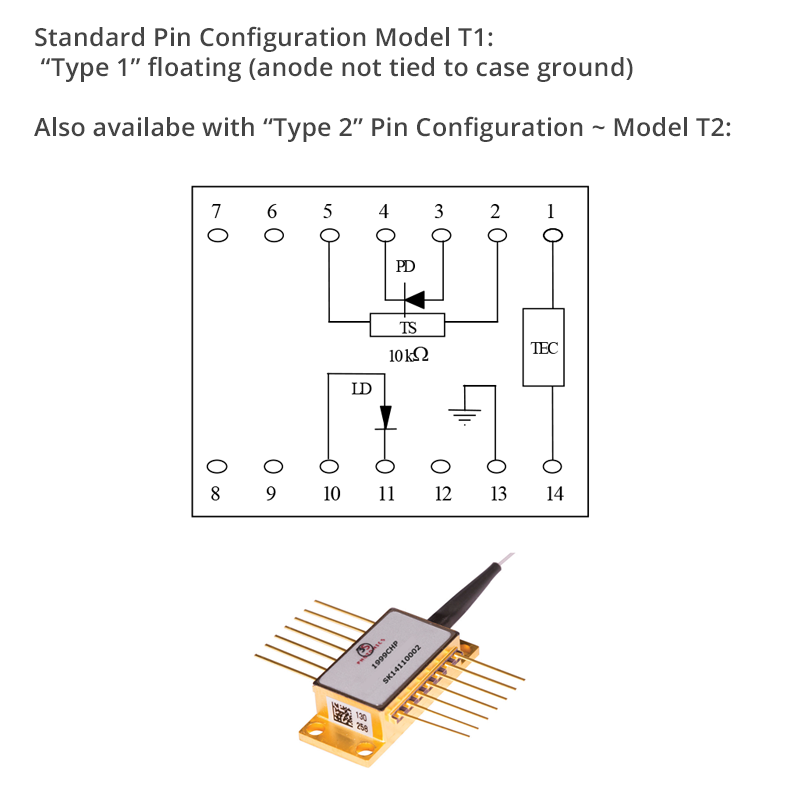

  • pin layout

sku / item#: CCS-CW / Control and Mount Module
ships: In-Stock (USA) -- Quantity Available: 6

Key Features
  • Integrated Current Source + TEC Controller + Butterfly Mounting Socket
  • Preconfigured for Type 1 Butterfly Laser Pinout (Type-2 Available on Request)
  • User Adjustable Laser Output Power by On-Board Control Knob, Analog Voltage Signal or USB with Control GUI
  • Noise and Ripple < 0.03% full scale
  • USB Interface, Includes Programming Tools Software Suite, DLL Library and GUI
  • Offered by AeroDIODE a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL CCS-CW / Control and Mount Module
PRICE $1695.00
  • Output Current: 0.00 mA - 800.00 mA
  • Output Compliance Voltage Maximum: 4.8 Volts
  • Current Noise and Ripple: < 0.03% of full scale
  • Current Set-Point Resolution (ie @ 200 mA): 0.05mA
  • Current Stability (24 hour): Better than 15 ppm
  • TEC Output Current: ± 3A
  • TEC Output Voltage: ± 4.6V
  • TEC Control Loop Type: PID
  • Temperature Control Accuracy (min.) : 0.01°C
  • Temperature Sensor Compatibility: NTC Thermistors
  • Butterfly Mount: Zero Insertion Force Mounting Socket with Clamping Arms
  • Butterfly Mount: Low Thermal Resistance Anodized Aluminum Butterfly Mount Base Plate
  • Butterfly Mount: Standard Pre-Configured Pin Wiring for Type 1 and Type 2 Configurations
  • Butterfly Mount: All Pin Configurations Available (request)
Laser Diode Protection
  • User Set Current Limit
  • User Set Temperature Limit
  • Safety Interlock
  • Soft-Start Ramp to Current Set-Point
  • Transient and ESD Surge Clamp
  • Closed Short Circuit (when laser OFF)
user INTERFACE, Modulation and power input
  • PC Interface: USB with GUI and Control Software
  • Analog Voltage Control Input: 0 to 5V (DC to Full Scale Laser Bias Current)
  • Side Panel Manual Control Adjustment Knob
DIMENSIONS and Included Parts
  • Dimensions: 130mm (W) 110mm (L) 37mm (H)
  • Weight: < 0.5 kgs
  • Power Supply: +12VDC Power Supply Included
  • USB Cable: Micro-Connector to Standard PC USB Connector Included
Pin Configurations
  • Standard Pin Configuration: Type-1
  • Also Available: Type-2 and Type-2 Bias-T

Product Overview:

Integrated Laser Diode Driver + TEC Controller + 14-Pin Butterfly Package Mounting Socket:

These fully integrated laser diode controller and mounting modules for butterfly packaged devices are designed for cost effective precision control of semiconductor lasers in research labs. These controllers provide a low noise CW laser diode current source and a high efficiency TEC controller with a pre-configured mounting socket. The mounting plate for the laser has a high surface flatness and finish to provide a low thermal impedance between the package at the heat sink base. The standard pin configuration is the "Type 1" package style. "Type 2" and other package configurations are available on request.

Laser Diode Protection Features Overview:
The integrated laser diode protection circuits protect your device under test at all times. A user set current limit and user set temperature limit clamp both the bias current and the operating temperature to prevent damage to the laser. A soft-start current ramp to the user defined current set-point protects the laser from the possibility of thermal shock or current surges. Also, the integration of the mounting socket directly with the current source eliminates the need for cables and connectors from the current path. This greatly reduces the likelihood of ESD damage to the laser which can occur from plugging and unplugging cables. Set-point and limits are set using a simple one screen graphical user interface which is opened when you connect your PC to the USB interface. The GUI control software is included with the purchase price and offers users simple set-up and control.
