Home  >  Laser Diode Drivers  >  AeroDIODE  >  CCS-CW-COAX / Control and Mount Module



Fiber-Coupled Coaxial Laser Diode
Control Electronics & Mounting Module
- 800 mA Current Range
- Coaxial / TO-Can Laser Mount

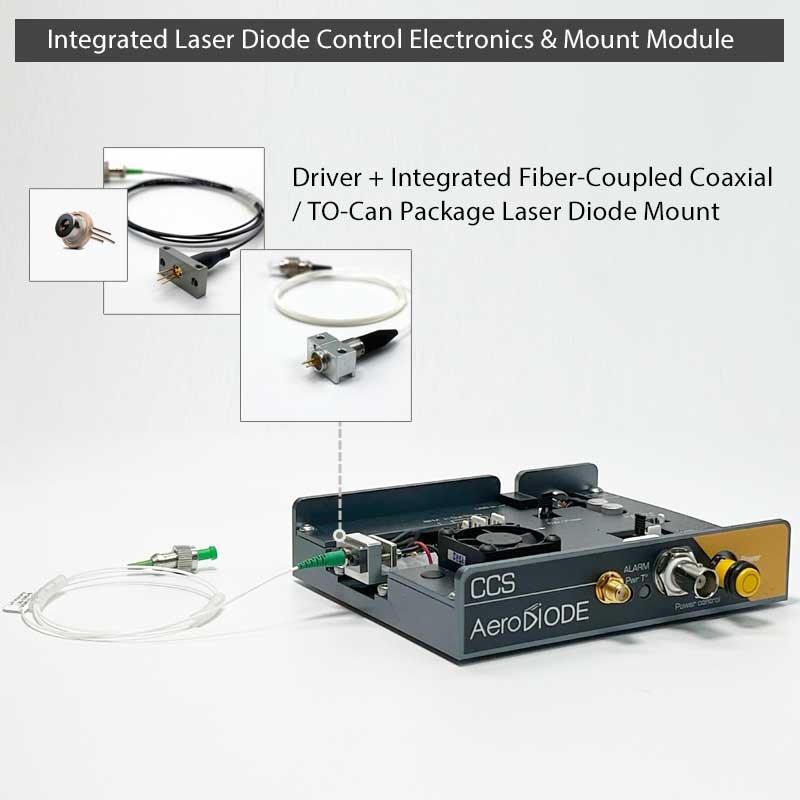

  • Laser Diode Controller and Mounting Module for Coaxial Lasers

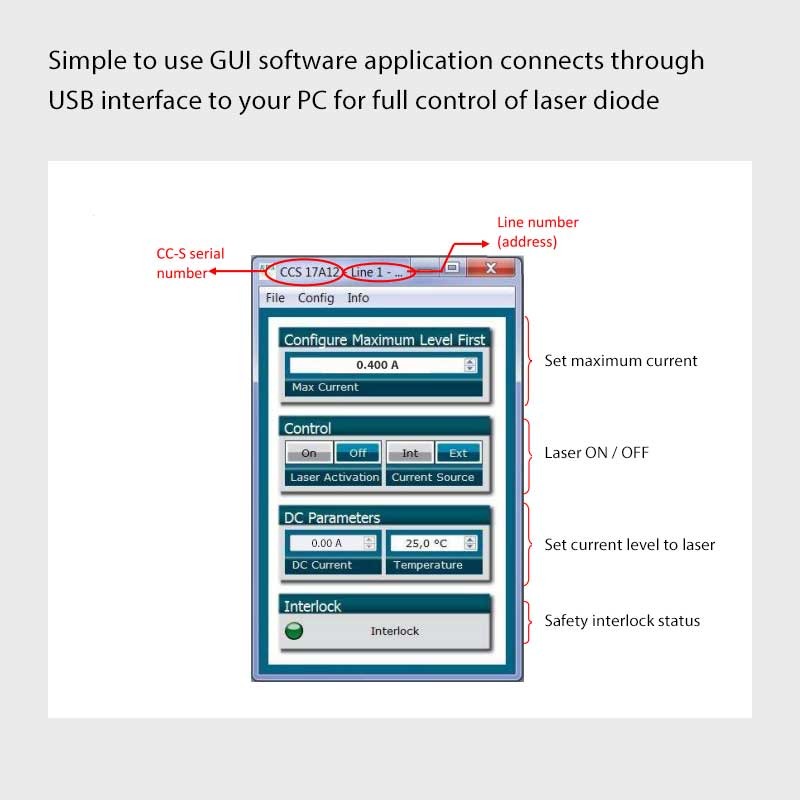

  • laser diode driver software screen capture
  • Coaxial Laser Diode Controller

$2690.00
sku / item#: CCS-CW-COAX / Control and Mount Module
ships: 4 Weeks ARO

Key Features
  • Integrated Current Source + Mounting Plate
  • Pre-Wired Connector for Coaxial Laser Diodes
  • User Adjustable Laser Output Power by On-Board Control Knob, Analog Voltage Signal or USB with Control GUI
  • Noise and Ripple < 0.03% full scale
  • USB Interface, Includes Programming Tools Software Suite, DLL Library and GUI
  • Offered by AeroDIODE a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL CCS-CW-COAX / Control and Mount Module
PRICE $2690.00
LASER DIODE CURRENT SOURCE
  • Output Current: 0.00 mA - 800.00 mA
  • Output Compliance Voltage Maximum: 4.8 Volts
  • Current Noise and Ripple: < 0.03% of full scale
  • Current Set-Point Resolution (ie @ 200 mA): 0.05mA
  • Current Stability (24 hour): Better than 15 ppm
Laser Diode Protection
  • User Set Current Limit
  • Safety Interlock
  • Soft-Start Ramp to Current Set-Point
  • Transient and ESD Surge Clamp
  • Closed Short Circuit (when laser OFF)

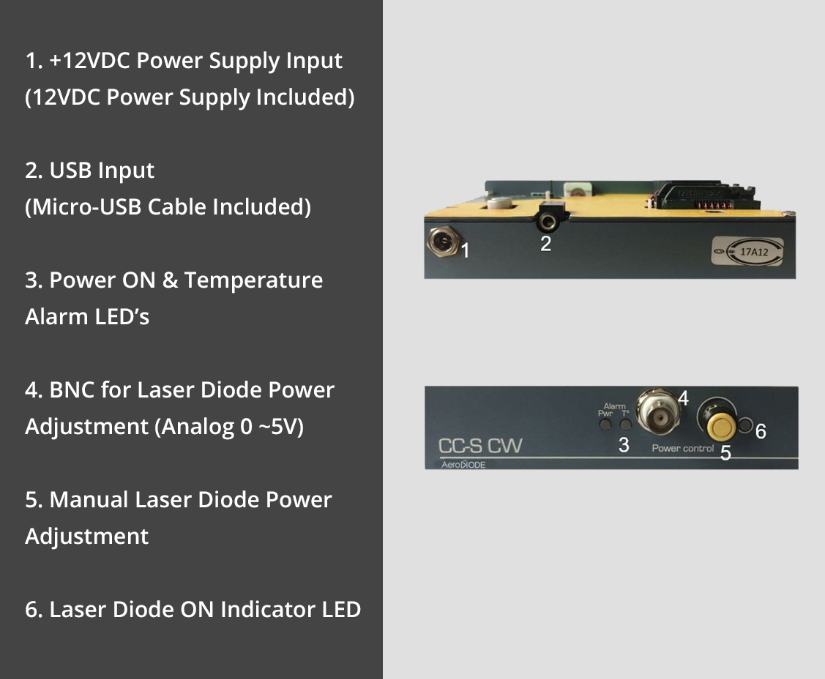

user INTERFACE, Modulation and power input

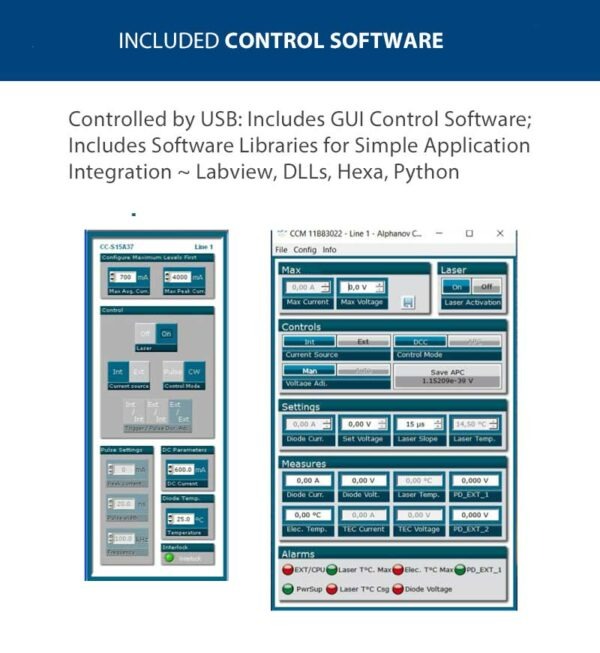

  • PC Interface: USB with GUI and Control Software
  • Analog Voltage Control Input: 0 to 5V
    (DC to Full Scale Laser Bias Current)
  • Side Panel Manual Control Adjustment Knob
DIMENSIONS and Included Parts
  • Dimensions: 130mm (W) 110mm (L) 37mm (H)
  • Weight: < 0.5 kgs
  • Power Supply: +12VDC Power Supply Included
  • USB Cable: Micro-Connector to
    Standard PC USB Connector Included

Product Overview:

Integrated Coaxial Laser Diode Driver + Coaxial Laser Mount:

These fully integrated laser diode controller and mounting modules for coaxial fiber-coupled packaged devices are designed for cost effective precision control of semiconductor lasers in research labs. These controllers provide a low noise CW laser diode current source with pre-configured mounting plate. The mounting plate for the laser has a high surface flatness and finish to provide a low thermal impedance between the package at the heat sink base.

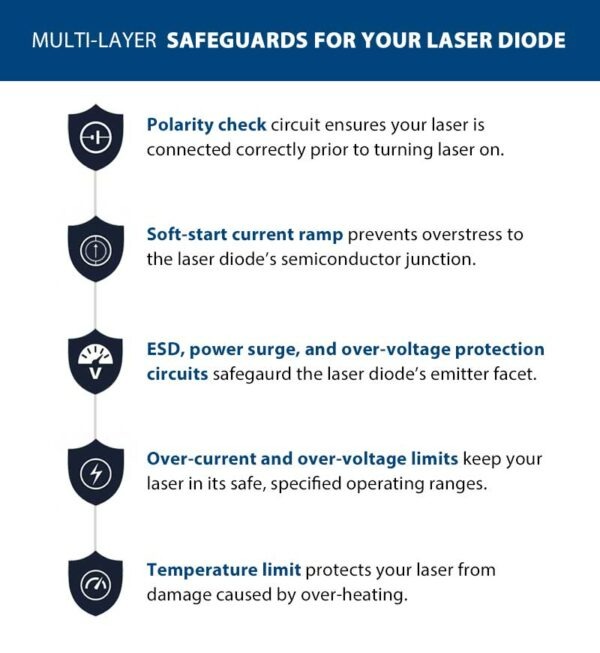

Laser Diode Protection Features Overview:
The integrated laser diode protection circuits protect your device under test at all times. A user set current limit clamps the bias current to prevent damage to the laser. A soft-start current ramp to the user defined current set-point protects the laser from the possibility of thermal shock or current surges. Also, the integration of the mounting socket directly with the current source simplifies the wiring connections from the from the controller to the laser package. This greatly reduces the likelihood of ESD damage to the laser which can occur from plugging and unplugging cables. Set-point and limits are set using a simple one screen graphical user interface which is opened when you connect your PC to the USB interface. The GUI control software is included with the purchase price and offers users simple set-up and control.
