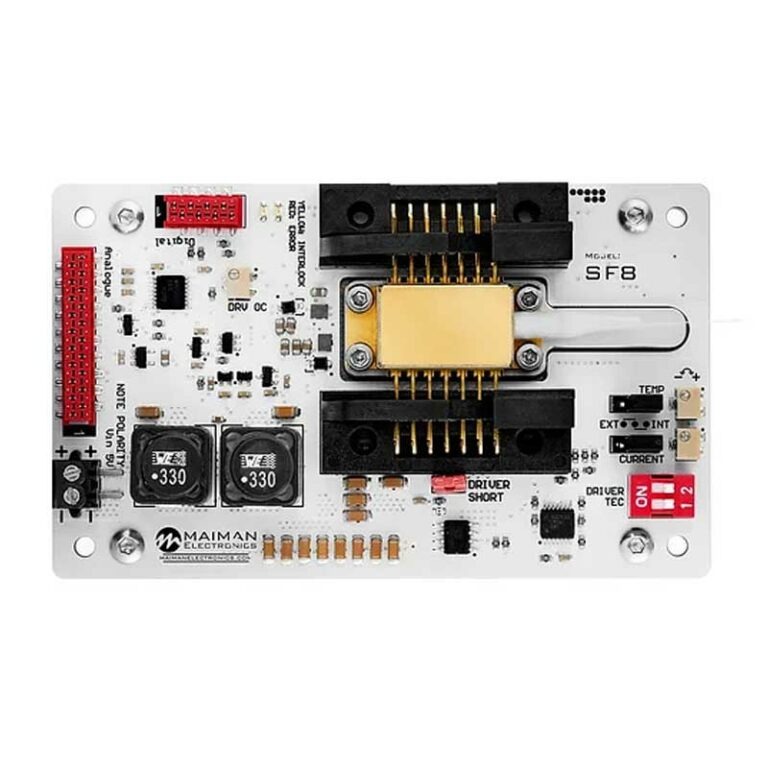

Hybrid 750mA Laser Diode Driver, TEC Controller & Butterfly Mount Module (TYPE-2)

  • laser-diode-driver-and-tec-controller
  • hybrid-laser-diode-driver-SF8075T-ZIF14-T2
  • maiman-laser-diode-driver-and-tec-controller
  • safety-features-sf8075T-ZIF14-T2-laser-diode-driver
  • laser-diode-driver-and-tec-controller-module

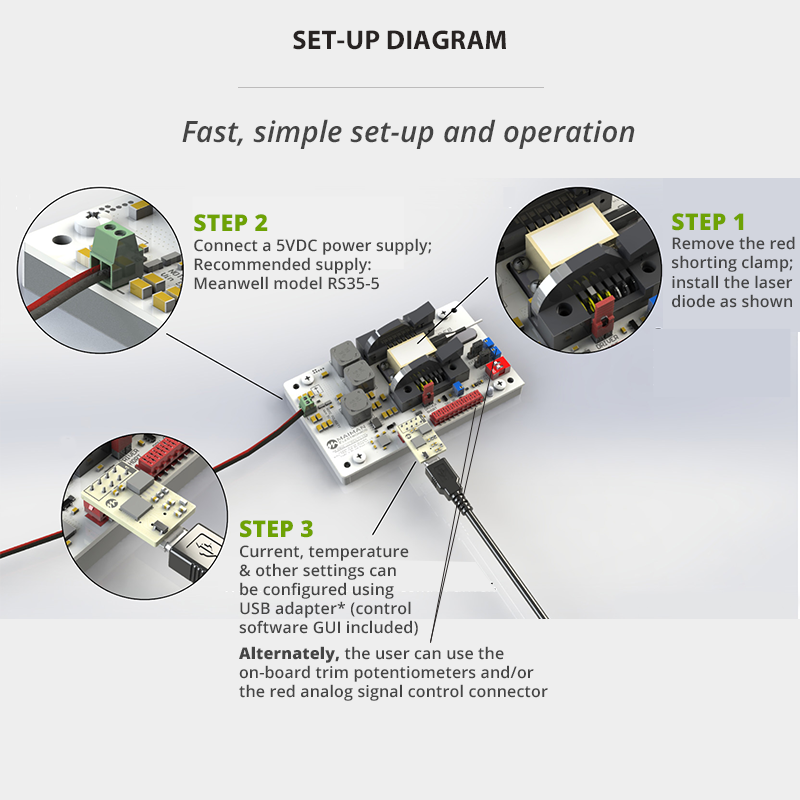

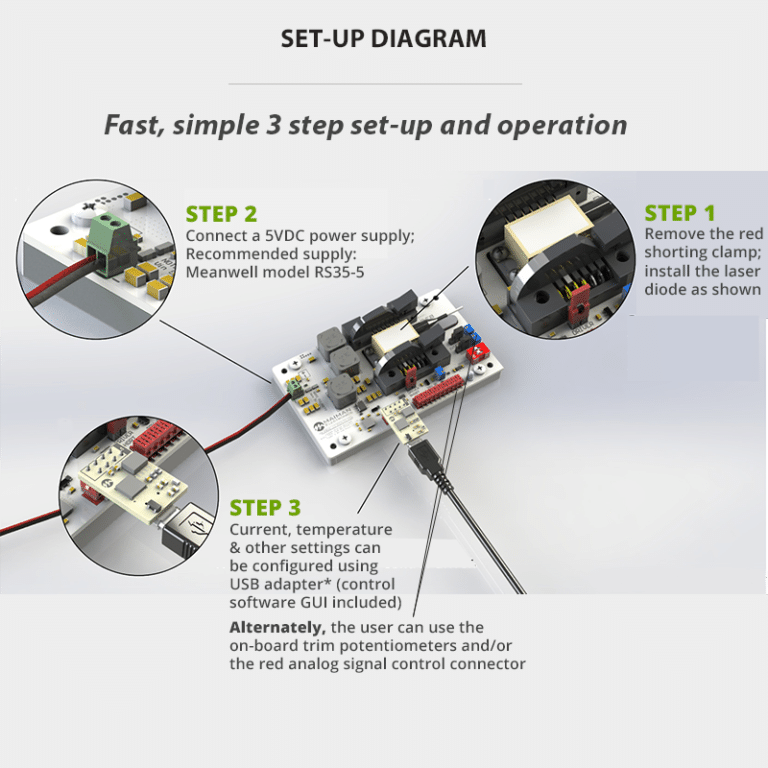

  • laser-diode-controller-set-up-diagram
  • SF8075T-ZIF14-T2-dimensions

$753.50
sku / item#: SF8075T-ZIF14-T2
ships: Request a Quote for Current Ship Date

Key Features
  • Hybrid Control & Mount Module:
    - 750 mA Laser Diode Driver
    - 16W TEC Controller (full PID)
    - 14-Pin Butterfly Mount
  • 4-LEVEL Advanced Laser Diode Protection:
    - Crowbar power surge & transient shunt
    - Soft-start current ramp
    - Current limit
    - Dual stage temperature limits
  • User Interface Options:
    - On-board trimpots
    - Analog signal controls
    - RS232
    - USB (optional) w/ GUI interface software

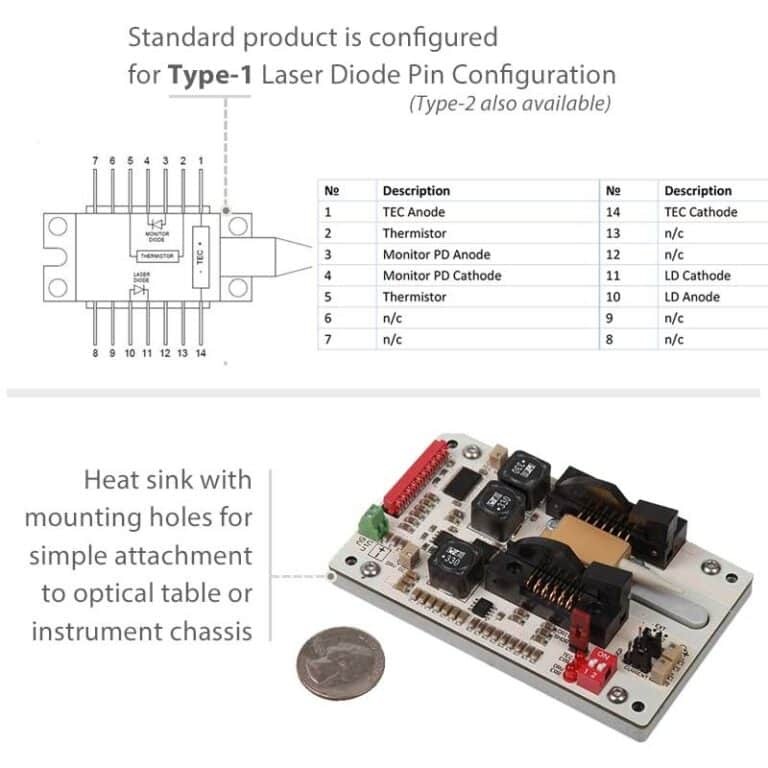

  • Type-2 butterfly package pin configuration (see images)
    Type-1 also available
  • 10% Discount for > 5 Units (request quote)

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL SF8075T-ZIF14-T2
PRICE $753.50
CURRENT, VOLTAGE & TEC CONTROLLER
  • Output current range (I): 0 mA - 750 mА
  • Output voltage LD (V): 0.5 - 3 V
  • Current stability: 0.1 %
  • Current set-point accuracy: < +/- 1 %
  • Output current noise: 10 - 15 µA
  • ТЕС Output Current Range: 0 ~ ±4 А
  • TEC Output Voltage Range: ) 0 ~ ±4 V
  • TEC Output Current Ripple: 2 ~ 4 mА
  • Temperature Control Range: +15 to +40 °C
  • TEC feedback sensor: 10 kOhm Thermistor
LASER DIODE PROTECTION
  • Soft-Start Current Ramp
  • Current limit
  • Temperature limit
  • Reverse current protection
  • ESD and transient protection

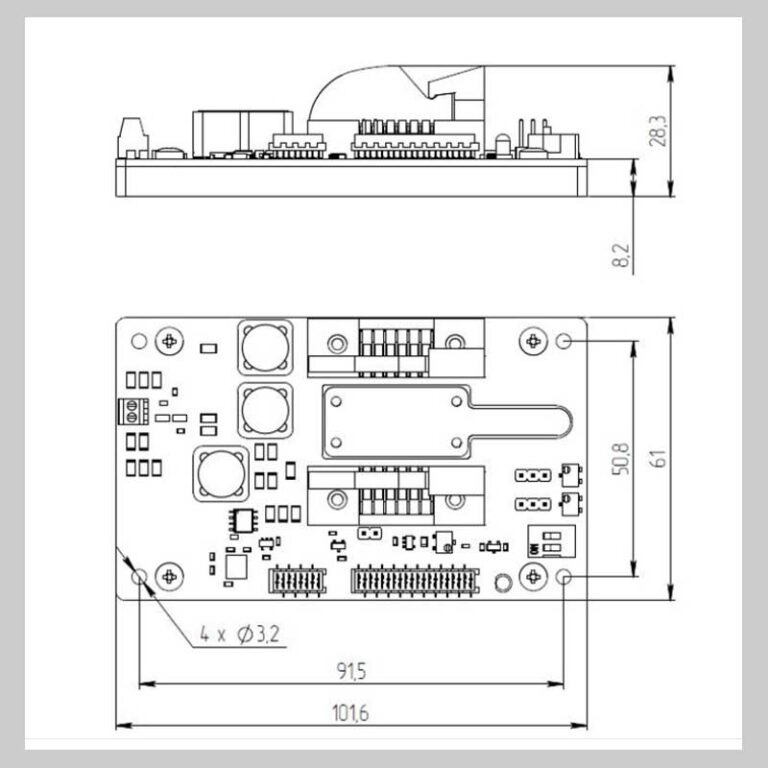

DIMENSIONS AND WEIGHT
  • Dimensions: 101.6 x 61 x 28.3 mm
  • Weight: 142 g
USER INTERFACE
  • Trim Potentiometers for Driver Current and TEC Power
  • Analog
  • RS232/UART Digital Interface
POWER SUPPLY INPUT
  • Input Voltage Supply (Vin): 5 VDC
  • Recommended Linear / Switching Power Supply Options:
  • Condor HC5-6-OV-A+G Linear Power Supply for better low-noise performance, narrow DFB laser line width
  • Mean Well LRS-35-5, Switching Power Supply more economical; ideal for pump lasers
SHIPPING KIT (INCLUDED PARTS)
  • SF8150 Control and Mount Module – 1 pcs
  • 50 cm ribbon cable with one 8-pin connector – 1 pcs
  • 50 cm ribbon cable with one 20-pin connector – 1 pcs
  • Datasheet & User Manual – 1 pcs
  • USB-UART converter – 1 pcs
WARRANTY PERIOD
  • 1-year manufacturer's warranty

Product Overview:


Hybrid Laser Diode Driver + TEC Controller + Butterfly Mount | Integrated Laser Diode Control Electronics and Mount Module
The SF8000 series hybrid laser diode control electronics and mounting modules offer an all-inclusive, high performance solution for controlling butterfly packaged laser diodes. These controllers are an excellent choice for integration into a laser system product or as an affordable solution for laboratory test set-ups. Key features of these modules include a low noise laser diode current source to safely electrically bias your laser diode, an integrated TEC / temperature controller and a 14-pin butterfly package mount. They also include multiple control interface options to enable you to control all of the parameters of your laser diode. Interfaces include on-board potentiometers, an RS232 interface, a USB interface and an analog control signals connector.

4-LEVEL Laser Diode Protection Summary

  • Redundant current & temperature limits; user can utilize redundant limit settings by using on-board trim pots and/or digital/analog controls to set limits
  • Power surge & overvoltage transient and power black out protection; crowbar circuit surge protection shunts power surges and prevents damage to laser
  • Soft-start current ramp
  • Fast laser shut-down if temperature exceeds customer specified limit
An integrated on-board zener diode in parallel with the bias current path protects the laser diode from damage which can occur from reverse voltage transients. These transients can occur when a standard DC power supply source is momentarily interrupted due to a black-out or brown-out power outage.

ESD Protection; Bias Current and DC Power Shunting Clip: These module ship with a jumper clip that shunts the laser diode bias current path of the driver to protect the laser from ESD or static discharge when the user is installing the laser into the mounting socket. This shunt also protects the laser when the user is connecting the DC power or any other external equipment.

Soft-Start Current Ramp: There is an internal 500 millisecond soft-start ramp to the current set-point. This reduces the potential for thermal shock to the laser at power ON and is used to ensure good electrical contact prior to fully applying the current bias the laser diode.

Additional External Over-Temperature Monitor Input: Primarily designed for integration of the module into a laser system, an additional thermistor input is provided to allow the user to monitor the temperature from an external measurement point. This can then be used to shut the laser diode off if a temperature maximum for the system is exceeded.

User Adjustable Current and Temperature Limits: The user can set current limit and temperature limits through on-board potentiometers. Limits can also be set using your PC through the included control software. Finally, limits can be set using the analog control signals input. Setting limits are necessities to ensure a long life-time for your laser.

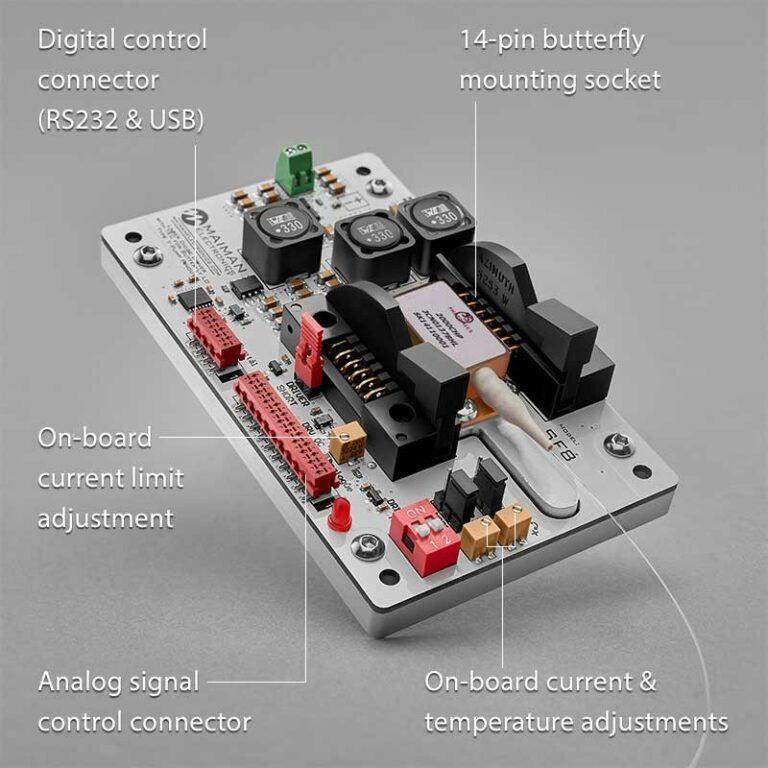

3 Methods for User Interface: On-Board Trim Potentiometers / Digital Controls (RS232, USB, Control Software Included) / Analog Controls
  • Analog Control Signals Input
  • On-Board Trim Pots

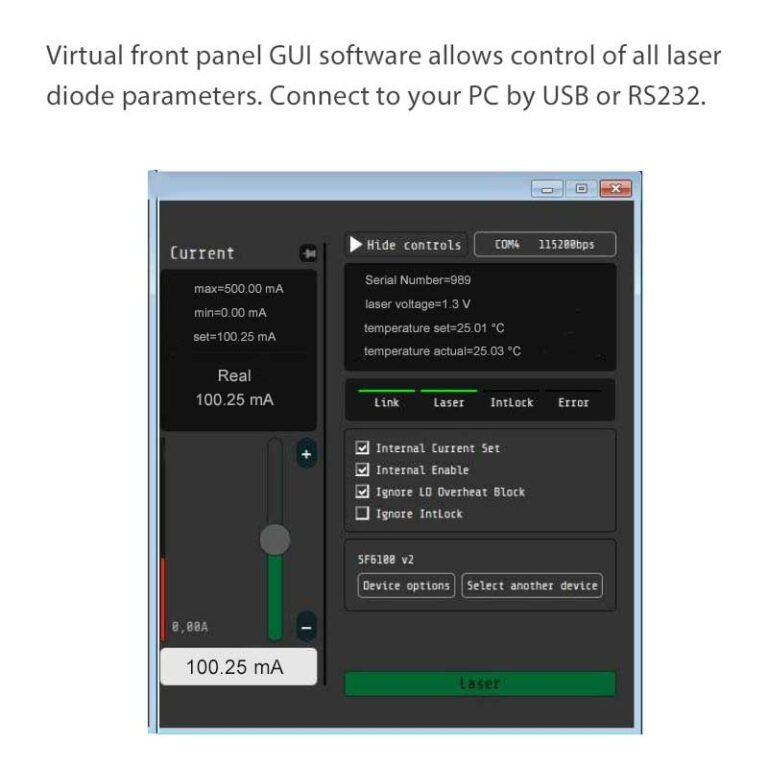

  • Digital Controls: RS-232 / UART / and USB (options) $35.00 / Includes GUI Software
Small Footprint Complete Laser Diode Driver, Butterfly Mount and TEC Controller Solution
These modules are the smallest footprint controller which is commercially available. Careful selection of components and and exacting design criteria allows the modules to provide complete control of your pump laser in a 61mm x 101mm package. They have a 10mm thick aluminum base plate which provides excellent heat dissipation and keeps the laser diode safely operating within your desired operating temperature range. The module base plate comes with 4 mounting through-holes, 3.2mm each, to bolt the module directly to an instrument chassis or any thermally conductive surface.
