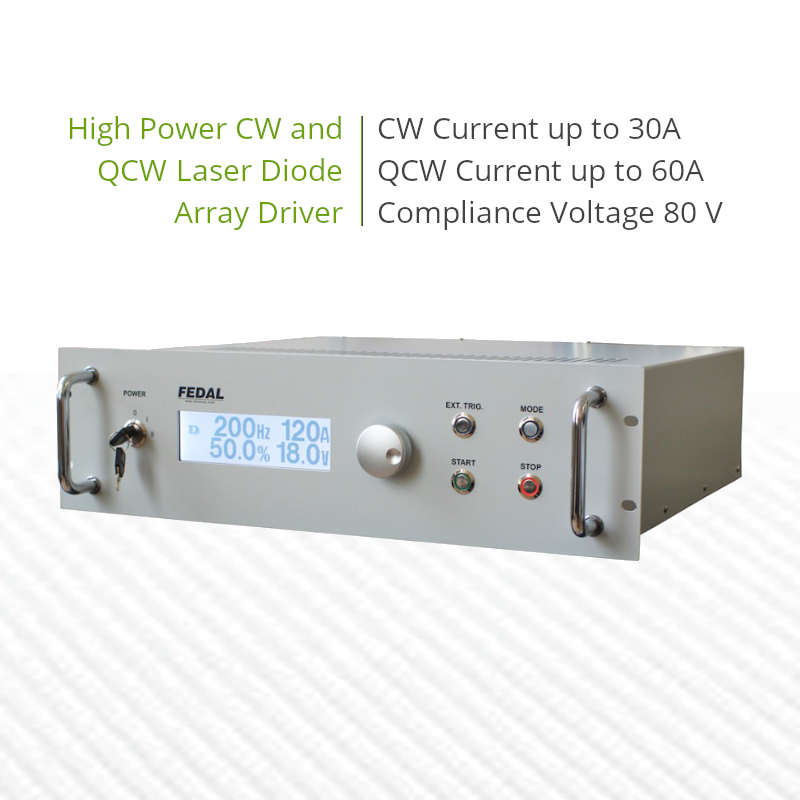

30A CW - 60A QCW High Power Driver for Laser Diode Arrays and Stacks
- 80V Compliance Voltage
- Pulse Duration 50 - 1000 μs
- Pulse Rise Time < 60 µs

  • 60A QCW Laser Diode Driver from Fedal
  • Rack-Mounted Laser Diode Driver Specs
  • Multi-Channel High Power Laser Diode Driver System

Request Quote
sku / item#: RLS/SF530-30/80
ships: *** This product is currently unavailable **

Key Features
  • СW/QCW Laser Diode Array Driver
  • Laser Diode Compliance Voltage up to 80 VDC
  • СW Current up to 30 A // Pulsed Current up to 60 A
  • Variable Pulse Width 50 µs to 1000 µs
  • Pulse Rise Time < 60 µs
  • Pulse Rate 1 - 500 Hz
  • LCD Display, Front Panel or PC Control
  • Rack Mountable, 3U High

Price and Delivery Quote

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/SF530-30/80
PRICE Request Price
- Pulse (QCW) mode -
  • Output Current: 0.5 - 60 A
  • Output Voltage: 0 - 80 V
  • Pulse Rate: 1 - 500 Hz
  • Pulse Duration: 50 - 1000 μs
- CW mode -
  • Output Current: 0.5 - 30 A
  • Output Voltage 0 - 80 V
- General characteristics -
  • Average Output Power: 2.4kW
  • Cooling: Air Cooled
  • Power Input: Single Phase 220 VAC, 50Hz

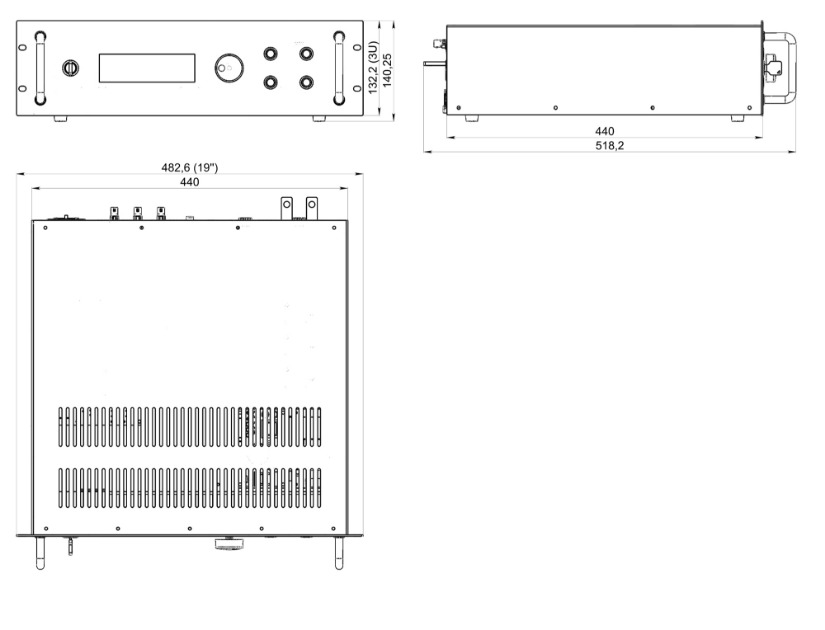

  • Dimensions: 440 * 132 * 440 mm; 3U
  • Weight: 20kg
Additional information
  • Values Are Limited by Average Power:
    F * V * I * τ ≤ P (pulse mode)
    V * I ≤ P (CW mode)
  • With a Length of Laser Diode Power Wire is Not More Than 2m
  • Remote Control Interface: RS232

Product Overview:

High Voltage CW/QCW Laser Diode Driver Overview

This high power CW / QCW laser diode driver is designed to drive high current laser stacks and arrays. Designed and optimized for use as part of laboratory, educational, experimental, and industrial applications, the driver has current limit, duty cycle limit, and safety interlocks to help protect the laser diodes and the user.

The rack-mounted controller includes an RS232 interface and PC-based software for control. The front-panel provides easy control of the driver, with a large LCD display and adjustment knob .

Versatile Options Increase Driver Functionality

Multiple high power CW/QCW laser diode drivers can be used to build the Multichannel Electrical Power Supply System (MEPSS). The MEPSS can operate up to 20 laser diode drivers, and is designed for things like inertial confinement fusion, laser-matter interactions, laser diode array testing, and other cases where multiple high power lasers are controlled simultaneously.

The laser diode driver can be factory-equipped with a high power temperature controller for laser temperature stabilization; inquire for details and options.

Additionally, the flexible internal architecture allows for factory customization to suit customer requirements for a specific load. Optionally, the driver can be equipped to operate in a temperature range of –40°C / +50°C.
