6A, 5V OEM Laser Driver
- Low-Noise Output Current
- Temperature Compensated for Stability
- Programmable Current Limit

$84.00
sku / item#: RLS/ATLS6A201D
ships: 2 Weeks

Key Features
  • 6000mA Board-Level OEM Driver
  • Low-Noise, High-Stability Output
  • Over-Temperature Protection Circuit
  • Offered by Analog Technologies, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/ATLS6A201D
PRICE $84.00
Electrical Specifications
  • Maximum Output Current: 6000 mA
  • Current Output Noise: 8.66µA P-P @ 0.1Hz ∼ 10 Hz
  • High Stability: ± 12mA @ 6 A (0.2%) for entire temp. range
Operational Specifications
  • Input Voltage Range: 3.1 V – 6.0 V
  • Control Accuracy: ± 0.2%
  • Operating Case Temperature: -40°C – 85°C
Mechanical Specifications

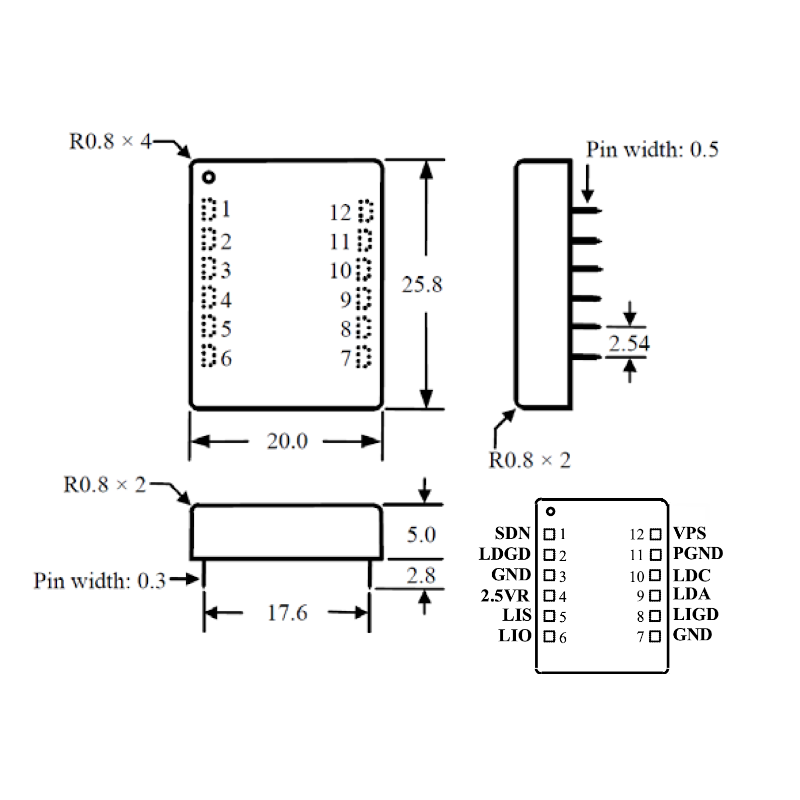

  • Dimensions: 25.8mm × 20.0 mm × 7.8mm
  • Package Style: DIP
  • 100% Lead (Pb)-Free and RoHS Compliant
  • Refer to Datasheet for Complete Specifications

Product Overview:

High Voltage, Compact, OEM Laser Diode Driver Overview

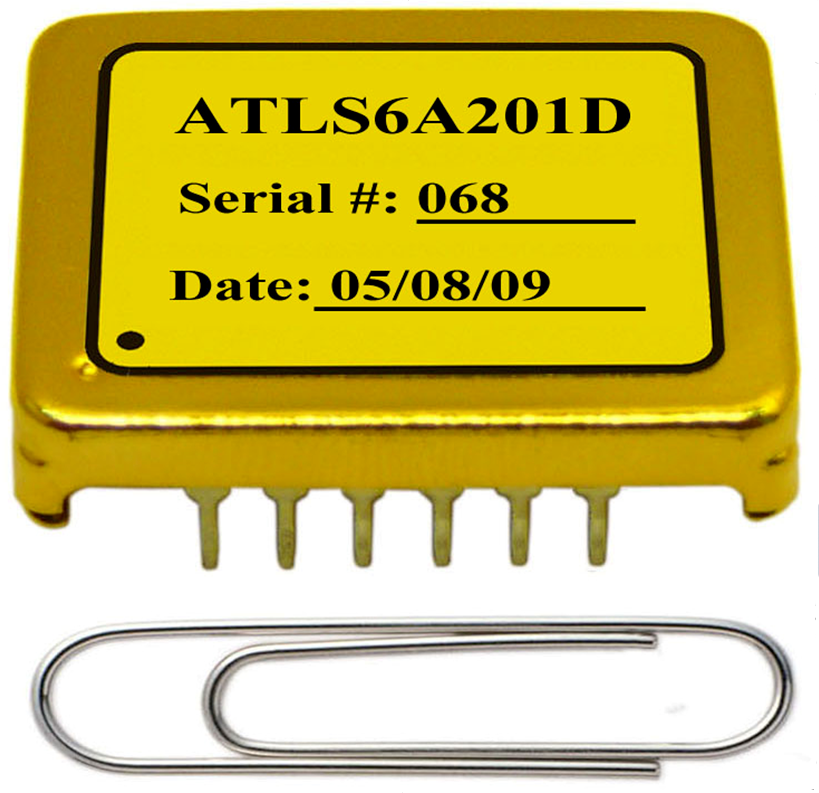

The ATLS6A201D is a through-hole PCB-mounted electronic module designed for driving diode lasers with up to 6000mA low noise current.

In order to maximize electrical and thermal efficiency, the output voltage of the driver is approximately 0.8V less than the input voltage. This feature allows the designer to tailor the system to the exact laser specifications, and maximizes overall system efficiency.

Maximum Stability in Real-World Environments

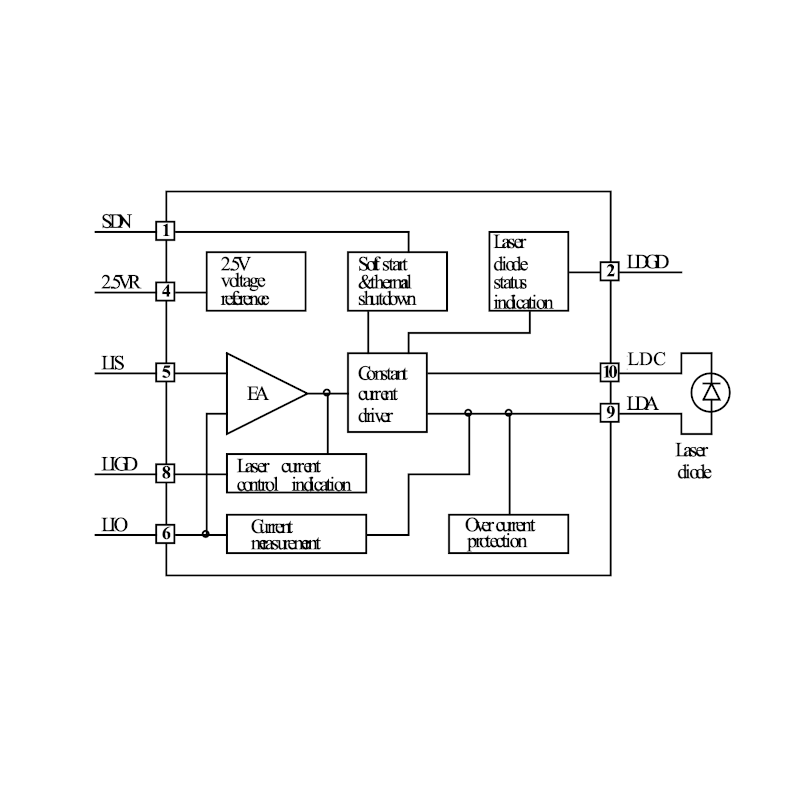

The controller has a temperature compensation network so that the output current remains stable even as the controller temperature rises. In case the controller temperature exceeds the preset limit of 120°C, the controller will shut down by itself to prevent the controller from being damaged by the excessive heat.

ATLSxA201 Series Flexibility

The ATLSxA201 Low-Noise OEM Laser Diode Driver series is available in a number of different output current ranges to suit a wide variety of applications. Drivers are available with the following maximum output current: 500mA, 1A, 2A, 3A, 4A, 6A. Inquire for information on the different options.
