60 Amp, 600W OEM Laser Diode Driver, Compliance Voltage up to 15 Volts

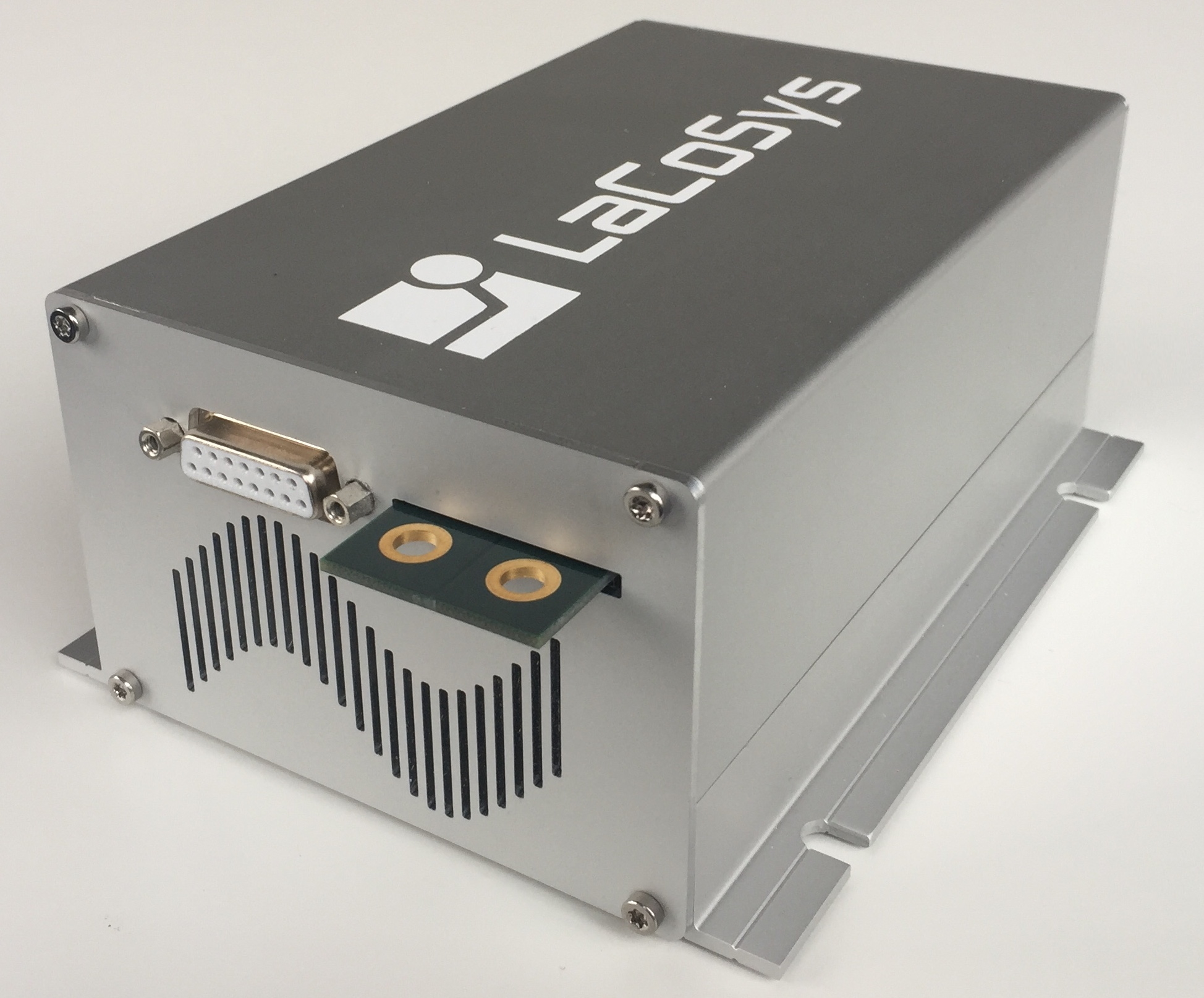

  • 60A, 600W, OEM Laser Diode Driver Module

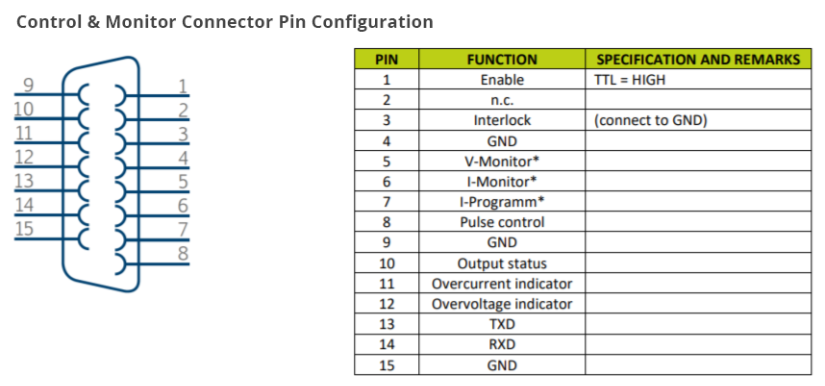

  • 60A, 600W OEM Laser Diode Driver Pinout

Request Quote
sku / item#: S600-60 / LASER-DRIVER
ships: Request a Quote for Current Ship Date

Key Features
  • CW / QCW Laser Diode Driver
  • Output up to 60 Amps at 600 Watts
  • Available Compliance Voltage Ranges from 4.5V up to 15V
  • Overload Protection Circuits
  • Temperature-Controlled Cooling Fan
  • QCW Mode by Pulse Control Pin
  • Offered by LaCoSys, GmBH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL S600-60 / LASER-DRIVER
PRICE Request Price
Key Specifications
  • Current Output Range: 0 to 60 Amps
  • Compliance Voltage (max): 15 Volts
  • Customer Specified Available Compliance Voltage: 4.5V to 15V
    (specify at time of order)
  • Set-point Accuracy: 0.5%
  • Current Stability: < 0.1%
  • Current Ripple: < 0.5% @ full load (BW=20Hz)
Laser Diode Protection Circuits
  • Over-Current Limit
  • Over-Voltage Limit
  • Over-Temperature Limit
Input Power and Dimensions
  • Input Power: Universal AC Input 90 ~ 230 VAC
  • Dimensions (mm): 185 x 130 x 70
User Interface
  • These units can be ordered with either an analog or digital control user interface; please specify at the time of order; please contact us if you have questions or need more details

Product Overview:

60 A, 15 V, High Power Laser Diode Driver Module

The compact SmartPower S series laser diode driver module offers up to 60 Amps of output current from a small footprint module. These drivers have been developed for the safe operation of diode lasers at high power levels in industrial environments. The analog or digital interface allows the use as astable laser power source in machines up to complex laser systems. The compact housing is easy to cool and easy to mount. Microprocessor controlled signal processing and safety shutdowns ensure reliable operation in the field. They can be ordered with a galvanic isolated analog or digital interface and switched in QCW mode by a pulse input control pin.
