High Current, Short Pulse Width Laser Diode Driver; 50A Pulses with < 5 Nanosecond Pulses; Compliance Voltage Rated up to 350 Volts

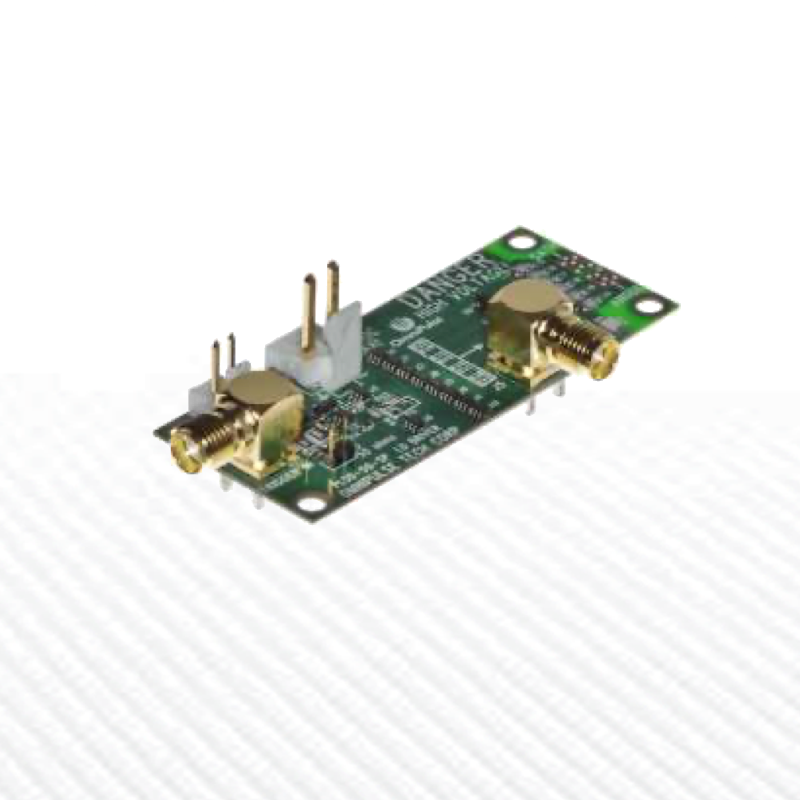

  • 50 Amp Pulsed Laser Diode Driver OEM

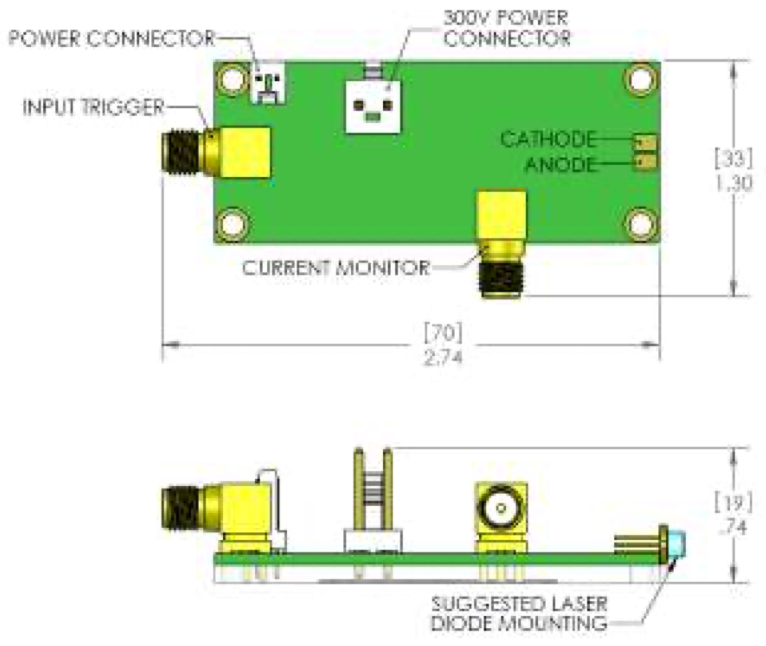

  • Short Pulsed Laser Diode Driver Dimensions

Request Quote
sku / item#: PLDD-50-SP
ships: Request a Quote for Current Ship Date

Key Features
  • Output Current 20 to 50 Amps
  • Output Pulse Width: Down to 5 ns
  • Compliance Voltage: Up to 350 V
  • Dual Power Supply Configuration
  • Pulse Repetition Rate to 15 kHz

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL PLDD-50-SP
PRICE Request Price
General SPECIFICATIONS
  • Output Current: up to 50 A
  • Compliance Voltage: 350 V
  • Pulse width: < 5 ns
  • Repetition Rate: up to 15 kHz
  • Rise Time: < 2.5 ns
  • Fall Time: < 4 ns
  • Input Power: +12 to +28VDC at 10mA; and +250 to +350V at 6mA
  • Dimensions: 0.74” x 1.30” x 2.74”
  • Refer to Datasheet for Additional Specifications

Product Overview:

High Current, Short Pulsed Laser Diode Driver

The Model PLDD-50-SP laser diode driver is a high power, high speed, solid-state current source driver that is ideal for compact industrial applications that require extremely short pulses. Analog Modules' proprietary technology delivers a small footprint, high stability, laser driver with 20 to 50 Amp output current, and up to 350 V compliance voltage.

The Model PLDD-50-SP laser diode driver is driven by two power supplies: 12 - 28 V at 10 mA for control functions, and 250 V - 350 V at 6 mA for the laser driver supply.

Output pulse widths of 5 ns (shorted output) are possible with pulse repetition rate from single shot to 15 kHz. The ultimate current is dependent on the pulse repetition frequency; see the attached datasheet for details.
