500mA Laser Diode Controller with Integrated Butterfly Mount

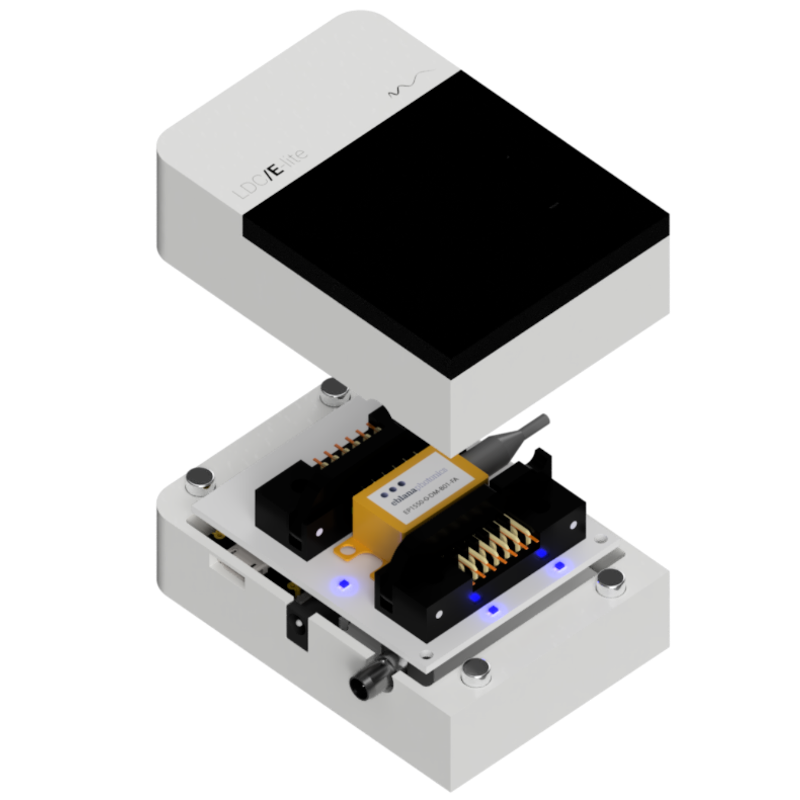

  • LDC E-Lite Laser Diode Controller with Butterfly Mount

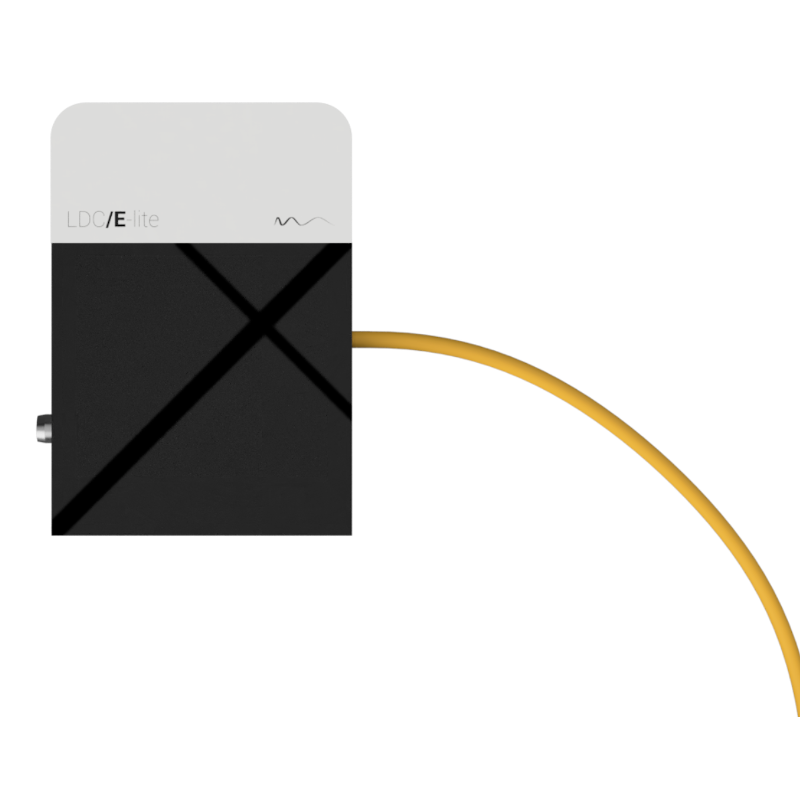

  • LDC E-Lite Laser Diode Controller Top View

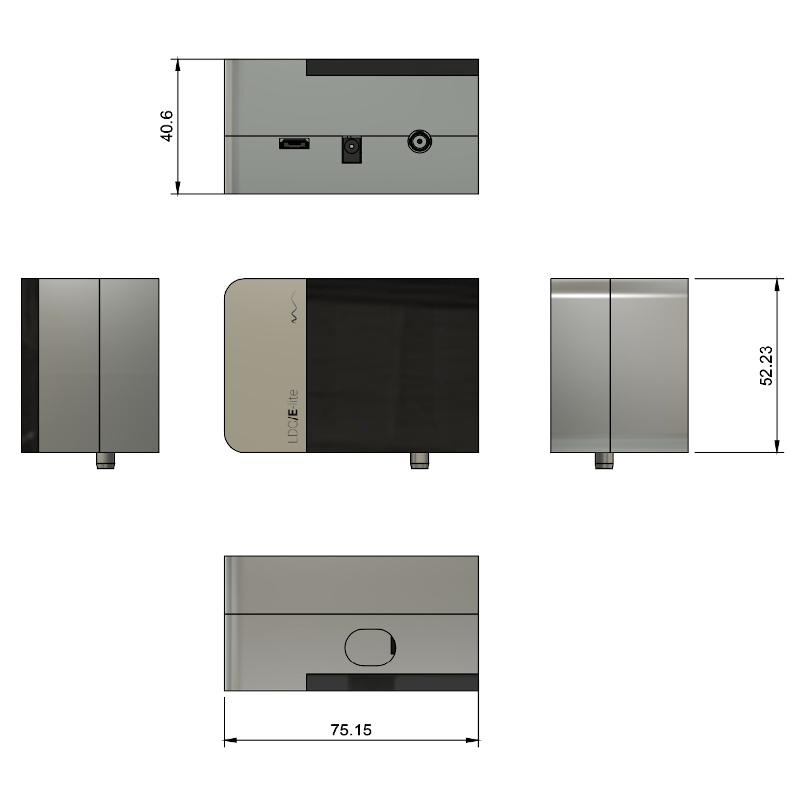

  • LDC E-Lite Laser Diode Controller Dimensions

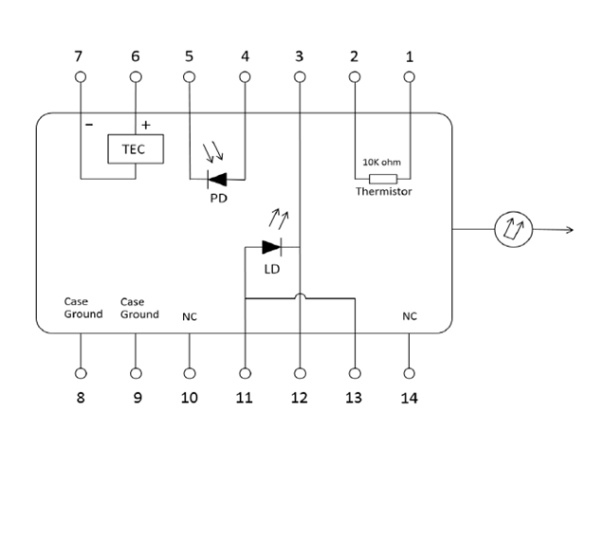

  • LDC E-Lite Laser Diode Controller Mount Pinout

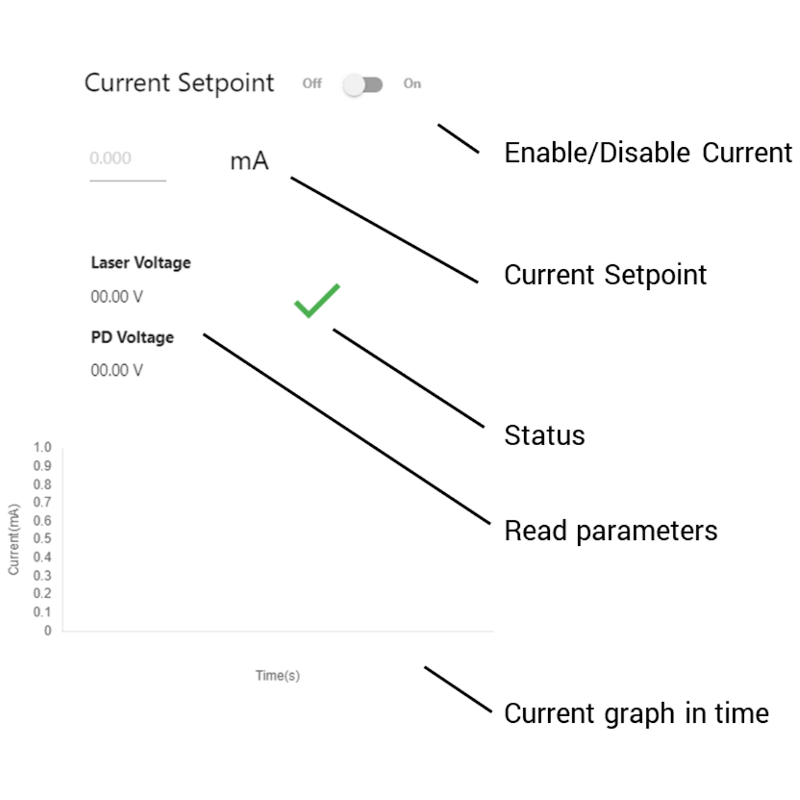

  • LDC E-Lite Laser Diode Controller GUI Laser

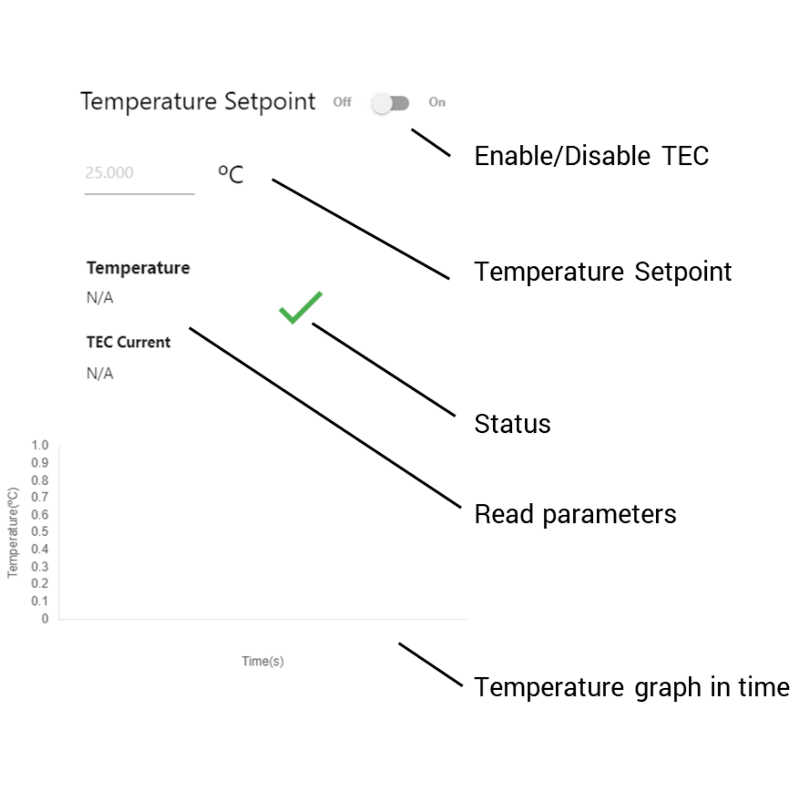

  • LDC E-Lite Laser Diode Controller GUI TEC

Request Quote
sku / item#: E-Lite | LASER-DIODE-CONTROLLER
ships: Inquire

Key Features
  • 500 mA Laser Diode Driver
  • 5 Watt TEC Controller
  • Digital PID TEC Control Loop
  • Connectivity: Micro-USB and WiFi
  • Laser Safety Features: Over-Temperature Shutoff, Shorted Output. TEC Current Limit
  • Over-The-Air Updates with Continuous Improvements and Added Functionality
  • Offered by Luzwavelabs
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL E-Lite | LASER-DIODE-CONTROLLER
PRICE Request Price
General SPECIFICATIONS
  • Laser Driver Output Current: 0 - 500 mA
  • Laser Driver Output Voltage: 5 V (Max)
  • Current Setpoint Resolution: 8 μA
  • Current Noise Density: <5 μA
  • External Modulation: up to 1 MHz
  • Temperature Controller Output: ±1 A, 5 V
  • Temperature Setpoint Resolution: 16 bits
  • Temperature Stability: ±0.001 ℃
  • Connectivity: Micro-USB, WiFi
  • Power Input: 5 VDC, 2 A Minimum
  • Power Connector: 1.3 mm center pin, 4 mm outer diameter, DC power jack
  • Dimensions (L x W x H): 75.1 mm x 52.2 mm x 40.6 mm
  • Operating Temperature: 0 ℃ to 40 ℃
  • Refer to Datasheet for Additional Specifications

Product Overview:

500mA Compact Benchtop Laser Diode Controller with Integrated Butterfly Mount Overview

The Luzwavelabs LDC/E-Lite miniature laser controller with integrated laser mount features a 500 mA floating current driver, temperature controller with 1mK stability and digital PID control loop, and integrated butterfly laser mount. This innovative laser diode controller is compact, provides precise and reliable control of different types of laser diodes, features integrated magnets for secure mounting to an optical table, and can be battery powered.

Easy to Use GUI Interface

The E-Lite laser diode controller is easily operated with the intuitive GUI interface over WiFi or Micro-USB. A Windows-compatible application and LabView drivers are available for download from the Luzwavelabs website.

High Performance Current Source

    + 500 mA maximum current with high stability
    + Floating, isolated output, compatible with any kind of laser: Cathode-Grounded, Anode-Grounded, and Floating
    + External modulation with 1 MHz bandwidth

High Stability Temperature Controller

    + Down to 1 mK stability
    + Over-Temperature Shut-off and TEC Current Limits
    + High resolution measurement (24 bits)
    + 5 ℃ to 60 ℃ control range
    + Digital PID control loop
    + Graphical PID configuration

Integrated Laser Mount

    + Butterfly laser diode mount provided standard
    + Interchangeable laser mounts available for compatibility with any kind of laser diode packages: 14-pin butterfly, 7-pin butterfly, TOs, custom pinout.
    + Zero-Insertion-Force (ZIF) sockets
    + Improved thermal management (70 oz PCB and thermal pad acting as heatsink)
    + Magnetic detachable cover for easy laser handling
