500mA OEM Laser Diode Driver
- High Efficiency Switch Mode Driver
- Dual Setpoint Input Pins
- EMI-Shielded, Board-Level Driver

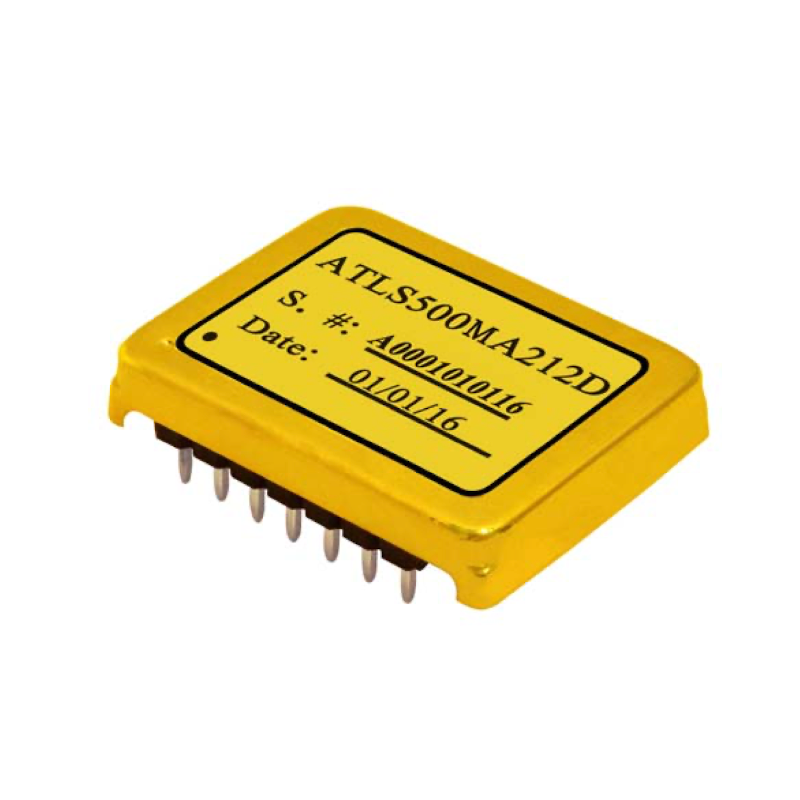

  • 500mA, Low-Noise, OEM Laser Driver

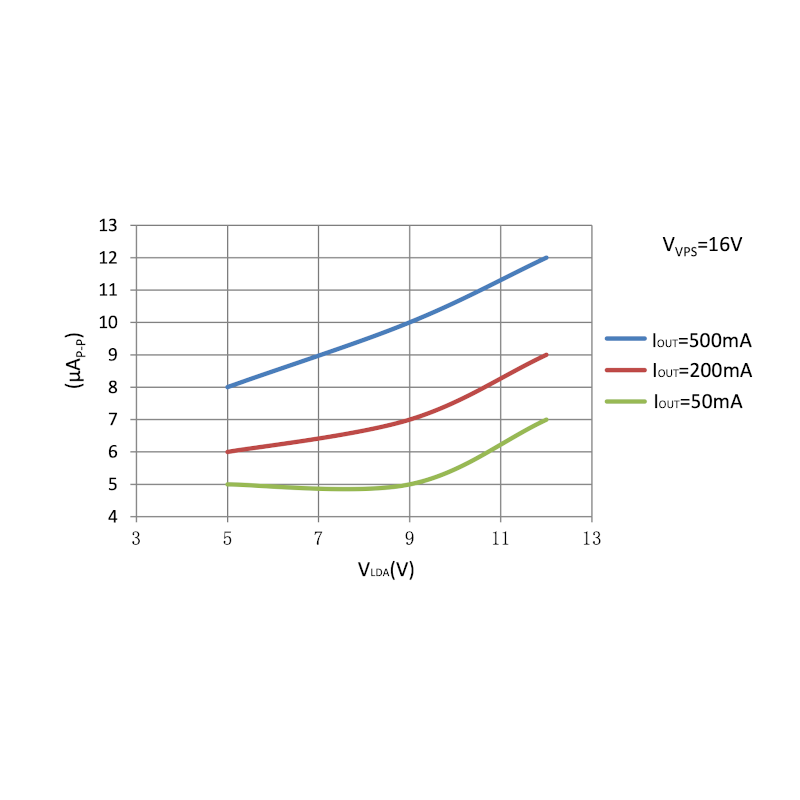

  • 500mA OEM Driver Noise Performance

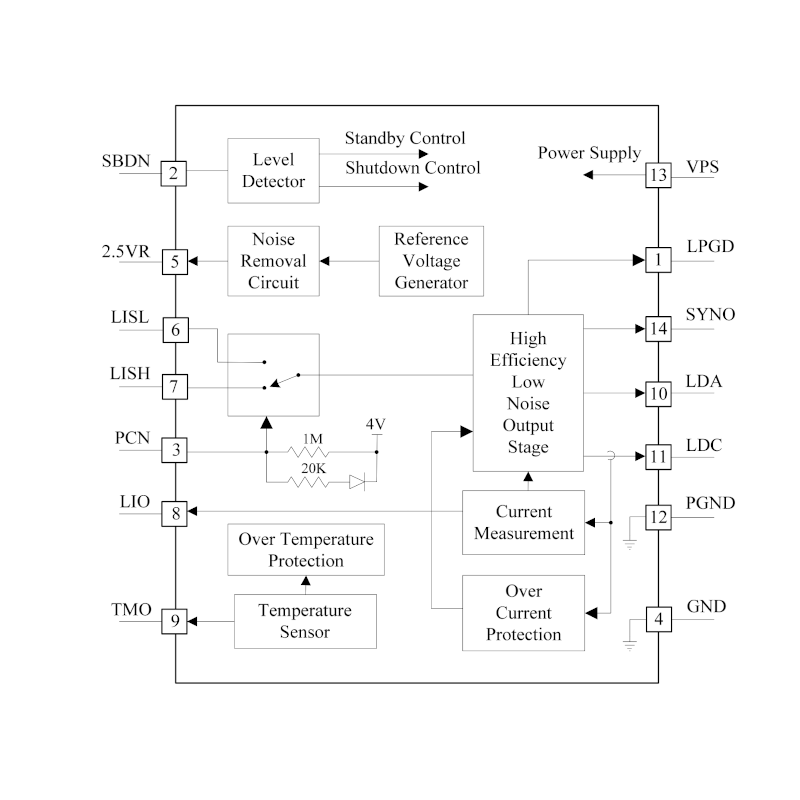

  • 500mA OEM Laser Driver Block Diagram

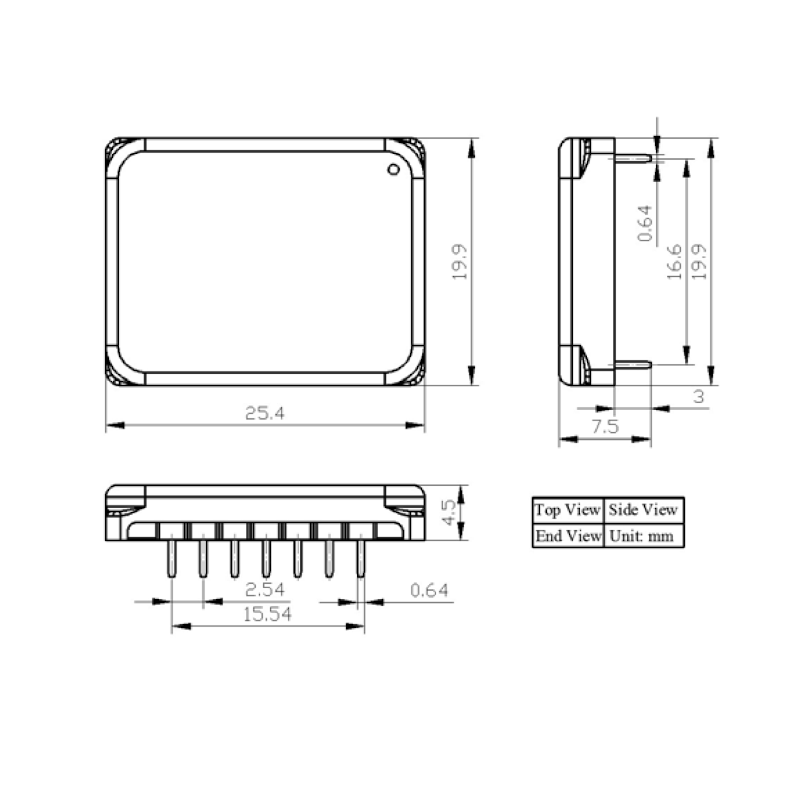

  • 500mA OEM Laser Driver Dimensions

$84.00
sku / item#: RLS/ATLS500MA212D
ships: 2 Weeks

Key Features
  • 500mA, Switch-Mode OEM Driver
  • Compact, EMI-Shielded Case
  • Over-Temperature Protection Circuit
  • Dual Setpoint Input Pins
  • Ideal for Low Noise Devices
  • Offered by Analog Technologies, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/ATLS500MA212D
PRICE $84.00
Electrical Specifications
  • Maximum Output Current: 500 mA
  • High Efficiency: >80% (IOUT = 500 mA @ VLDA = 11 V & VVPS = 15 V)
  • Low Output Current Noise: < 15µAP-P @0.1Hz~10Hz
  • Low Output Ripple Voltage: < 4mV@500kHz
  • High Current Stability: <±300µA@500mA &−20°C~80°C
Operational Specifications
  • Input Voltage Range: 4.5 V – 15 V
  • Control Accuracy: ± 0.1%
  • Operating Ambient Temperature: -40°C – 85°C
  • Operating Case Temperature: -40°C – 110°C
Mechanical Specifications
  • Dimensions: 25.4 mm × 19.9 mm × 7.5mm
  • Package Style: DIP
  • 100% Lead (Pb)-Free and RoHS Compliant
  • Refer to Datasheet for Complete Specifications

Product Overview:

High Voltage, Compact, OEM Laser Diode Driver Overview

The ATLS500MA212D is a PCB-mounted electronic module designed for driving diode lasers with up to 500mA low noise current.

In order to maximize electrical and thermal efficiency, the maximum output voltage of the driver is proportional to the input voltage (0.8 x VVPS to 0.9 x VVPS). This feature allows the designer to tailor the system to the exact laser specifications, and maximizes overall system efficiency. By deliberately matching the driver input voltage to the laser forward voltage, driver efficiency of over than 80% can be achieved.

Dual Setpoint Modulation

The driver features two independent set point inputs. The laser driver can be digitally controlled to switch between the two set points inputs to achieve rapid modulation at the two current levels.

Overheat Protection Feature

The laser driver will initiate a safety shut-down if the internal temperature exceeds 120°C. A driver status pin indicates the state of the driver for external electronics to poll.

Design and Application Flexibility

This laser driver generates a high accuracy high-stability, low-noise voltage reference output which can be used for setting the output current and also be used as the reference voltage for the ADCs (Analog to Digital Converters) and/or DACs (Digital to Analog Converters).

The ATLS500MA212D uses a constant frequency high efficiency PWM output stage. Its switching signal is taken out through a buffer at the SYNO port, pin 14, which can be used by other switch mode electronics as the trigger signal to avoid frequency beating interference, if the free-run frequency is around 500kHz (it should be noted there is an output 4mVp-p ripple voltage at 500kHz).

Evaluation Board Option

An evaluation board is available to speed R&D and prototype development activities. Inquire for a quotation for part number ATLS212EV1.0.
