8 Channel High Power Laser Diode Driver; Output up to 45 Amps, 15 Volts Per Channel

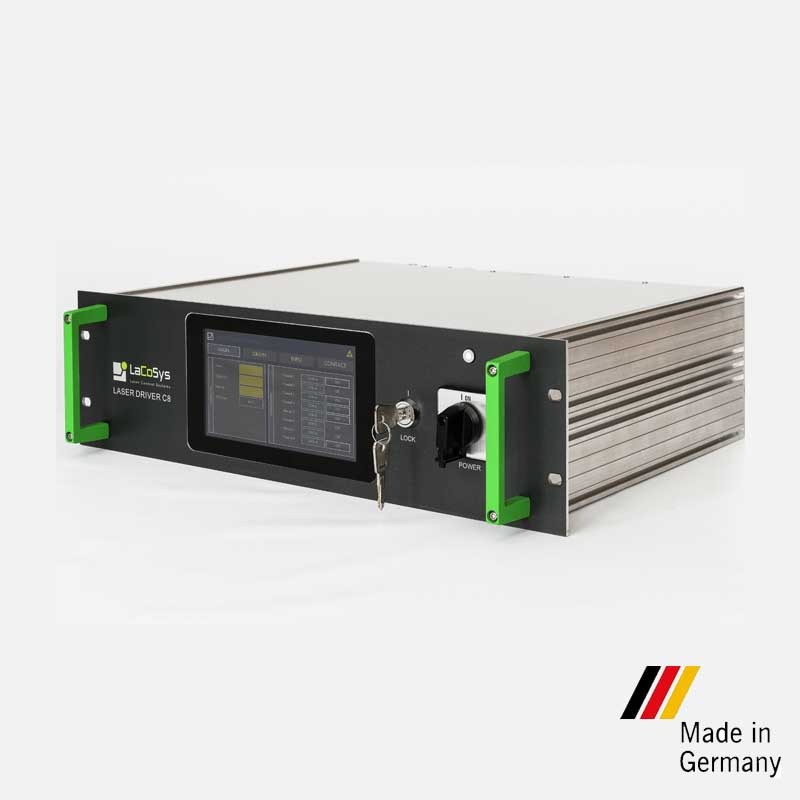

  • Front Product Image SmartPower Laser Diode Driver

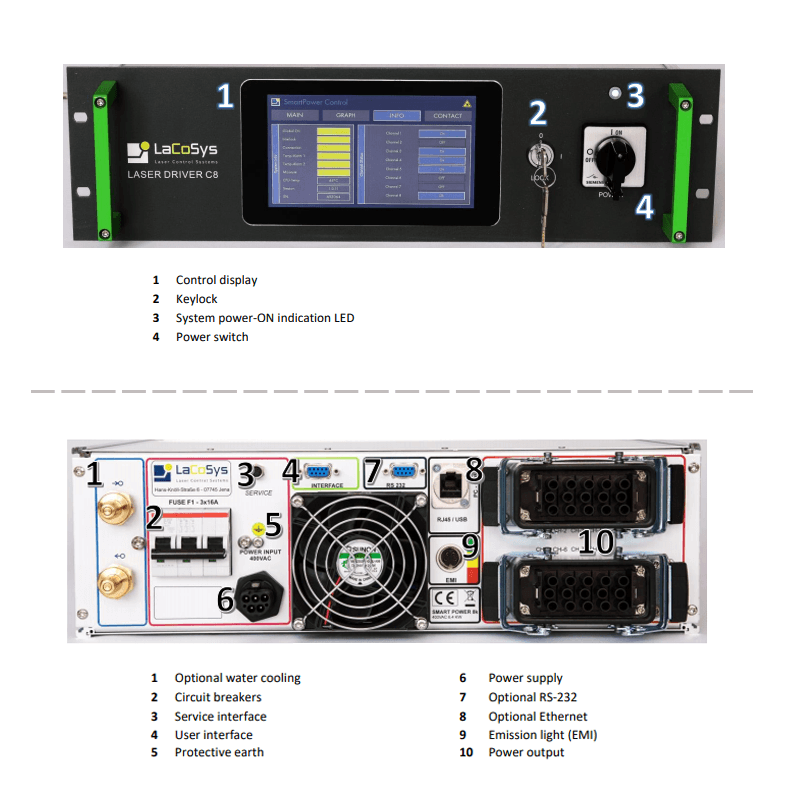

  • 8 channel laser diode driver system rear panel view

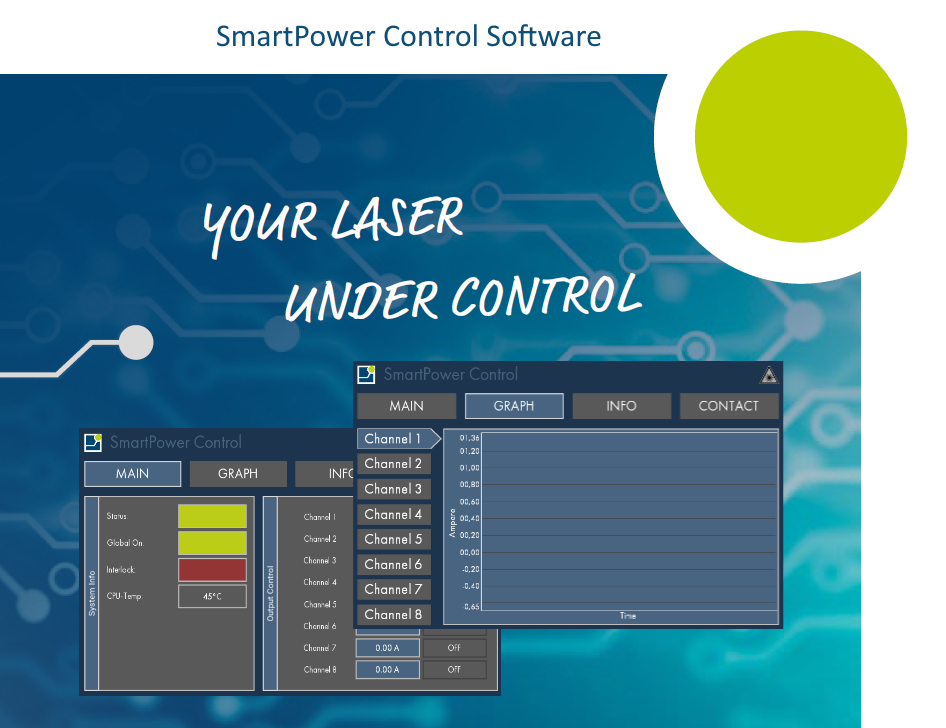

  • 45A, Multichannel Laser Diode Software

Request Quote
sku / item#: L4800-45C8LN / LASER-DRIVER
ships: Request a Quote for Current Ship Date

Key Features
  • Current Range: 0 - 45 Amps Per Channel
  • 8 Independent Laser Diode Driver Channels
  • Output Power up to 600W (total output power) Per Channel
  • Requires Water Cooling Input to Chassis for Heat Removal
  • 7’’ Touch Panel Control Screen
  • Optional RS-232 and Ethernet interfaces
  • Offered by LaCoSys, GmBH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL L4800-45C8LN / LASER-DRIVER
PRICE Request Price
Key Specifications
  • Per Channel Output Current Range: 0 - 45 Amps
  • Per Channel Compliance Voltage Range: 15 Volts
  • Total Output Power Per Channel: 600 Watts
  • Current Set-point Accuracy: 0.5%
  • Output Current Stability (8 hrs): 0.1% of Full Scale Set Point
  • Current Noise and Ripple: < 0.5% @ measured at full 600W output power load (BW=20Hz)
Protection Circuits
  • Over Current Limit
  • Over Temperature Limit
  • Over Voltage Limit
  • Remote Shutdown via 9-pin D-Sub Connector Input
  • Laser On/Off Indicator Signal via 9-pin D-Sub Connector Input
Interface and Input Power Requirements
  • User Interface: 7 inch touch panel display
  • Input Power: 3 phase 208VAC
  • Power Input Connector: WIELAND RST 20I5G
  • Maximum Power Consumption: 5.6 kW
  • Dimensions (mm): 602 x 483 x 132 (Length x Width x Height)
Water Cooling Specifications
  • Water Line Connector: KSG 18 NW7 BA
  • Min/Max Water Flow Rate (liters per minute): 2 / 10
  • Coolant: Regular Tap Water

Product Overview:

Modular High Power Laser Diode Driver

These high power multi-channel SmartPower L series laser diode drivers have been developed for the safe operation of diode lasers at high power levels. They offer a combination of high power and low noise CW operation. Their simple operation through a front panel touch screen in combination with their modern microprocessor technology make them the first choice for laboratory and research applications. The comprehensive safety functions ensure a safe operation of the laser diodes and the driver.

Easy and Flexible Laser System Integration

The multi-channel driver can be quickly and easily integrated into existing safety intfrastructure using key switches, interlocks, and output control. The 19" standard rack-mount design guarantees simple system integration. The optional RS232 or Ethernet interface ensures a reliable connection to machine and PC. Control software is available for the user.
