40 Ampt High Power Laser Diode Driver, Four Channel System

Request Price   Ships: Contact | Model DD40-4

Key Features
  • 4 Channels
  • Up to 40 Amps Per Channel
  • Up to 5 Volts Per Channel
  • Photodiode input for constant power mode
  • Modulation input

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL DD40-4
PRICE Request Price
DIODE DRIVER
  • Output current range (per channel): 0 - 40 A
  • Output compliance voltage range: 0.8 - 5 V
  • Maximum output power: 250 W across all four channels
  • Total output noise: <0.02 % at 40 A
  • Current setting resolution: 1 mA
  • Current accuracy: ±2 %
  • Current temperature stability: 50 ppm/°C
MODULATION
  • Input sensitivity: 1 A/V
  • Modulation range: ±3.2 A around the set point
  • Modulation frequency response: DC – 10 kHz
  • Input impedance: 10 kΩ
  • Input resolution: 24 bits
  • Maximum safe input: ±20 V
  • Monitor input linear range: ±4 V
PHOTODIODE
  • Input impedance: 20 Ω (transimpedance)
  • Transimpedance gain range: 80 V/A – 20 k V/A
  • Maximum safe input: ±5 V (protected)
  • Input linear range: ±10 mA
  • Input resolution: 24 bits
AUXILIARY I/O
  • Interlock
  • Emission LED
GENERAL
  • Mains input voltage: 100-240 V AC, 50/60 Hz, 350 VA
  • Size (W x H x D): Half rack (203 mm) x 2U (89 mm) x 345 mm
  • Weight: 4.1 kg
  • Operating temperature: 0 °C to 70 °C
  • Storage temperature: 20 °C to 85 °C
  • Relative humidity: <90 % humidity, non-condensing
  • Indoor/outdoor use: Indoor use only
  • Altitude: <2000 m

Product Overview:

Precision high power laser diode driver for high power single emitter laser diodes. Ethernet computer interface for remote operation and easy setup. Output currents up to 40 amps. The Ice Bloc DD40 is a high-power, precision laser diode driver - available with a choice of 1 to 4 independent channels - designed to help you build laser-based photonic systems for research, experimental and production applications. Driving the latest generation of high power laser diodes, the 0040 combines high current up to 40 Amps low noise output with high accuracy and high-resolution current set points. Its compact form factor with customizable software interface allows easy integration of the 0040 into experiments or OEM setups.

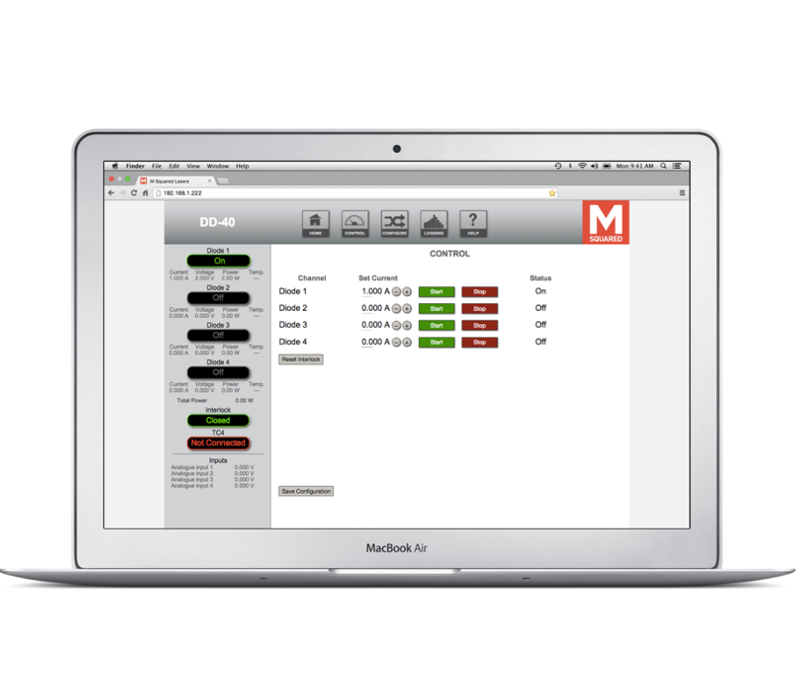

Configure and run experiments from a modern web interface which provides easy access to all features and provides rich data visualization. Ice Bloc has a built-in web server, so there is no software to install or dedicated software drivers to download.

ce Bloc's high-end design and engineering strikes the optimum balance between noise, power and efficiency. All our components and electronics are fully optimised and highly sensitive ensuring you get the precision and power you need in your experiments.
