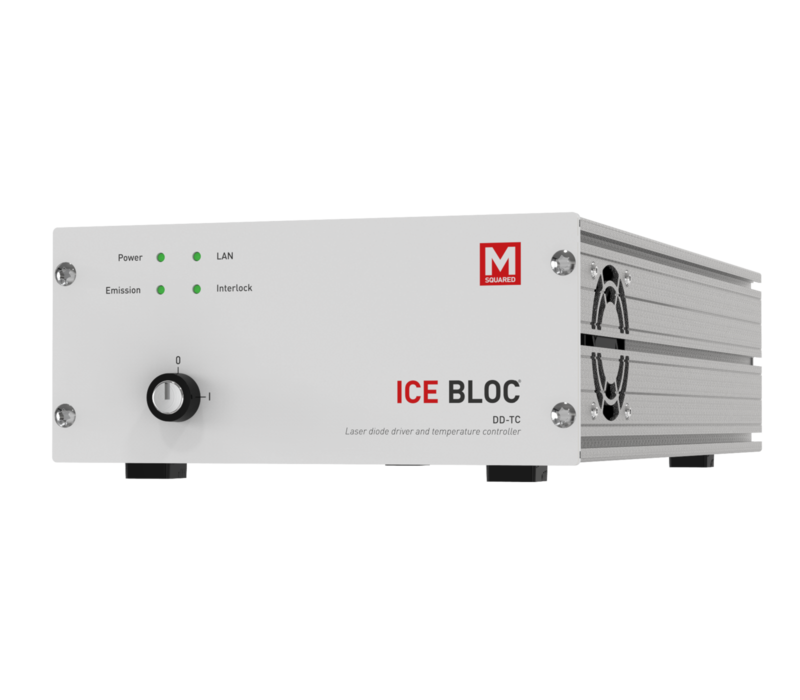

4 Channel TEC Controller, 108W

Request Price   Ships: Contact | Model TC-4

Key Features
  • 4 Channel Output
  • TEC Current: Up to 5 Amps
  • TEC Voltage: Up to 21.6 Volts

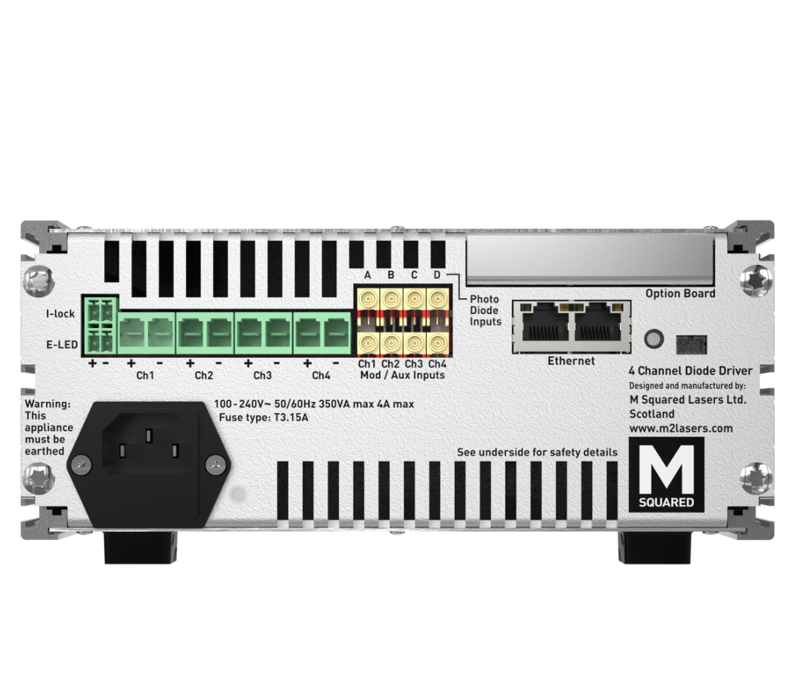

  • Ethernet Interface

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL TC-4
PRICE Request Price
Temperature Controller
  • Output voltage per channel: ±21.6 V
  • Output type: Bi-directional, linear
  • Output current per channel : ±5 A
  • Maximum output power: 300 W across all four channels
  • Temperature set point resolution: 0.001 °K - typical value, steady state
  • Temperature control stability: <1 mK
  • Set point temperature coefficient: < 5 ppm/°K
  • Temperature set point range: -20.15 °C to +79.85 °C
  • NTC thermistor range: 10 kΩ - 100 kΩ
  • Extended thermistor range: 1 kΩ - 1MΩ (slightly lower resolution)
GENERAL
  • Mains input voltage: 100 - 240 V AC, 50/60 Hz, 350 VA
  • Size (W x H x D): Half rack (203 mm) x 2U (89 mm) x 345 mm
  • Weight: 4.1 kg
  • Operating temperature: 0 °C to 70 °C
  • Storage temperature: -20 °C to 85 °C
  • Relative humidity: <90 % humidity, non-condensing
  • Indoor/outdoor use: Indoor use only
  • Altitude: <2000m

Product Overview:

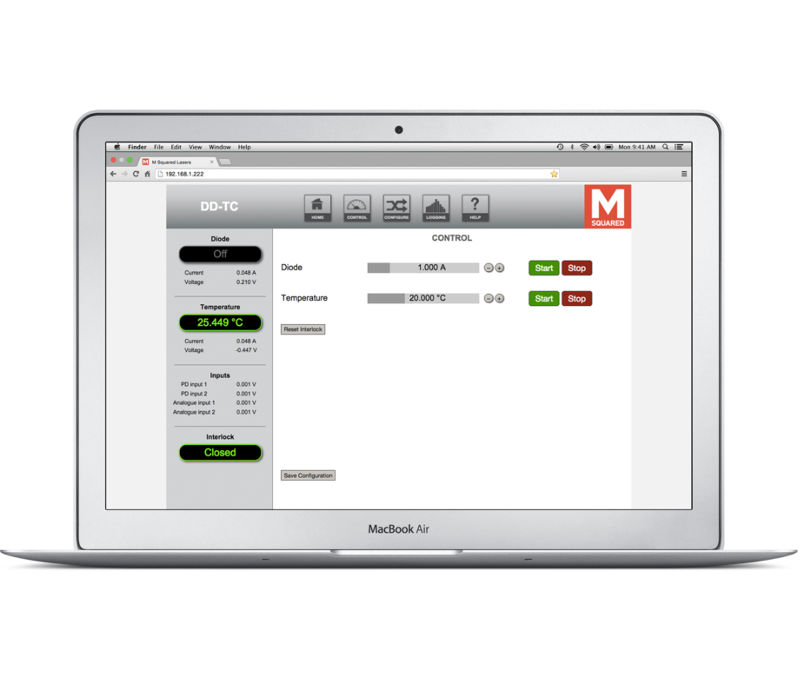

High performance TEC controller designed for precision control of laser diode temperatures. Ethernet interface allows for easy high performance control via MATLAB, Python and LabVIEW. Four channel output with output power up to 108 watts.
