2.5 Amp TEC Controller Integrated Circuit
- PWM Output for Maximum Efficiency
- 3.3 V Input Voltage
- 3 V Output Voltage

$73.00
sku / item#: RLS/TECA1-3V-3V-D
ships: Request a Quote for Current Ship Date

Key Features
  • 7.5W Board-Level TEC Controller
  • PWM H-Bridge for High Efficiency
  • ±0.01ºC Temperature Stability
  • Multiple Models Available to Maximize Efficiency
  • Offered by Analog Technologies, a Laser Lab Source Marketplace Seller
  • Please contact Analog Technologies directly for further assistance
Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/TECA1-3V-3V-D
PRICE $73.00
Electrical Specifications
  • Max Output Voltage: 3 V
  • Max Output Current: 2.5 A
Operational Specifications
  • Temp. Stability: < ±0.01ºC
  • Default Control Range: 10°C – 35°C
  • Input Voltage Range: 3.1V – 3.5 V
  • PWM Frequency: 500 kHz
  • Operating Case Temperature: -40°C – 85°C
Mechanical Specifications

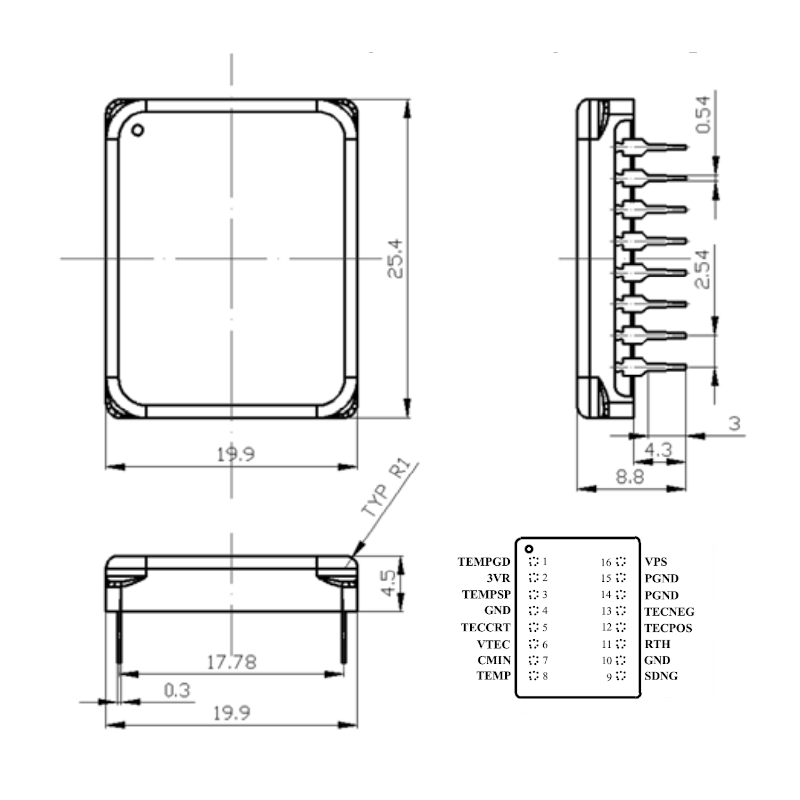

  • Dimensions: 25.4 mm × 19.9 mm ×8.8 mm
  • Pin Length: 4.3 mm
  • Package Style: DIP (SMT also Available)
  • 100% Lead (Pb)-Free and RoHS Compliant
  • Refer to Datasheet for Complete Specifications

Product Overview:

High Voltage High Current TEC Controller

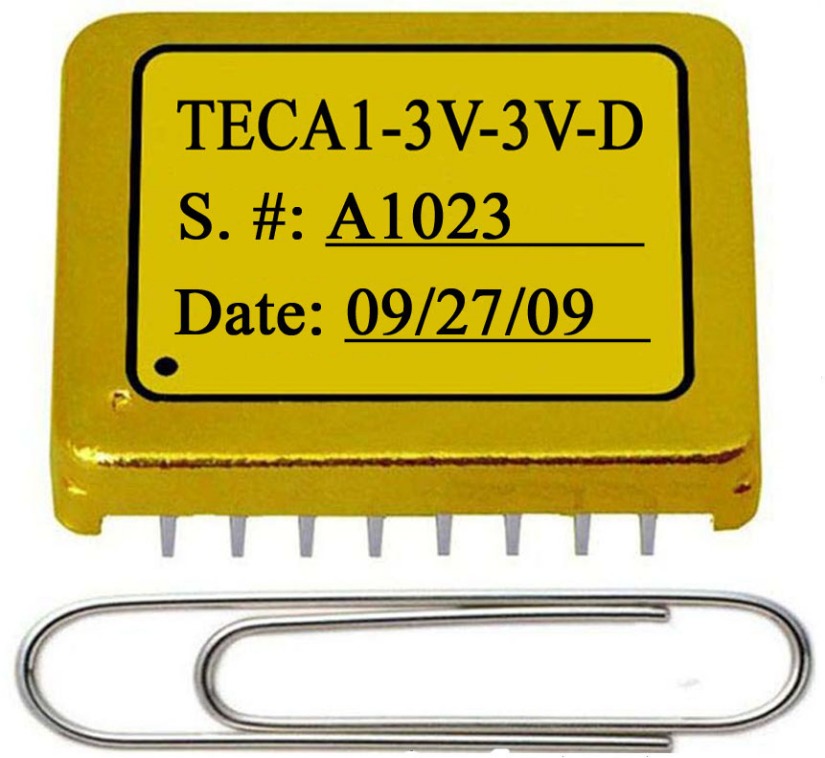

The TECA1-3V-3V-D is a compact, low profile, and fully EMI-shielded controller designed for driving TECs. Temperature stability of better than ±0.01°C can be achieved.

Maximum Versatility for Real-World Environments

The controller utilizes a PWM-driven H-Bridge for maximum electrical efficiency and bidirectional control agility. Intelligent pin functions and robust driver circuitry makes this one of the most capable board-level OEM controllers on the market.

High Efficiency Flexibility

The TECA1-3V-3V-D is driven by a single-polarity power supply voltage, The output voltage is approximately 0.2V below the power supply voltage.

Evaluation Board Option

An evaluation board is available to speed R&D and prototype development activities. Inquire for a quotation for part number TECEV104.

Select the Most Appropriate Model for the Application

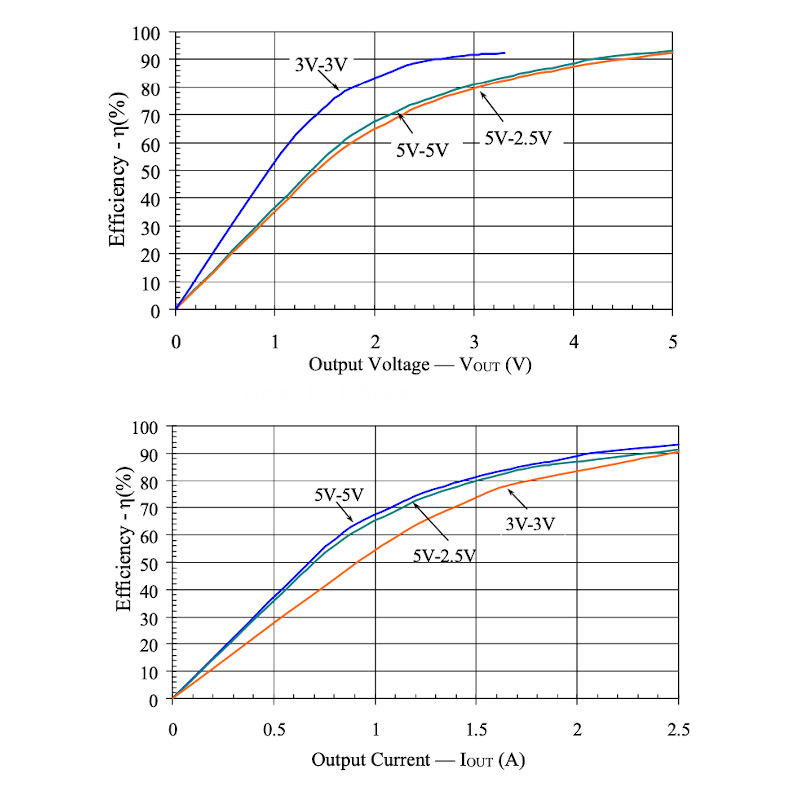

The electrical efficiency is maximum when the TEC output voltage is near to the power supply voltage, so this TEC Controller is available in a range of configurations. Efficiency levels above 90% can be achieved by choosing the appropriate controller for the TEC and application.

Review the datasheet, and inquire for details on ordering a different model to suit your application. The options are various combinations of these input/output voltages:
  • Input Voltage Range: 3.3V, 5V
  • Output Voltage: 1.3V, 2V, 3V, 4V, 5V

    • The default model is a DIP with through-hole pins. An SMT model is available, inquire for information.
