$3995.00 sku / item#: RLS/CCS-HP-PULSE-T1 ships: Request a Quote for Current Ship Date
- User Set Pulse Widths from 1.5 Nanosecond to CW
- 0 to 3.5 Amps Output Current
- 1 Hz to 10 MHz Repetition Rate (250 MHz Available, refer to options)
- Integrated Pre-Configured Butterfly Mounting Socket & TEC Temperature Controller
- Models Available for All Butterfly Pin Configurations (refer to spec table below)
- Built-In Pulse Generator and Remote Triggering

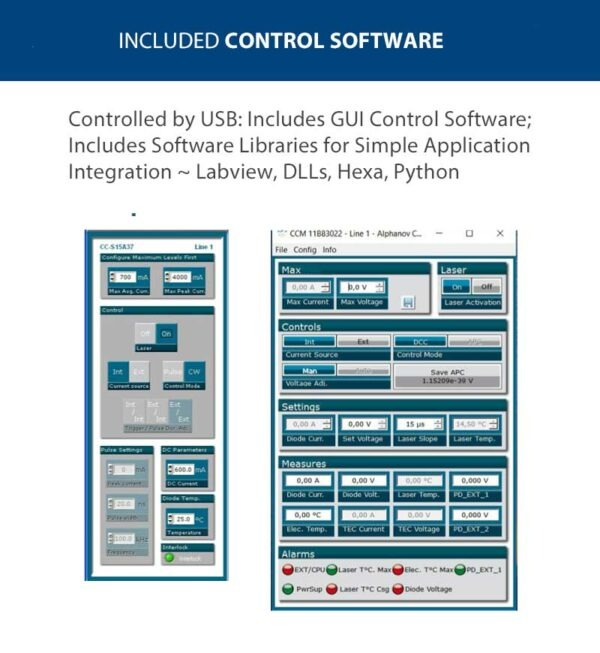

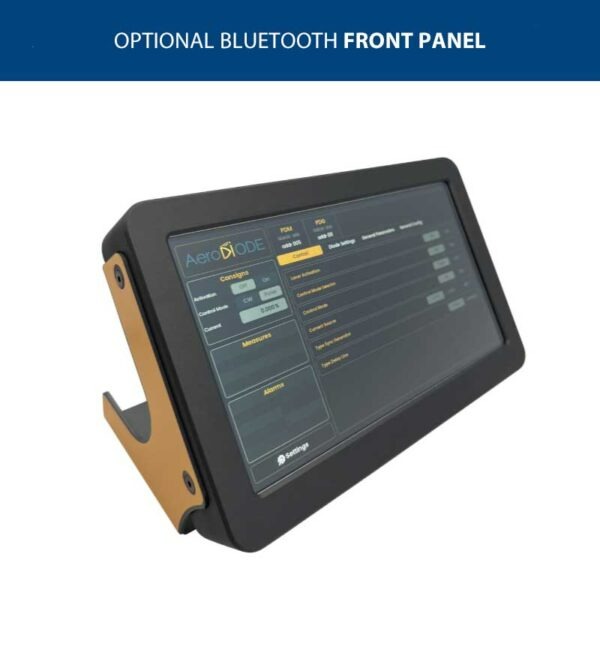

- USB Interface, Includes Programming Tools Software Suite, DLL Library and GUI
- /HPP Model option : 1 Hz to 250 MHz Repetition Rate and 4.0 Amp Current Range
- Manufactured by AeroDIODE, a Laser Lab Source Marketplace Seller
Sold & Supported in North America by: LaserDiodeControl.com, part of the Laser Lab Source Marketplace Group
Price and Delivery Quote
Buy Now / Add to Cart
Technical Questions for this ProductASK AN ENGINEER
Customers Also Considered:
|PULSED OUTPUT CURRENT & VOLTAGE SPECIFICATIONS|
|TEMPERATURE CONTROLLER & butterfly MOUNTING SOCKET|

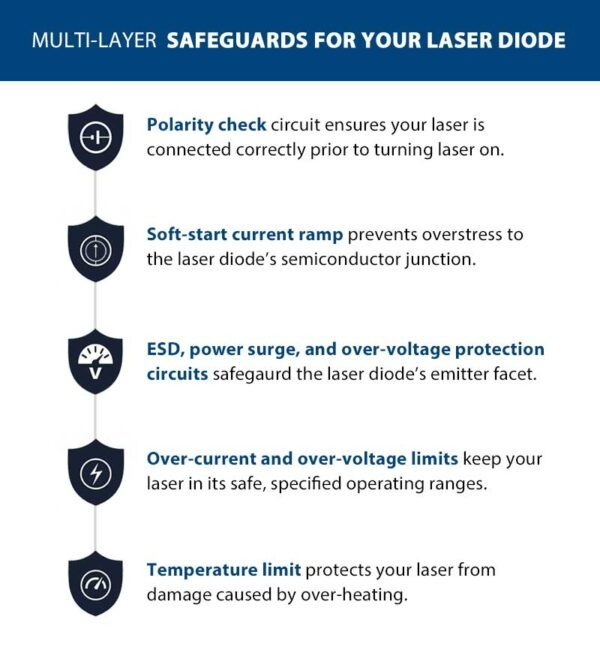

|Laser Diode Protection|
|user INTERFACE, power input & DIMENSIONS (all models)|
|Pulse Generation Mechanisms ( 3 Modes )|
|Pin Configuration Model Selection|

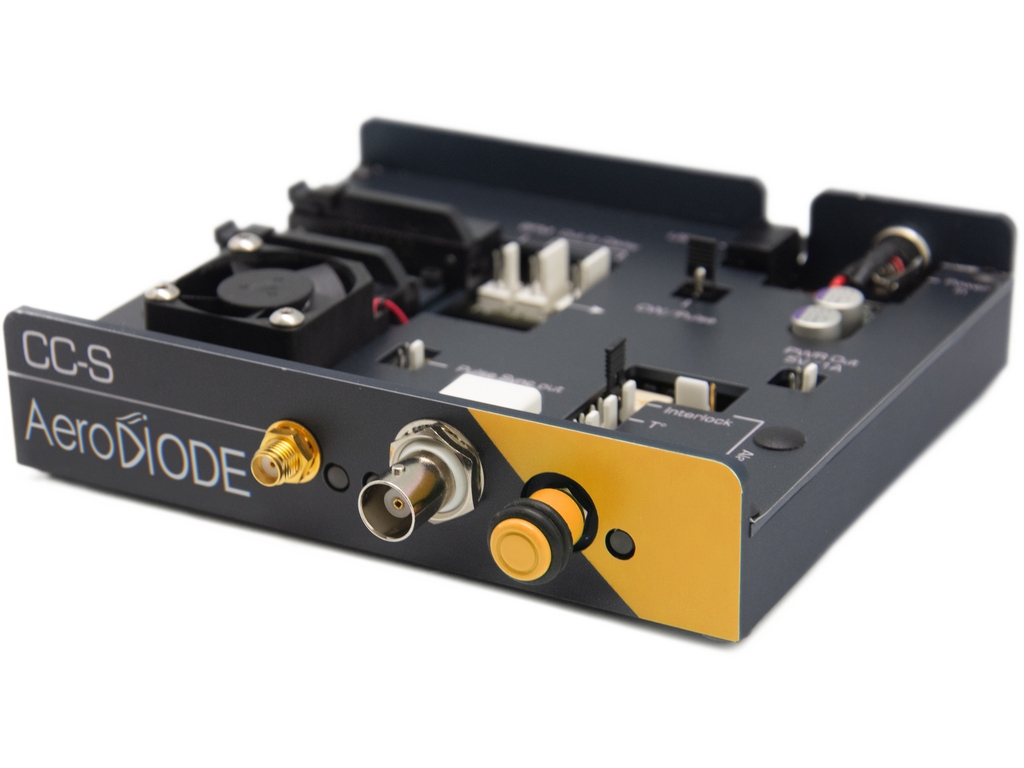

Precision Pulsed Driver for Seed Pumping and Sensing Applications:

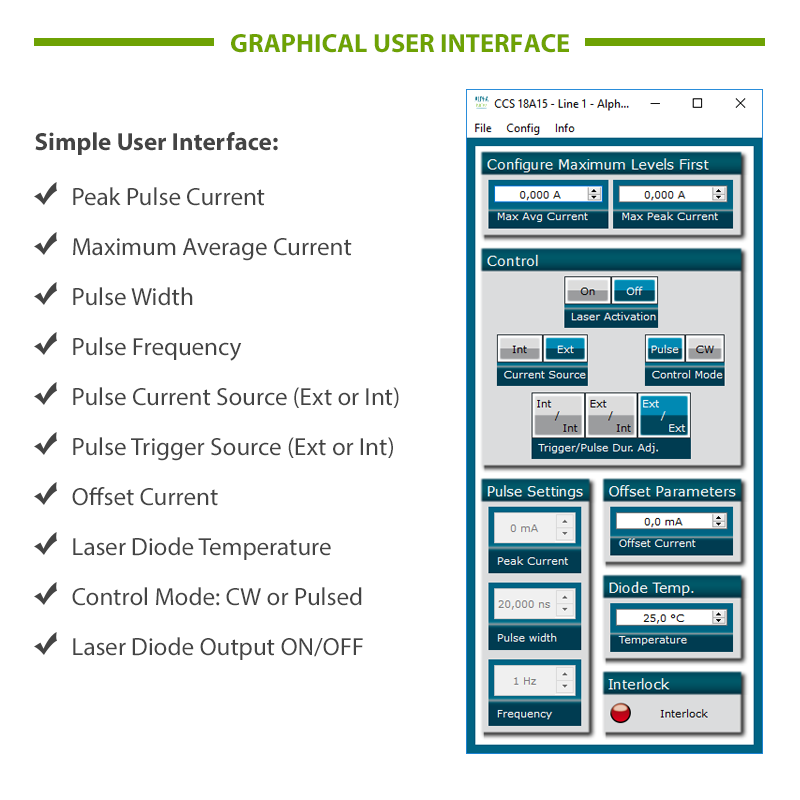

Designed for precision seed pumping and sensing applications, these laser diode pulse control electronics and mounting modules are optimized for single-shot to CW performance with pulse width lengths as narrow as 1 nanoseconds. These complete control and mounting modules deliver precision pulses which are generated internally by an on-board pulse generator, or on demand from your external TTL signal generator. These pulse drivers offer integrated laser diode protection to ensure that your laser is protected at all times. They include an efficient TEC controller which keeps the device under test delivering a highly stable output and protects it from thermal damage. A USB interface and graphical user interface offers the user complete control of the pulsing parameters. The user has control of amplitude, pulse width, rep. rate, temperature set point, current / temperature limits and more.
Flexible Laser Diode Pulse Generation and Output Synchronization:

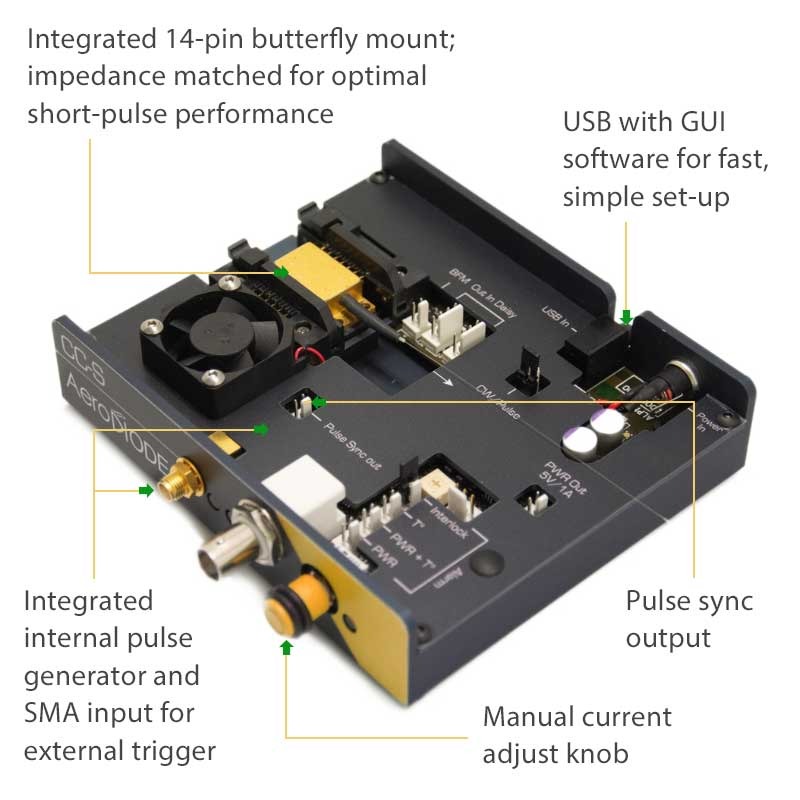

These drivers offer the user the flexibility to choose from three different pulse generation sources. First, they include an internal pulse generator. Second, the user can choose to use an external trigger source. Finally, an external trigger source can be used to activate the internal pulse generator. If the user chooses to provide an external trigger source, the input pulse trigger is a TTL/LVTTL input voltage through an SMA connector. The input voltage range for the external trigger is 0 ~ 3.3 Volts. These units also provide the user with a sync-out port which allows synchronization of the driver to related test equipment. This SMA output port delivers an LVTTL copy of the CC-S logical driving signal.

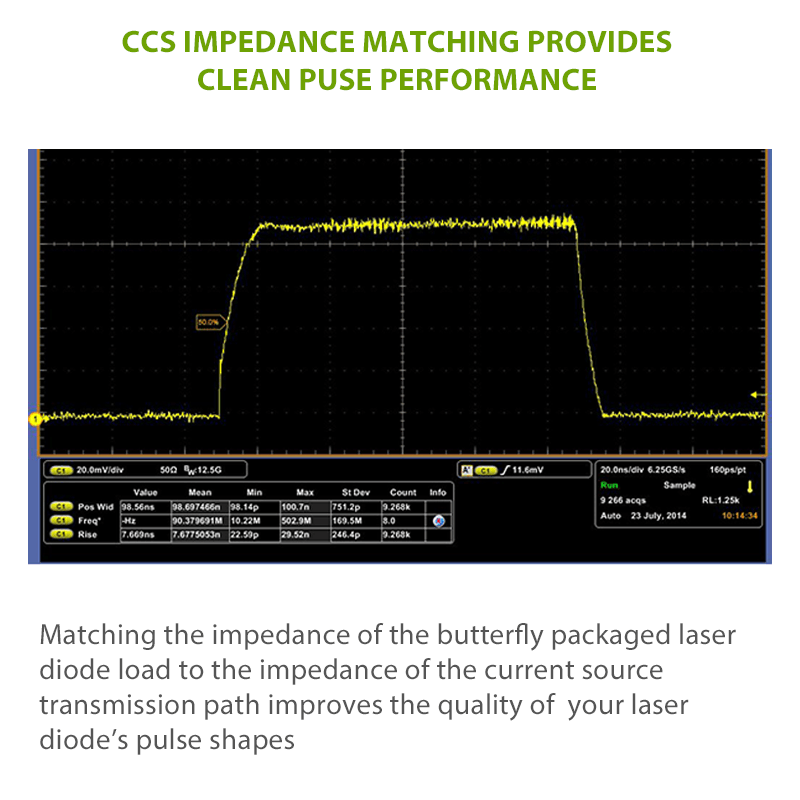

Clean High Speed Pulse Performance ~ Laser Output Fiber Coupled to a Fast Photodetector and Oscilloscope:

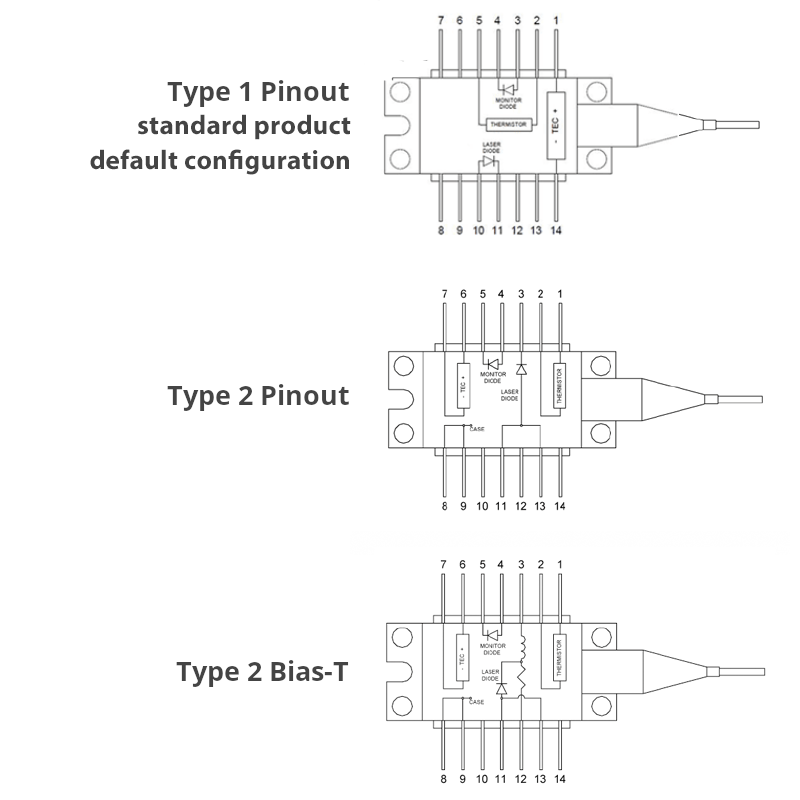

The CCS-PULSE-TX can be ordered for any butterfly package pin configuration. Because impedance matching is a critical factor in delivering clean high speed pulse performance, the CCS-PULSE unit is pre-set for your laser diode's pin configuration. The standard default model is for a type 1 pin configuration. Please refer to the image carousel above to view available pin settings.
Pre-Set Impedance Matching Improves Your Laser Diode's Pulse Performance:
When the impedance from the pulsed current source PCB is not properly matched to the butterfly package pins, significant pulse degradation can occur. This is often seen as distortion of the laser output pulses and/or overshoot of the pulses. The CCS unit is designed to reduce and/or eliminate this pulse degradation by matching the nominal impedance of the butterfly packaged laser diode with the pulse transmission line. Current sources inherently have a high output impedance and laser diodes have very low impedance. The most important requirement of proper impedance matching is matching the impedance of the load to the impedance of the transmission line. The inductance of laser diodes ranges from a few nanohenries to tens of nanohenries. From inductance theory, 𝑑𝑖/𝑑𝑡 is the rate of change in current over a specific period in amperes per second. The voltage increases with the inductance and with the rate of the change of the current. Energy stored in the inductor's magnetic fields during the pulse has to be released when the pulse ends. This creates a voltage, which in turn creates a new current, which in turn creates a new magnetic field on the transmission path. This creates a “loop” which manifests as “ringing” on the pulse waveform and on other distortions to the pulse shape. The CCS current output trasmission path has been carefully designed to match the current source impedance to the butterfly packaged laser diode.
