AEO LDC-003 Diode Laser Controller Module; 3 Amp Current Source with 10W TEC Controller

  • low cost laser diode driver and TEC controller front panel

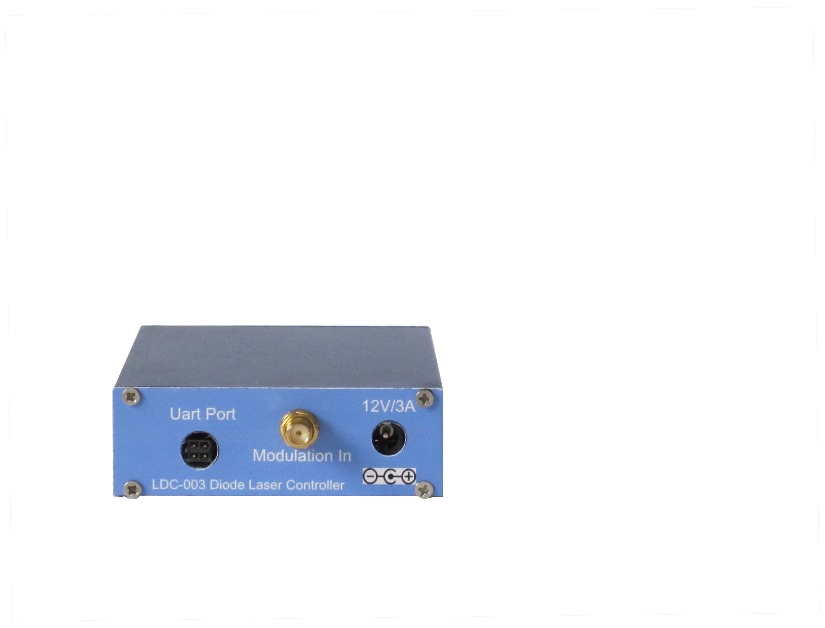

  • low cost laser diode driver and TEC controller module rear panel

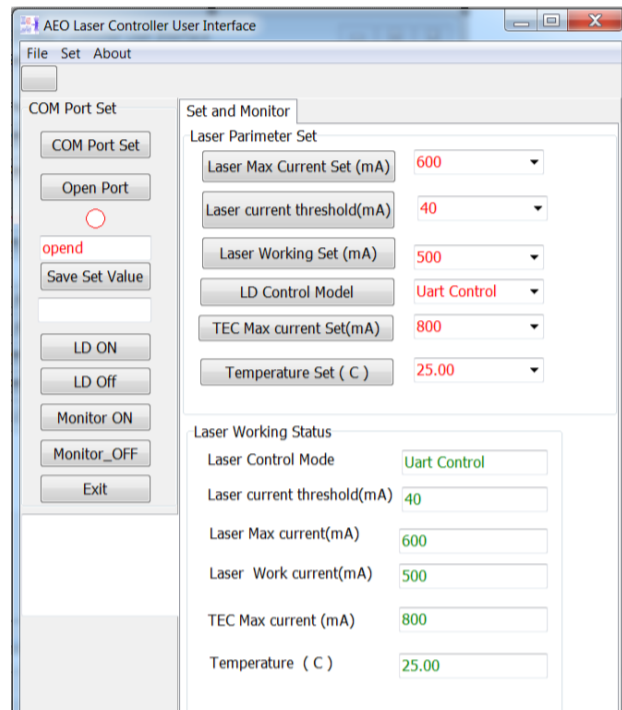

  • driver software for diode lasers

$480.00
sku / item#: RLS/LDC-003
ships: Request a Quote for Current Ship Date

Key Features
  • Compact Size for Easy Integration into a Laser Source Systems
  • Low Noise Universal Diode Laser Power Supply Driver with Constant Current and Temperature Control
  • Easy Current and Temperature Controll via UART Port

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LDC-003
PRICE $480.00
Key Specifications
  • Low Noise and High Stability Constant Current Range: 0 to 3 Amps
  • Analog Modulation Signal Frequency: DC to 100 kHz
  • Temperature Set-Point Rang: 10°C ~ 35°C
  • Excellent Temperature Stability < 0.005 °C
  • Excellent Current Stability ± 0.0 1%
  • Current Noise & Ripple (rms): < 0.01% of full scale
  • Current Set-Point Resolution : 10 uA
  • TEC Controller Output Power: 10 Watts

Product Overview:

The model RLS/AEO-LDC-003 diode laser controller module is a low noise universal diode laser power supply driver with constant current and temperature control. It provides users an easy and economical solution for setting up and controlling a diode laser source. This controller module offers the high performance of more expensive instrument type laser diode controllers at a much more affordable price.

Key Features:
- Low Noise and Highly Stable constant current up to 3A
- Analog modulation signal frequency is up to 100 khz
- Multiple Built-In Laser Diode Protection Features
- Temperature set range up to 10 °C~35°C
- Excellent Temperature Stability < 0.005 °C)
- Excellent current stability ± 0.0 1%
- Widely input DC power supply range, excellent benefit for battery power supply instrument
- Easy control output current and temperature via UART port
- Fast laser light emission turns on/ off through external TTL voltage trigger, meanwhile keeping internal temperature control, maximum laser protection.
- Laser light emission turns on/ off either uses external TTL voltage trigger or Uart serial port
- Linear slow start current ramp to set point
- Reverse voltage transient clamp
- Relay short circuit when laser diode current turned OFF
